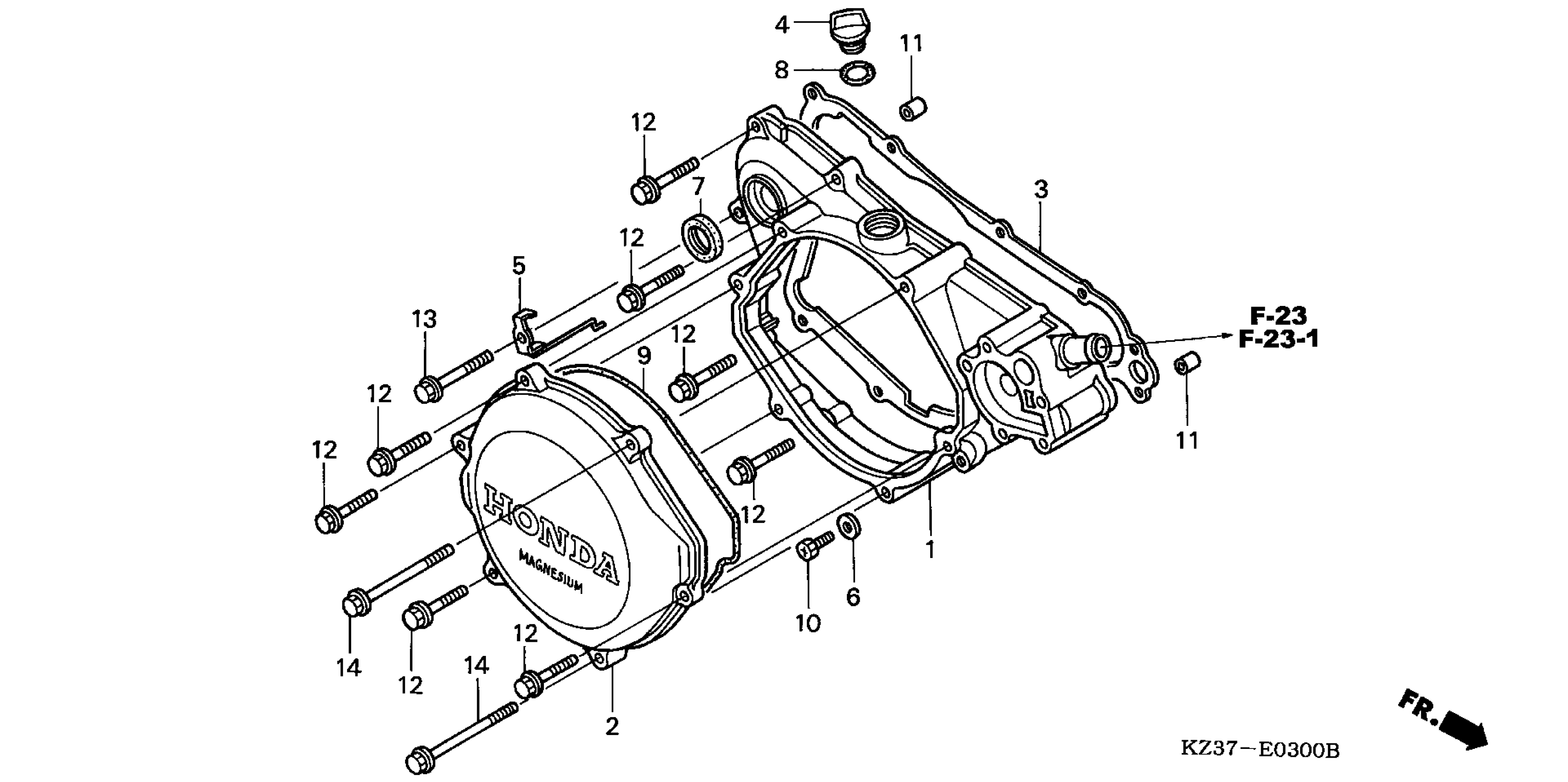

Honda CR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME033-4M800001 TO JH2ME033-4M899999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11341-KZ3-L20

Unavailable

COVER, CLUTCH

11342-KZ3-L20

Unavailable

GASKET, R. CRANKCASE COVER

11395-KZ3-L20

$17.51

CAP, OIL FILLER

15611-KA4-710

$13.22

CLAMP, AIR VENT TUBE

16240-KZ3-L20

Unavailable

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

OIL SEAL (20X28X5)

91204-KF0-003

$6.23

O-RING (18X3)

91307-035-000

$2.75

O-RING, SPECIAL

91311-KZ3-L21

$12.28

BOLT, RECESSED (6X10)

92301-06010-0A

$0.72

PIN, DOWEL (8X14)

94301-08140

$2.62

BOLT, FLANGE (6X28)

96001-06028-00

$2.59

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

BOLT, FLANGE (6X75)

96001-06075-00

$2.06
