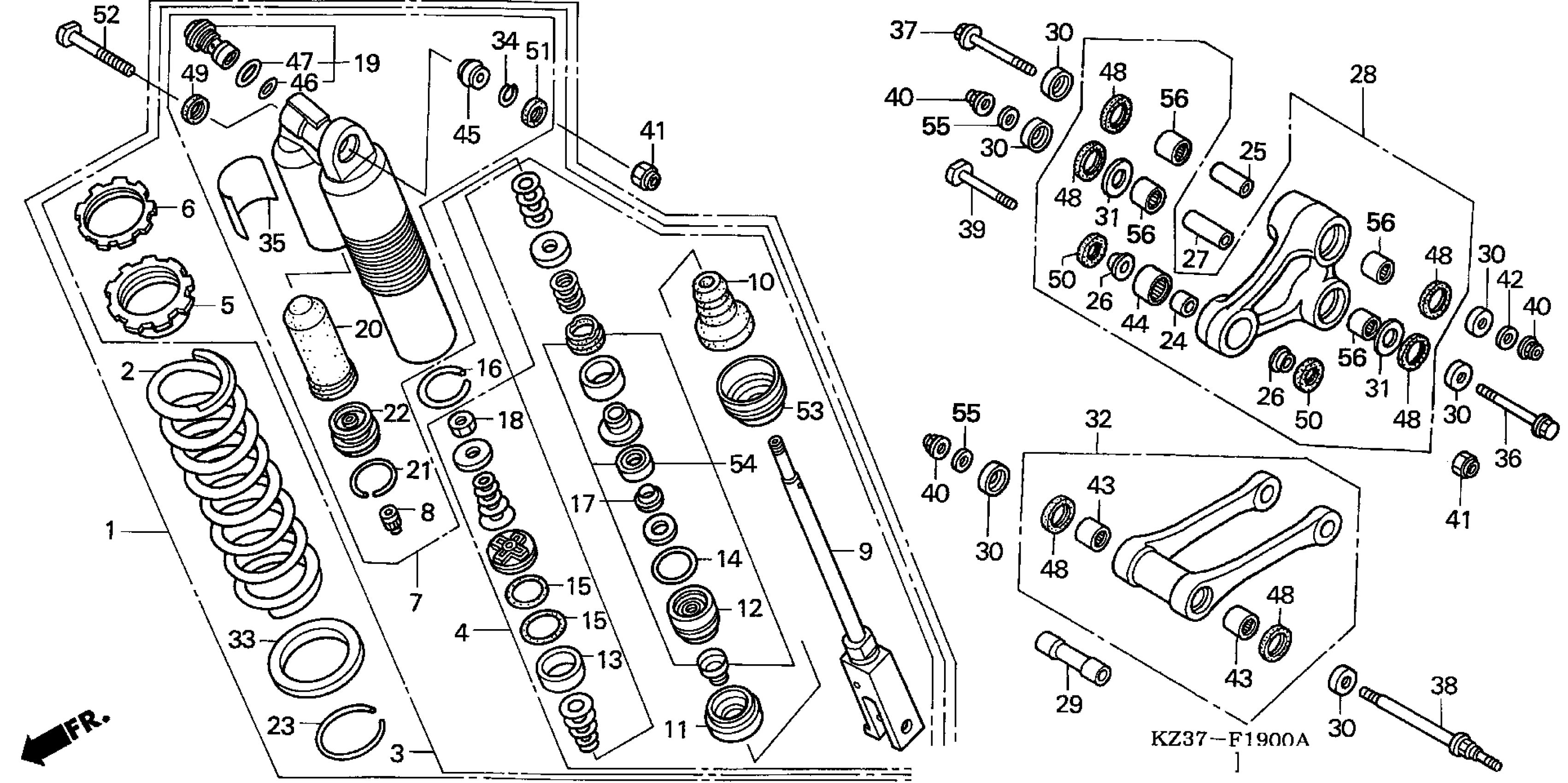

Honda CR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME033-4M800001 TO JH2ME033-4M899999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (SHOWA)

52400-KSK-671

Unavailable

2

SPRING, RR. SHOCK ABSORBER (50.0N/MM,5.1KGF/MM) (SHOWA)

52401-KZ3-J51

$167.00

2

SPRING, RR. SHOCK ABSORBER (48.1N/MM,4.9KGF/MM) (SHOWA) | (Optional).

52402-KZ3-J51

Unavailable

2

SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.3KGF/MM) (SHOWA) | (Optional).

52402-MEB-751

$174.52

2

SPRING, RR. SHOCK ABSORBER (53.9N/MM,5.5KGF/MM) (SHOWA) | (Optional).

52401-MEB-751

Unavailable

3

DAMPER, RR.

52410-KSK-671

$741.31

4

ROD, PISTON (SHOWA)

52421-KSK-671

Unavailable

5

ADJUSTER, SPRING

52422-KZ3-J31

$34.30

6

NUT, ADJUSTER

52423-KZ3-J21

$15.72

7

CASE, DAMPER (SHOWA)

52425-KSK-671

$714.38

8

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

9

ROD

52426-MEN-003

Unavailable

10

RUBBER, STOPPER

52427-MEB-751

$15.72

11

PLATE, END

52428-KZ3-J31

Unavailable

12

CASE, ROD GUIDE

52429-MEN-003

Unavailable

13

RING, PISTON

52431-KZ3-J31

$15.74

14

O-RING (3.5X43.7)

52434-KZ3-J21

$3.72

15

O-RING (42.5X2.0)

52434-KZ3-J31

$3.45

16

RING, STOPPER

52435-KZ3-J21

$2.38

18

NUT, HEX. (12MM)

52438-KA4-741

$2.92

19

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MEN-671

$136.41

20

BLADDER

52451-KZ3-891

$18.54

21

RING, STOPPER

52452-KS7-831

$2.90

22

CAP, CHAMBER

52453-KS7-831

Unavailable

23

RING, STOPPER

52455-KZ3-J21

$5.80

24

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

25

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.71

26

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

27

COLLAR B, CUSHION

52464-KZ4-J20

$6.96

28

ARM SUB-ASSY., CUSHION

52465-KSK-000

Unavailable

29

COLLAR A, CONNECTING ROD

52473-KZ4-J20

$16.15

30

COLLAR, LINK SIDE

52475-KZ4-J20

$6.78

31

WASHER, THRUST

52476-KZ4-J20

$5.19

32

ROD SUB-ASSY., SHOCK CONNECTING

52479-KSK-000

Unavailable

33

SEAT, SPRING

52486-KZ3-J21

$27.00

34

RING, STOPPER

52487-KA4-831

$3.92

35

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

36

BOLT, LINK (12X96)

90130-KZ4-J20

$9.71

37

BOLT, LINK (12X81.5)

90130-KZ4-J40

$9.07

38

BOLT, LINK (12X120)

90131-KZ4-J40

Unavailable

39

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

40

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

41

NUT, U (10MM)

90306-KZ4-711

$3.74

42

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

43

BEARING, NEEDLE (20X26X14)

91053-KZ4-J21

$9.44

44

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

45

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

46

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

47

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

48

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

49

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

50

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17

51

DUST SEAL (16X26X3)

91351-MAC-671

$5.78

52

BOLT, CUSHION (UPPER) (10X53)

90152-MEB-750

$2.92

53

STOPPER, SPRING SEAT

52419-KZ3-J21

$22.46

54

OIL SEAL SET

52436-MEN-671

$24.43

55

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

56

BEARING, NEEDLE (20X26X14)

91053-KZ4-J21

$9.44
