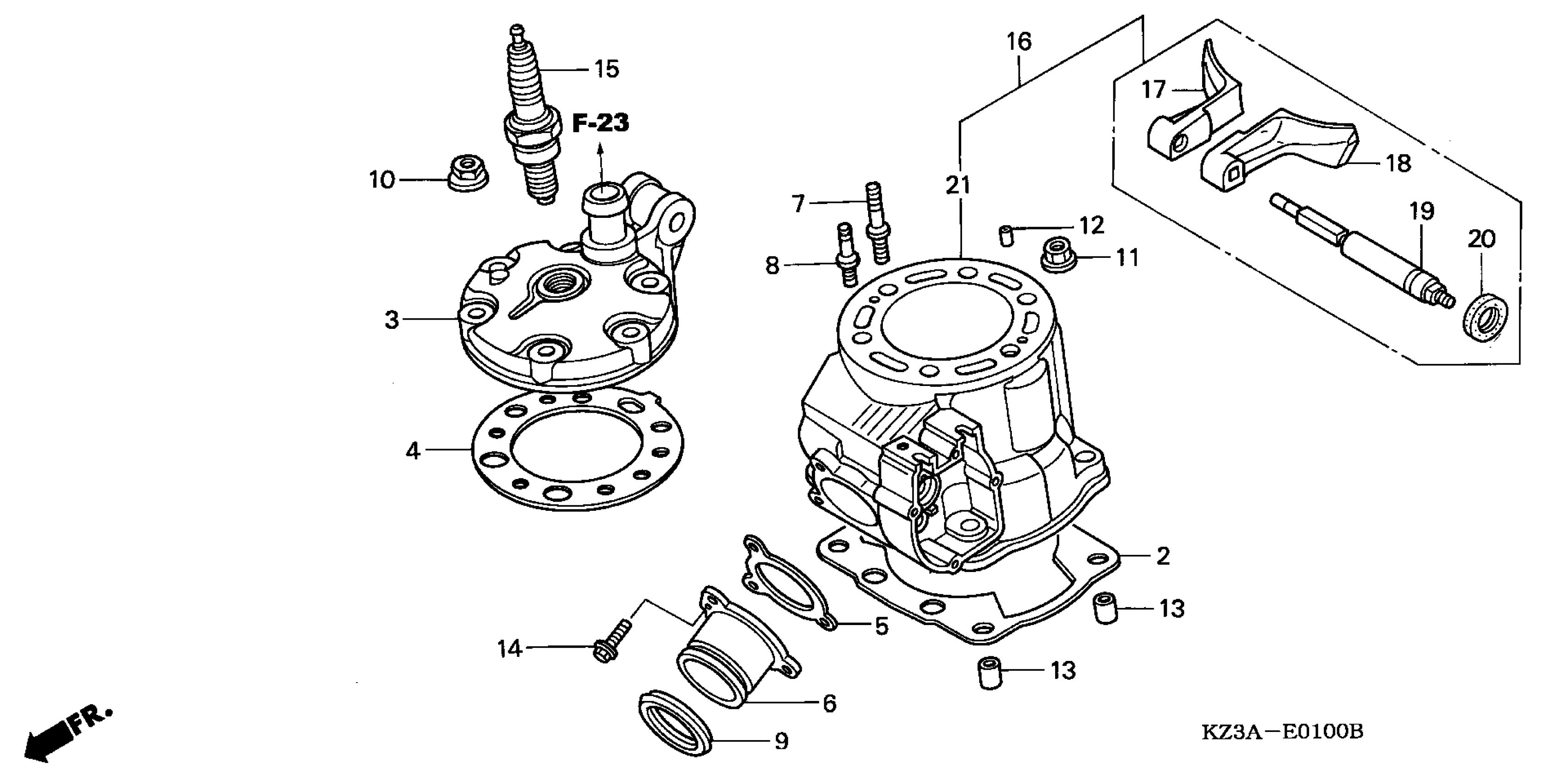

Honda CR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME033-4M800001 TO JH2ME033-4M899999 CYLINDER HEAD ('02-'04) Diagram

GASKET, CYLINDER

12191-KZ3-L20

$10.12

CYLINDER HEAD

12201-KSK-670

Unavailable

GASKET, CYLINDER HEAD

12254-KZ3-L21

$26.09

GASKET, EX. JOINT

18291-KSK-671

Unavailable

JOINT, EX. PIPE

18351-KSK-670

Unavailable

BOLT, SPECIAL STUD (8X37)

90011-KR8-750

$6.84

BOLT, SPECIAL STUD (8X13.5)

90011-KZ3-L20

$3.95

SEAL, EX. JOINT

91302-KZ3-L20

$7.66

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

PIN, DOWEL (6X10)

94301-06100

$2.25

PIN, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

VALVE, R. FLAP

14201-KSK-670

Unavailable

VALVE, L. FLAP

14202-KSK-670

Unavailable

SHAFT A, FLAP VALVE

14211-KZ3-L20

Unavailable

OIL SEAL (10X20X5)

91204-KZ3-L21

$4.26

CYLINDER A

12110-KSK-670

Unavailable

CYLINDER B

12120-KSK-670

Unavailable
