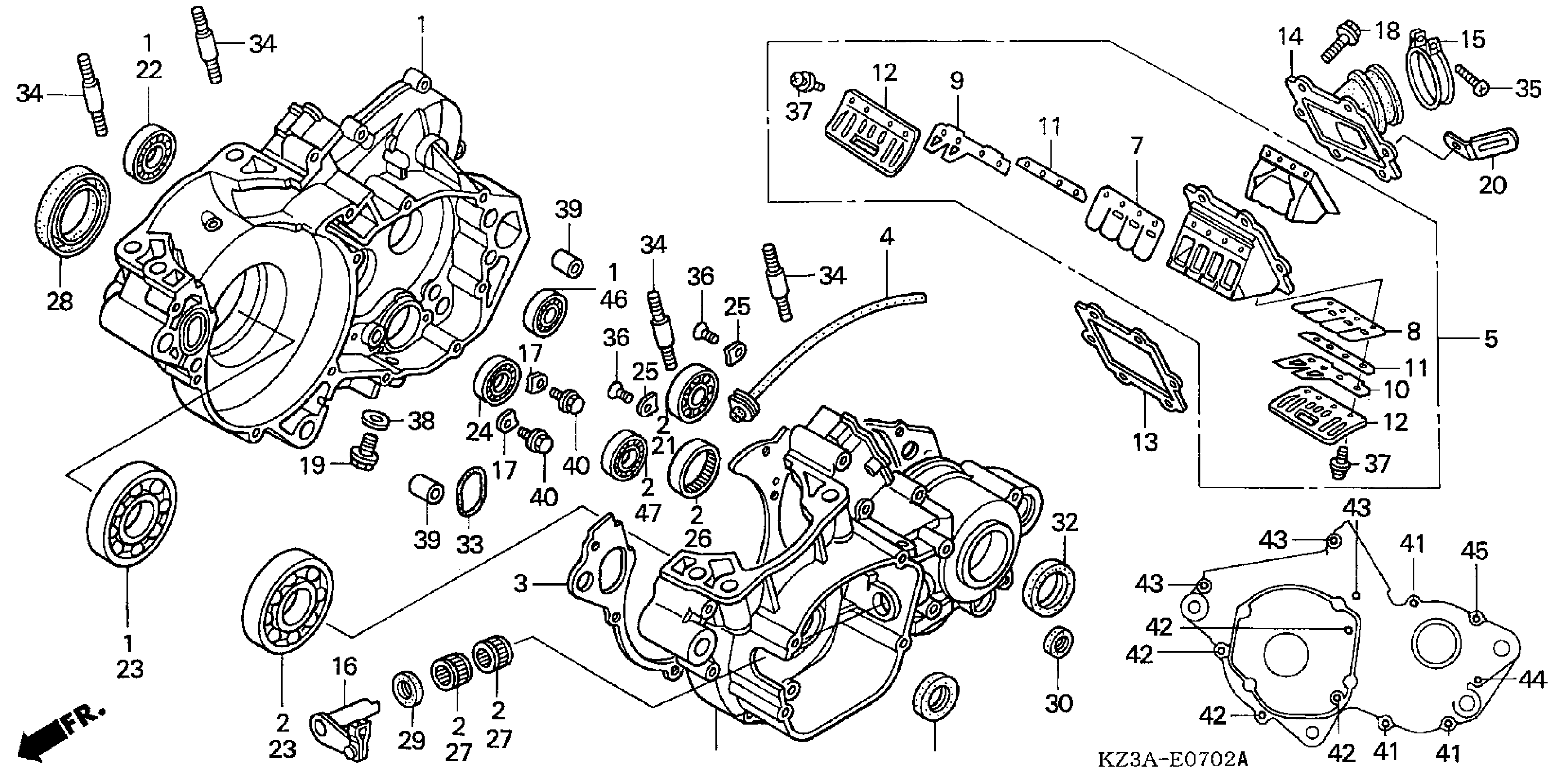

Honda CR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME033-4M800001 TO JH2ME033-4M899999 CRANKCASE ('04) Diagram

#

Description
Price

1

CRANKCASE, R.

04921-KSK-670

Unavailable

2

CRANKCASE, L.

04922-KSK-670

Unavailable

3

GASKET, CRANKCASE

11191-KSK-670

Unavailable

4

TUBE, BREATHER

11211-ML3-910

$8.29

5

VALVE ASSY., REED

14100-KSK-671

Unavailable

7

REED VALVE ONLY (UPPER)

14111-KSK-671

Unavailable

8

REED VALVE ONLY (LOWER)

14112-KSK-671

Unavailable

9

REED VALVE ONLY, SUB (UPPER)

14113-KSK-671

Unavailable

10

REED VALVE ONLY, SUB (LOWER)

14114-KSK-671

Unavailable

11

SPACER, REED VALVE

14115-KSK-671

$7.13

12

STOPPER, REED VALVE

14121-KZ3-L31

Unavailable

13

GASKET, REED VALVE

14132-KZ3-L20

$12.29

14

INSULATOR, CARBURETOR

16221-KSK-670

Unavailable

15

BAND, INSULATOR

16223-KA5-690

Unavailable

16

LIFTER, CLUTCH

22810-KS7-000

$66.79

17

PLATE A, BEARING SETTING

23521-KW3-000

$4.26

18

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.61

19

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.20

20

CLIP (4X50)

90601-KJ9-000

$2.95

21

BEARING, RADIAL BALL (24X56X14) ( NTN)

91001-ML3-873

$17.37

22

BEARING, RADIAL BALL (25X52X13.5)

91002-KZ3-L21

$14.12

23

BEARING, RADIAL BALL This part replaces 91003-KA4-771.

91008-KAE-731

$44.20

23

BEARING, RADIAL BALL This part replaces 91008-KAE-000.

91008-KAE-731

$44.20

23

BEARING, RADIAL BALL

91008-KAE-731

$44.20

24

BEARING, RADIAL BALL (6905U)

91004-KZ3-L11

$15.34

25

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.66

26

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.41

27

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

27

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

28

OIL SEAL (38X58X11) (NIPPON)

91201-KA4-004

$18.70

29

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.52

30

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

30

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.65

30

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

31

OIL SEAL (20X37X7)

91205-KZ3-861

$12.31

32

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17

33

O-RING (37.2X27)

91301-KZ3-L20

Unavailable

34

BOLT, STUD (10X40)

92900-10040-0B

$7.36

35

SCREW, PAN (5X25)

93500-05025-0A

$1.19

36

SCREW, FLAT (6X12)

93600-06012-0A

$0.91

37

SCREW-WASHER (3X8)

93892-03008-08

$1.06

38

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

39

PIN, DOWEL (14X20)

94301-14200

$2.80

40

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

41

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

42

BOLT, FLANGE (6X50)

96001-06050-00

$2.54

43

BOLT, FLANGE (6X60)

96001-06060-00

$2.54

44

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

45

BOLT, FLANGE (6X80)

96001-06080-00

$2.04

46

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.02

47

BEARING, RADIAL BALL (6203U) | Use from Engine SN 6606229

91001-KSK-671

$10.32

47

BEARING, RADIAL BALL (6203U) | Use up to Engine SN 6606228

96140-62030-00

$17.12
