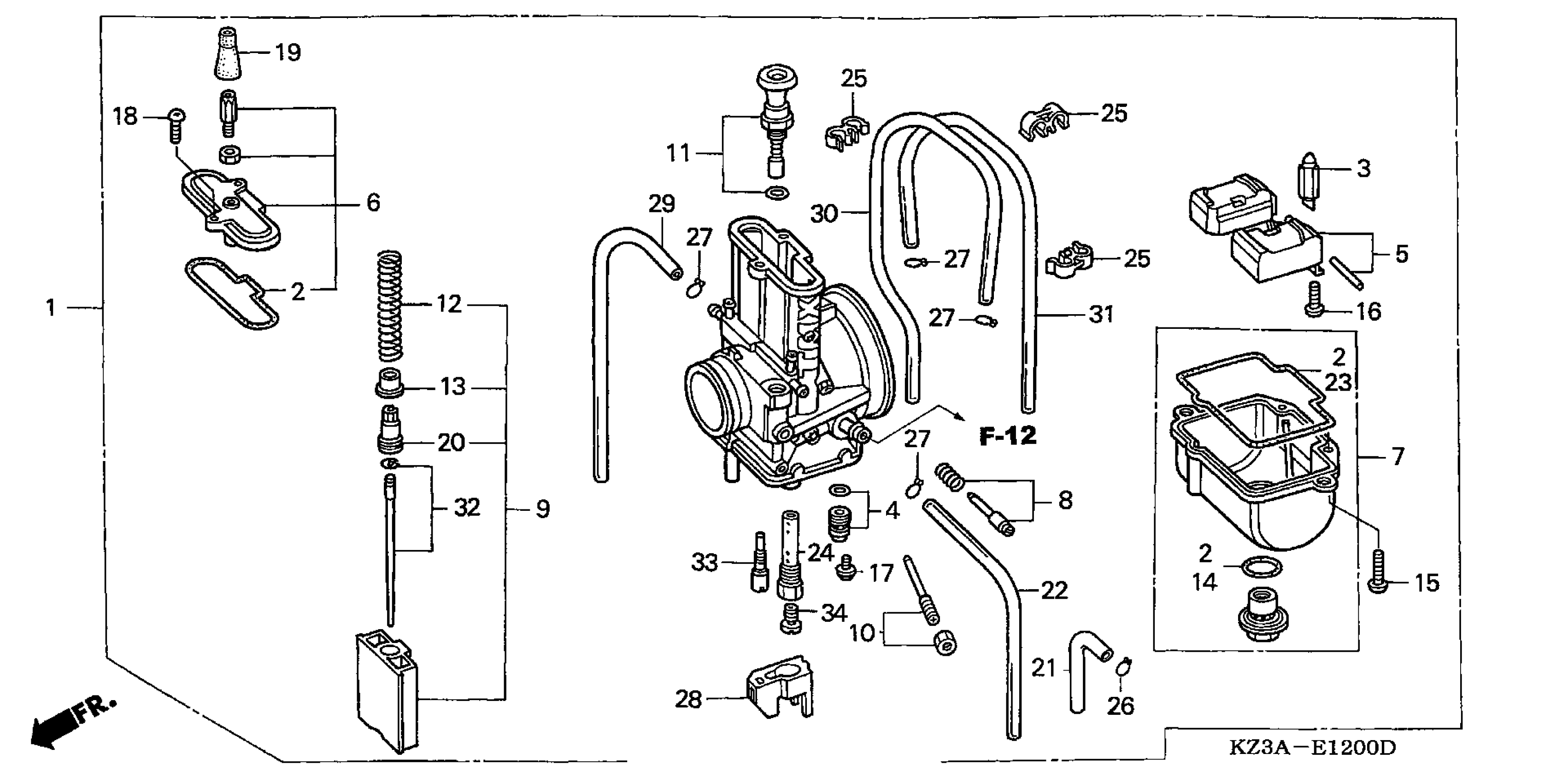

Honda CR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME033-3M500001 TO JH2ME033-3M599999 CARBURETOR ('02-'03) Diagram

#

Description
Price

1

CARBURETOR ASSY. (TMX11C A) This part replaces 16100-KZ3-L30.

16100-KZ3-L32

Unavailable

1

CARBURETOR ASSY. (TMX11C A)

16100-KZ3-L32

Unavailable

2

GASKET SET

16010-KZ4-A92

$21.17

3

VALVE, FLOAT

16011-KZ4-A92

$42.36

4

VALVE SET, SEAT

16012-KZ4-A92

$7.77

5

FLOAT SET

16013-KZ4-A92

Unavailable

6

TOP SET

16014-KZ3-L12

Unavailable

7

CHAMBER SET, FLOAT

16015-KZ3-L22

Unavailable

8

SCREW SET A

16016-KZ4-A92

Unavailable

9

VALVE SET, THROTTLE

16022-KZ3-L32

Unavailable

10

SCREW SET B

16028-KZ4-A92

$6.72

11

VALVE SET, STARTER

16046-KZ4-A92

Unavailable

12

SPRING, COMPRESSION COIL

16050-KZ4-A92

Unavailable

13

COLLAR, SPRING SETTING

16066-KZ4-A92

Unavailable

14

O-RING

16075-KZ4-A92

Unavailable

15

SCREW, PAN

16080-KZ4-A92

$1.54

16

SCREW, PAN

16081-KZ4-A92

Unavailable

17

SCREW

16082-KZ4-A92

Unavailable

18

SCREW-WASHER

16083-KZ3-L12

$1.59

19

CAP, CABLE SEALING

16118-KZ4-A92

$4.75

20

HOLDER, CABLE

16137-KZ4-A92

Unavailable

21

TUBE, OVERFLOW

16143-KZ4-A92

$2.20

22

TUBE, AIR VENT

16144-KZ3-L12

Unavailable

23

GASKET, FLOAT CHAMBER

16163-KZ4-A92

Unavailable

24

NOZZLE, MAIN

16165-KZ3-L12

Unavailable

25

BINDER

16179-KZ4-A92

$4.26

26

CLIP, TUBE

16181-KZ4-A92

$1.49

27

CLIP, TUBE

16182-KZ4-A92

$1.49

28

PLATE, BUFFER

16185-KZ4-A92

Unavailable

29

TUBE, AIR VENT

16197-KZ3-L22

Unavailable

30

TUBE, AIR VENT

16198-KZ4-L22

$8.66

31

TUBE, AIR VENT

16199-KZ3-L12

Unavailable

32

NEEDLE SET, JET (6BHY38-73)

16204-KZ3-L32

Unavailable

33

JET, SLOW (#30)

99133-KZ3-0300

$11.41

33

JET, SLOW (#32.5) | (Optional).

99133-KZ3-0320

Unavailable

33

JET, SLOW (#35) | (Optional).

99133-KZ3-0350

Unavailable

33

JET, SLOW (#37.5) | (Optional).

99133-KZ3-0370

Unavailable

33

JET, SLOW (#27.5) | (Optional).

99133-KZ4-0270

Unavailable

33

JET, SLOW (#25) | (Optional).

99133-KZ3-0250

Unavailable

33

JET, SLOW (#40) | (Optional).

99133-KZ3-0400

Unavailable

34

JET, MAIN (#420)

99143-KZ4-4200

$14.51
