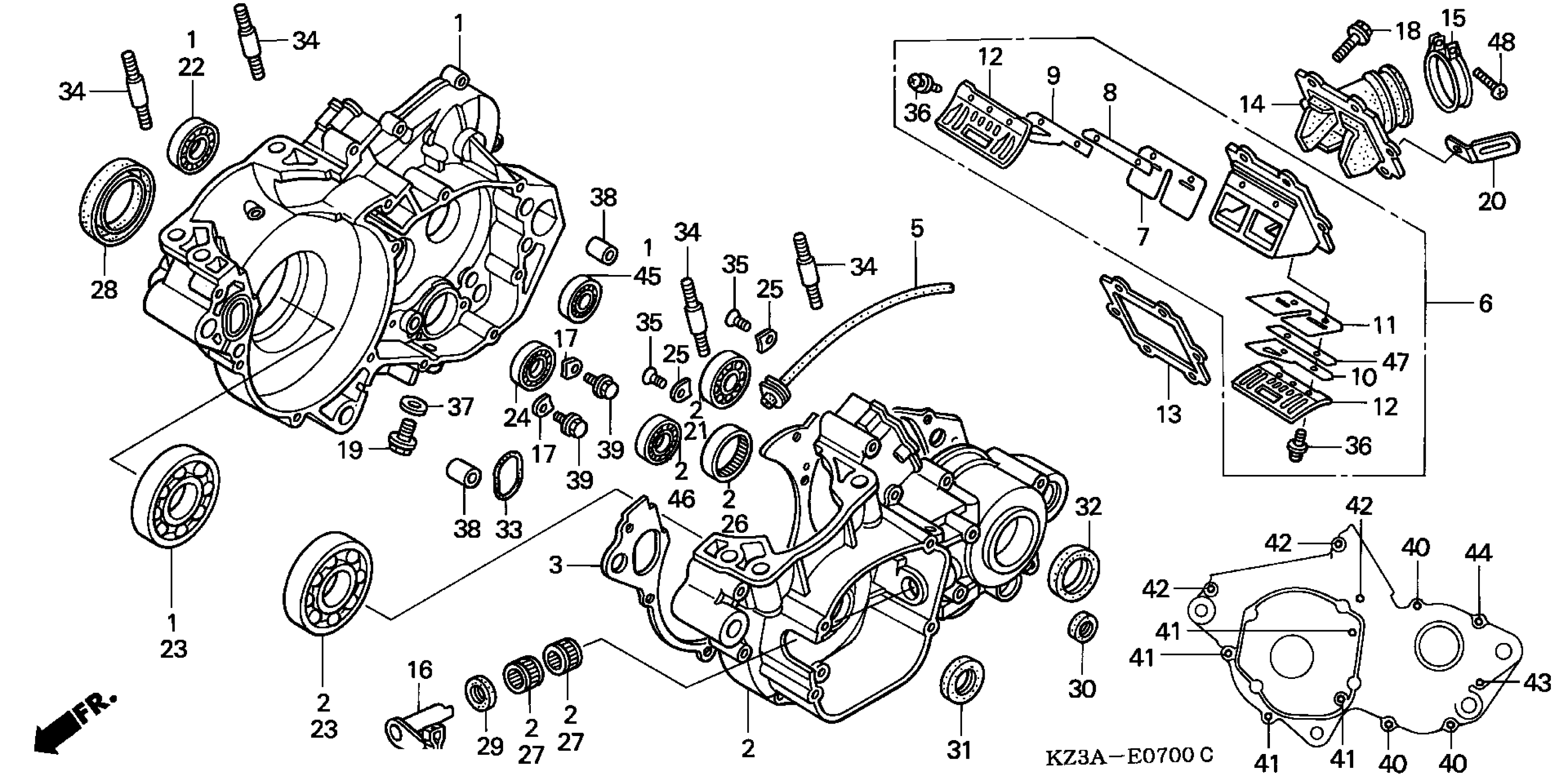

Honda CR250RA (02) MOTORCYCLE, JPN, VIN# JH2ME033-2M400001 TO JH2ME033-2M499999 CRANKCASE ('02) Diagram

#

Description
Price

1

CRANKCASE, R.

04921-KZ3-L20

Unavailable

2

CRANKCASE, L. This part replaces 04922-KZ3-L20.

04922-KZ3-L21

Unavailable

2

CRANKCASE, L.

04922-KZ3-L21

Unavailable

3

GASKET, CRANKCASE

11191-KZ3-L20

Unavailable

5

TUBE, BREATHER

11211-ML3-910

$9.00

6

VALVE ASSY., REED | Use up to Engine SN 6405892 This part replaces 14100-KZ3-L21.

14100-KZ3-L22

$120.20

6

VALVE ASSY., REED | Use from Engine SN 6405893

14100-KZ3-L22

$120.20

7

REED VALVE ONLY (UPPER)

14111-KZ3-L21

$11.92

8

SPACER, REED VALVE This part replaces 14112-KZ3-L21.

14112-KZ3-L22

Unavailable

9

REED VALVE ONLY, SUB (UPPER)

14113-KZ3-L21

Unavailable

10

REED VALVE ONLY, SUB (LOWER) | Use up to Engine SN 6405892 This part replaces 14114-KZ3-L21.

14114-KZ3-L22

Unavailable

10

REED VALVE ONLY, SUB (LOWER) | Use from Engine SN 6405893

14114-KZ3-L22

Unavailable

11

REED VALVE ONLY (LOWER)

14115-KZ3-L21

Unavailable

12

STOPPER, REED VALVE

14121-KZ3-L21

Unavailable

13

GASKET, REED VALVE

14132-KZ3-L20

$12.55

14

INSULATOR, CARBURETOR

16221-KZ3-L20

Unavailable

15

BAND, INSULATOR

16223-KA5-690

$17.05

16

LIFTER, CLUTCH

22810-KS7-000

$72.75

17

PLATE A, BEARING SETTING

23521-KW3-000

$4.46

18

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

19

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

20

CLIP (4X50)

90601-KJ9-000

$3.08

21

BEARING, RADIAL BALL (24X56X14) ( NTN)

91001-ML3-873

$18.92

22

BEARING, RADIAL BALL (25X52X13.5)

91002-KZ3-L21

$15.38

23

BEARING, RADIAL BALL This part replaces 91003-KA4-771.

91008-KAE-731

$48.16

23

BEARING, RADIAL BALL This part replaces 91008-KAE-000.

91008-KAE-731

$48.16

23

BEARING, RADIAL BALL

91008-KAE-731

$48.16

24

BEARING, RADIAL BALL (6905U)

91004-KZ3-L11

$15.66

25

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

26

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

27

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

27

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

28

OIL SEAL (38X58X11) (NIPPON)

91201-KA4-004

$20.36

29

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.67

30

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

30

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.81

30

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

31

OIL SEAL (20X37X7)

91205-KZ3-861

$13.41

32

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65

33

O-RING (37.2X27)

91301-KZ3-L20

Unavailable

34

BOLT, STUD (10X40)

92900-10040-0B

$7.95

35

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

36

SCREW-WASHER (3X8)

93892-03008-08

$1.49

37

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

38

PIN, DOWEL (14X20)

94301-14200

$2.28

39

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

40

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

41

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

42

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

43

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

44

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

45

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

46

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59

47

SPACER, REED VALVE | Use up to Engine SN 6405892 This part replaces 14112-KZ3-L21.

14112-KZ3-L22

Unavailable

47

SPACER, REED VALVE (LOWER) | Use from Engine SN 6405893

14116-KZ3-L21

Unavailable

48

SCREW, PAN (5X25)

93500-05025-0A

$1.49
