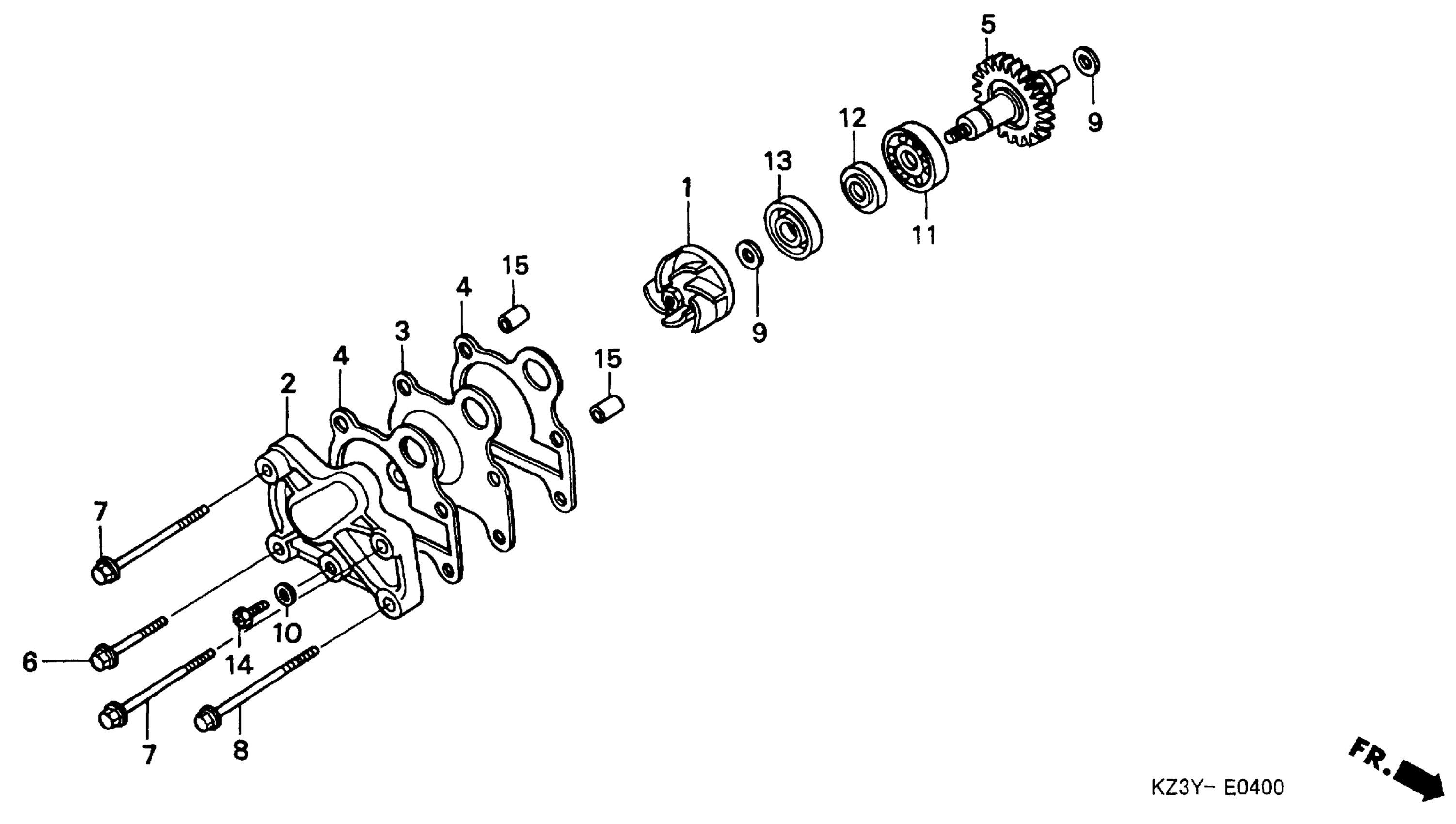

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KA3-740

$63.20

COVER, WATER PUMP

19221-KZ3-B10

Unavailable

SEPARATOR, WATER PUMP

19222-KZ3-860

$12.44

GASKET, WATER PUMP COVER

19229-KZ3-880

$6.91

GEAR, WATER PUMP

19240-KZ3-J20

$102.23

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.54

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25
