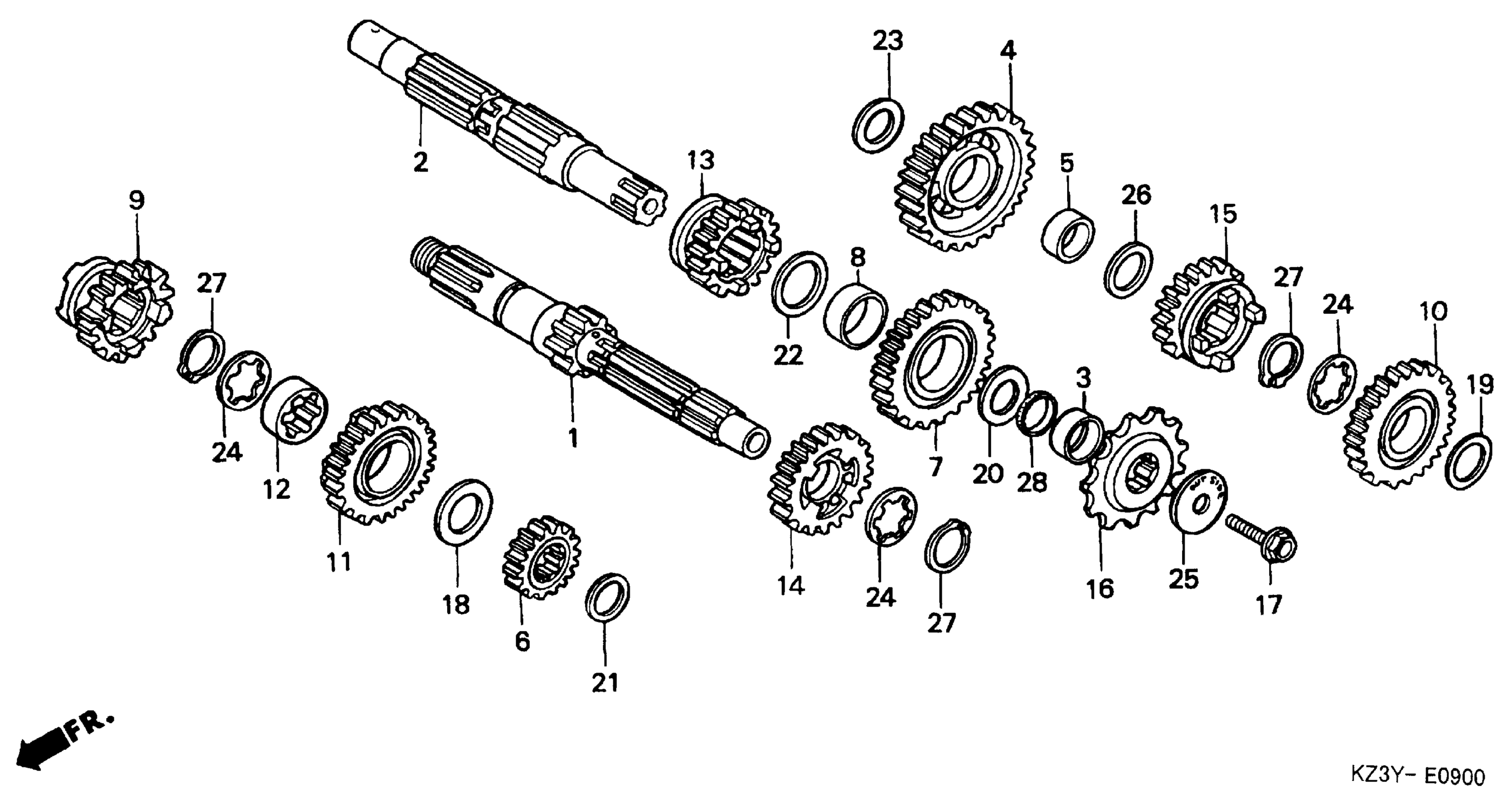

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, MAIN (15T)

23210-KZ3-J20

Unavailable

2

COUNTERSHAFT

23221-KZ3-J00

Unavailable

3

COLLAR, COUNTERSHAFT This part replaces 23225-ML3-680.

23225-MEN-730

$14.95

4

GEAR, COUNTERSHAFT LOW (27T)

23411-KS7-000

Unavailable

5

COLLAR, COUNTERSHAFT LOW GEAR

23412-KA4-740

Unavailable

6

GEAR, MAINSHAFT SECOND (17T)

23421-KA4-740

Unavailable

7

GEAR, COUNTERSHAFT SECOND (25T) This part replaces 23431-KS7-830.

23431-KZ3-L30

$72.85

8

COLLAR, COUNTERSHAFT SECOND GEAR

23432-ML3-870

$18.66

9

GEAR, MAINSHAFT THIRD (19T)

23441-KZ3-J20

Unavailable

10

GEAR, COUNTERSHAFT THIRD (23T)

23451-KS7-830

Unavailable

11

GEAR, MAINSHAFT FOURTH (21T) This part replaces 23461-KA4-770.

23461-KZ3-L20

$95.56

12

COLLAR, MAINSHAFT FOURTH GEAR

23462-KA4-000

Unavailable

13

GEAR, COUNTERSHAFT FOURTH (21T)

23471-KZ3-860

Unavailable

14

GEAR, MAINSHAFT FIFTH (23T)

23481-KS7-000

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (20T)

23491-KZ3-000

Unavailable

16

SPROCKET, DRIVE (13T) This part replaces 23802-KZ3-860.

23802-MEN-730

$39.50

17

BOLT, UBS (8X33)

90112-413-000

$3.85

18

WASHER, THRUST (25MM)

90421-961-000

$5.58

19

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

20

WASHER, THRUST (24.1X36X1.5)

90445-ML3-871

$5.12

21

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

22

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.85

23

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

24

WASHER, SPLINE (25MM)

90463-430-000

$5.89

25

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

26

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

27

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

28

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.67
