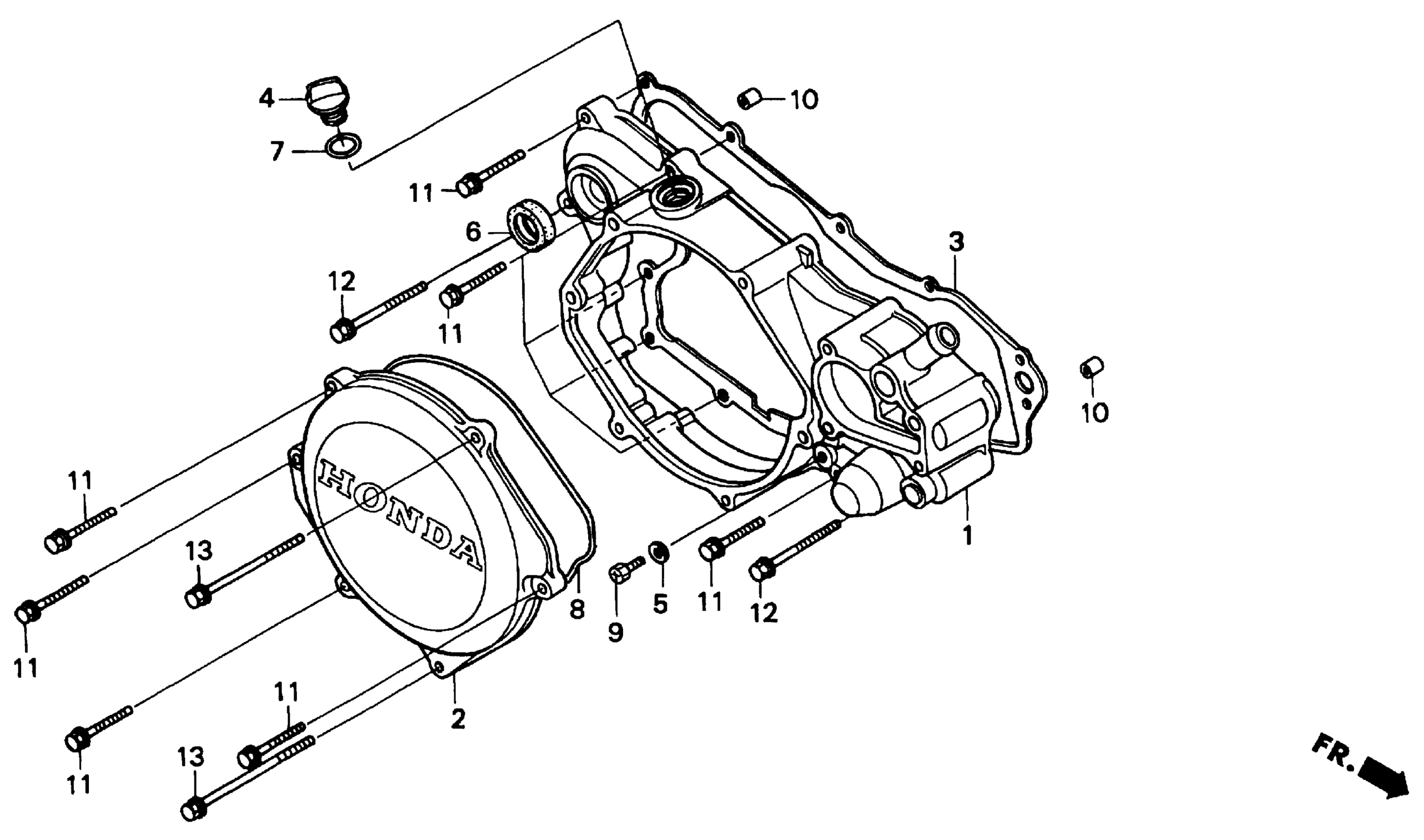

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11341-KZ3-J10

Unavailable

COVER, CLUTCH

11342-KZ3-B10

Unavailable

GASKET, R. CRANKCASE COVER

11395-KZ3-880

$20.52

CAP, OIL FILLER

15611-KA4-710

$14.40

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (18X3)

91307-035-000

$2.92

O-RING, SPECIAL

91311-KS7-701

$9.54

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
