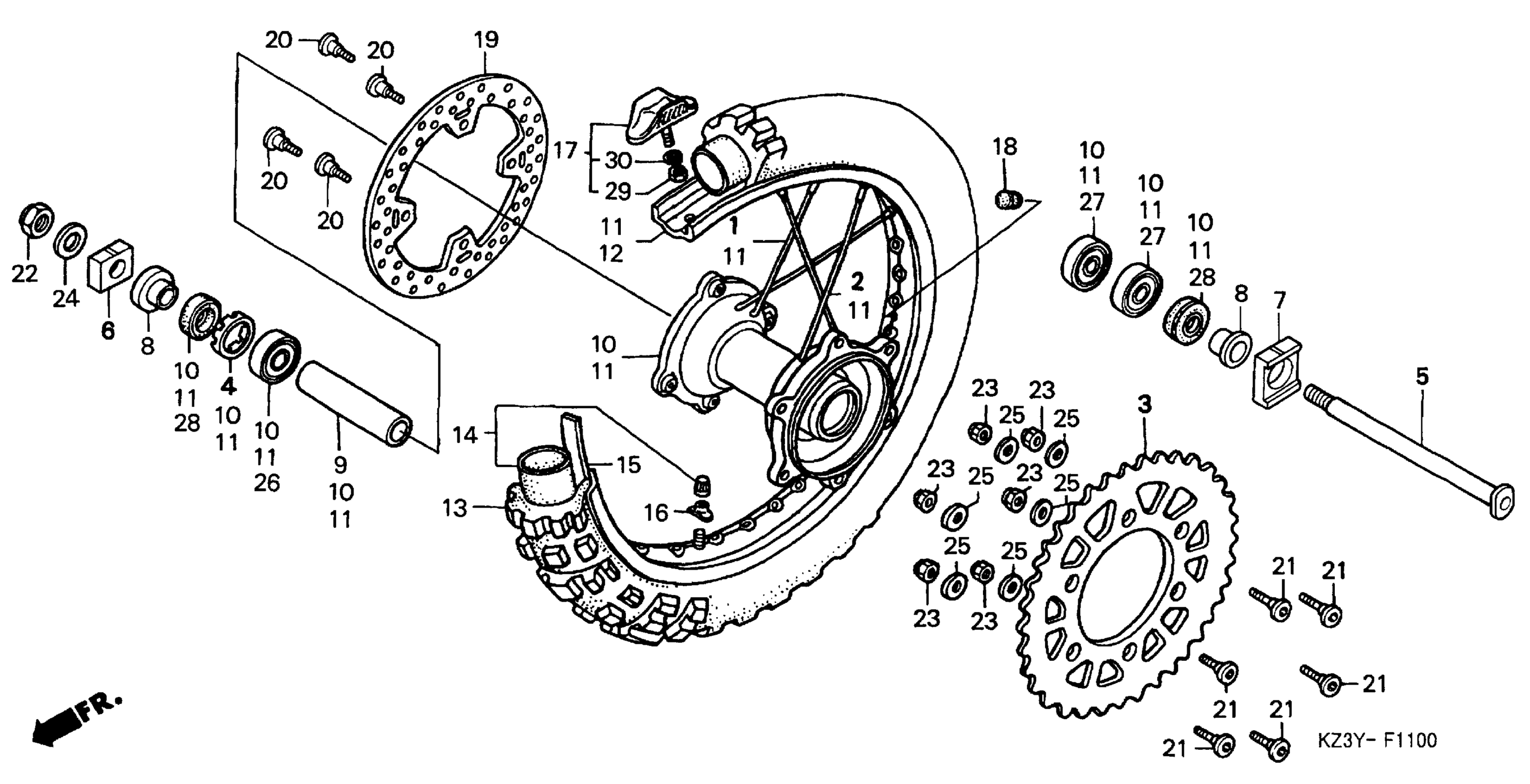

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET A, RR. (210.00MM)

06420-KZ4-B00

$5.37

2

SPOKE SET B, RR. (207.0MM)

06421-KZ4-B00

$5.37

3

SPROCKET, FINAL DRIVEN (49T) | (Optional).

41201-KZ4-B00

Unavailable

3

SPROCKET, FINAL DRIVEN (51T) | (Optional). This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

3

SPROCKET, FINAL DRIVEN (50T)

41203-KZ3-J20

$110.41

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

5

AXLE, RR. WHEEL This part replaces 42301-KZ4-J20.

42301-KZ4-J40

$52.11

5

AXLE, RR. WHEEL

42301-KZ4-J40

$52.11

6

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

7

COLLAR, L. RR. AXLE

42305-KZ4-J20

Unavailable

8

COLLAR, RR. WHEEL SIDE

42311-KZ4-J20

$26.43

9

COLLAR, RR. WHEEL DISTANCE

42620-KZ4-J20

$27.72

10

HUB SUB-ASSY., RR.

42635-KZ4-J20

Unavailable

11

WHEEL SUB-ASSY., RR.

42650-KZ3-J20

Unavailable

12

RIM, RR. WHEEL (2.15X19) (RK EXCEL)

42701-KZ3-B01

Unavailable

13

TIRE, RR. (110/90-19 62M D752) (DUNLOP)

42711-KZ3-611

Unavailable

14

TUBE, TIRE (DUNLOP)

42712-KZ3-611

$42.74

15

FLAP, TIRE (DUNLOP)

42713-KZ3-611

$5.90

16

CAP, VALVE

42714-KA3-710

$10.46

17

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

18

CAP, RIM HOLE

42717-329-000

$4.21

19

DISK, RR. BRAKE

43351-KZ3-B00

Unavailable

20

BOLT, DISK (8X22)

90105-MK5-010

$4.94

21

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

22

NUT, U (22MM)

90305-KZ4-J20

$8.96

23

NUT, U (8MM)

90309-ML3-791

$4.35

24

WASHER (22X35X2)

90401-KZ4-J20

$2.89

25

WASHER (8MM)

90465-MC4-000

$2.51

26

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

27

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

28

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49
