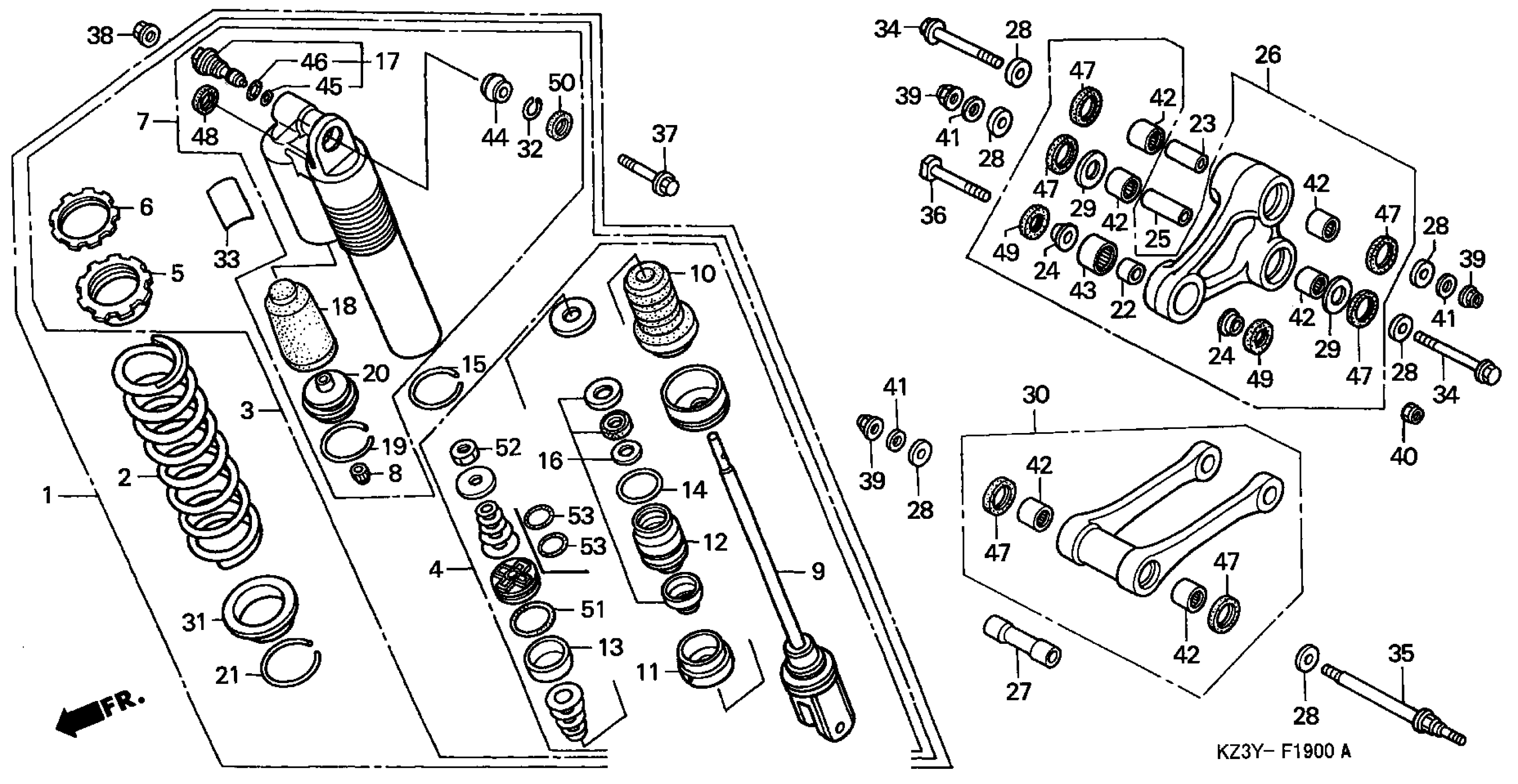

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (SHOWA)

52400-KZ3-L11

Unavailable

2

SPRING, RR. SHOCK ABSORBER (48N/MM,4.9KGF/MM) (SHOWA)

52401-KZ3-J31

Unavailable

2

SPRING, RR. SHOCK ABSORBER (4.7KGF/MM) | (Optional).

52402-KZ3-J31

Unavailable

2

SPRING, RR. SHOCK ABSORBER (50N/MM,5.1KGF/MM) | (Optional).

52403-KZ3-J31

Unavailable

2

SPRING, RR. SHOCK ABSORBER (52N/MM,5.3KGF/MM) | (Optional).

52404-KZ3-J31

Unavailable

3

DAMPER, RR. (SHOWA)

52410-KZ3-L11

Unavailable

4

ROD, PISTON

52421-KZ3-L11

Unavailable

5

ADJUSTER, SPRING

52422-KZ3-J31

$34.30

6

NUT, ADJUSTER

52423-KZ3-J21

$15.72

7

CASE, DAMPER

52425-KZ3-A91

Unavailable

8

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

9

ROD

52426-KZ3-J31

Unavailable

10

RUBBER, STOPPER

52427-KZ3-891

$19.01

11

PLATE, END

52428-KZ3-J31

Unavailable

12

CASE, ROD GUIDE

52429-KZ3-J21

Unavailable

13

RING, PISTON

52431-KZ3-J31

$15.74

14

O-RING (3.5X43.7)

52434-KZ3-J21

$3.72

15

RING, STOPPER

52435-KZ3-J21

$2.38

16

OIL SEAL SET

52436-KZ3-305

$45.82

17

ADJUSTER, COMPRESSION DAMPING FORCE

52440-KZ3-A91

Unavailable

18

BLADDER

52451-KZ3-891

$18.54

19

RING, STOPPER

52452-KS7-831

$2.90

20

CAP, CHAMBER

52453-KS7-831

Unavailable

21

RING, STOPPER

52455-KZ3-J21

$5.80

22

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

23

COLLAR C, CUSHION ARM

52463-KZ4-J20

Unavailable

24

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

25

COLLAR B, CUSHION

52464-KZ4-J20

$6.96

26

ARM SUB-ASSY., CUSHION

52465-KZ4-J20

Unavailable

27

COLLAR A, CONNECTING ROD

52473-KZ4-J20

$16.15

28

COLLAR, LINK SIDE

52475-KZ4-J20

$6.78

29

WASHER, THRUST

52476-KZ4-J20

$5.19

30

ROD SUB-ASSY., SHOCK CONNECTING

52479-KZ4-J20

Unavailable

31

SEAT, SPRING

52486-KZ3-J21

$27.00

32

RING, STOPPER

52487-KA4-831

$3.92

33

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

34

BOLT, LINK (12X96)

90130-KZ4-J20

$9.71

35

BOLT, LINK (12X132)

90131-KZ4-J20

Unavailable

36

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

37

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

38

NUT, U (10MM)

90304-GE8-003

$3.67

39

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

40

NUT, U (10MM)

90306-KZ4-711

$3.74

41

WASHER, PLAIN (12MM)

90504-SF4-000

$6.45

42

BEARING, NEEDLE (20X26X14)

91053-KZ4-J21

$9.44

43

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

44

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

45

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

46

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

47

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

48

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

49

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17

50

DUST SEAL (16X26X3)

91351-MAC-671

$5.78

52

NUT, HEX. (12MM)

52438-KA4-741

$2.92

53

O-RING (42.5X2.0)

52434-KZ3-J31

$3.45
