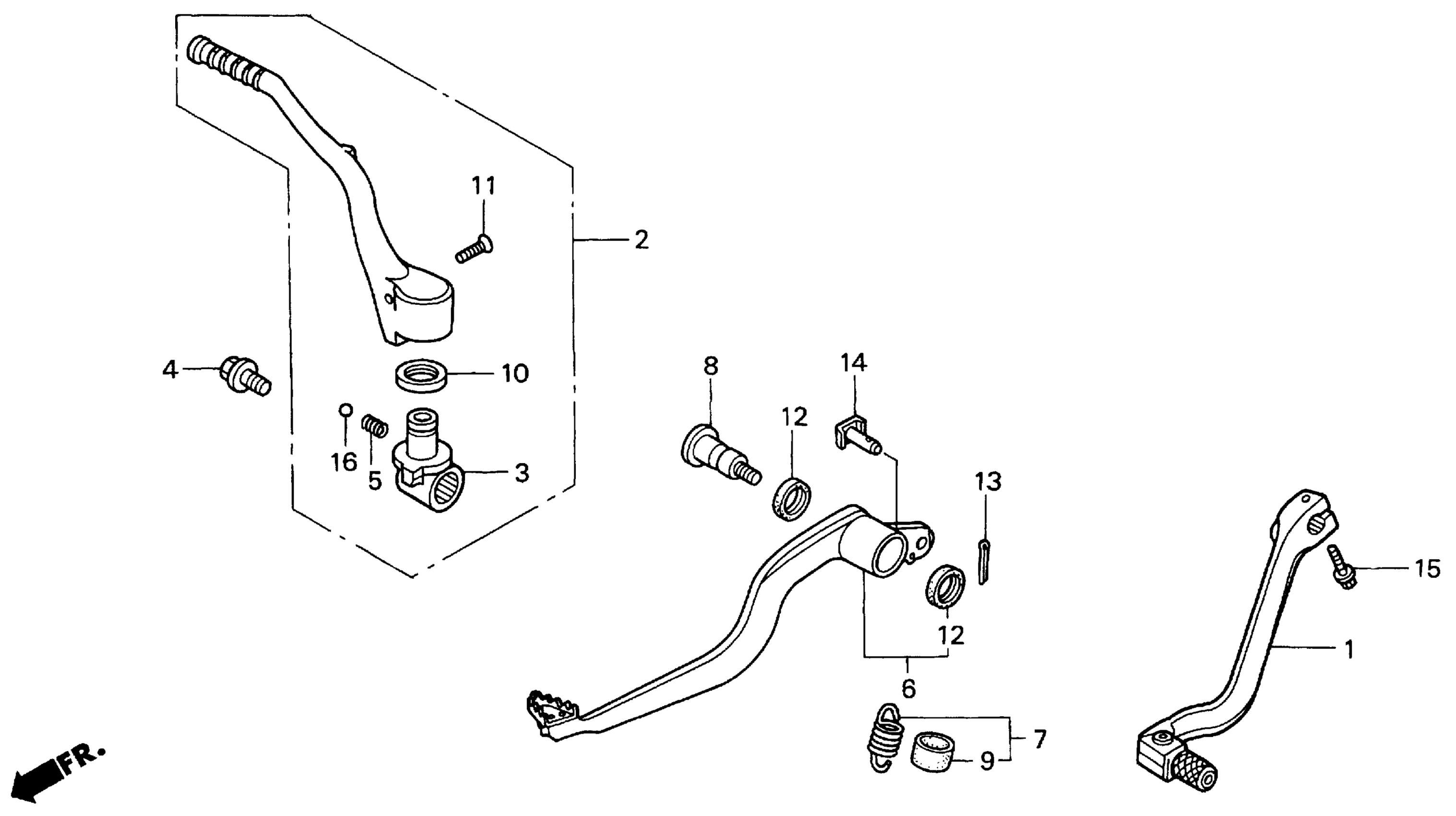

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 PEDAL Diagram

PEDAL, CHANGE

24700-KZ3-J20

Unavailable

ARM ASSY., KICK STARTER

28300-KZ3-J20

Unavailable

JOINT, KICK ARM

28302-KZ3-J20

Unavailable

BOLT, KICK JOINT

28306-KAE-000

$10.67

SPRING, KICK STARTER

28333-KK0-000

$2.29

PEDAL, RR. BRAKE

46510-KZ3-B00

Unavailable

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$6.95

SHAFT, BRAKE PIVOT

46513-KZ4-J20

$14.48

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$2.97

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.70

BOLT, KICK ARM

90101-MAC-680

$5.51

DUST SEAL (15X20X2.5)

91251-444-000

$4.03

PIN, SPLIT (2.0X12)

94201-20120

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
