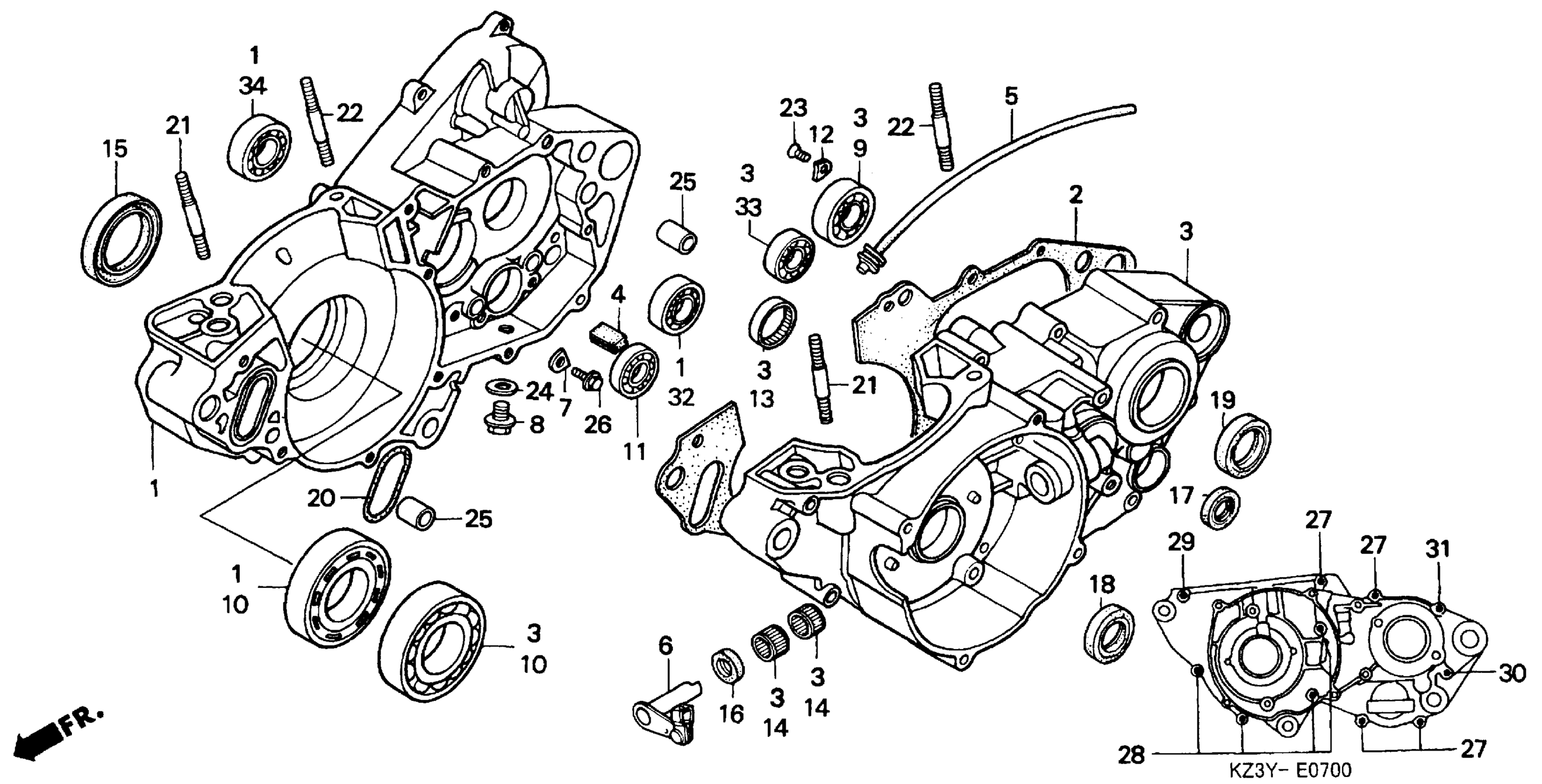

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY., R.

11100-KZ3-P00

Unavailable

2

GASKET, CRANKCASE

11191-KZ3-J20

$22.49

3

CRANKCASE, L.

11200-KZ3-P00

Unavailable

4

GROMMET, BREATHER

11206-GC4-700

$3.08

5

TUBE, BREATHER

11211-ML3-910

$9.00

6

LIFTER, CLUTCH

22810-KS7-000

$72.75

7

PLATE A, BEARING SETTING

23521-KW3-000

$4.46

8

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

9

BEARING, RADIAL BALL (24X56X14) ( NTN)

91001-ML3-873

$18.92

10

BEARING, RADIAL BALL This part replaces 91003-KA4-771.

91008-KAE-731

$48.16

10

BEARING, RADIAL BALL This part replaces 91008-KAE-000.

91008-KAE-731

$48.16

10

BEARING, RADIAL BALL

91008-KAE-731

$48.16

11

BEARING, RADIAL BALL (6905U)

91004-KY4-900

$22.87

11

BEARING, RADIAL BALL (6905U) This part replaces 91004-KZ3-860.

91004-KY4-900

$22.87

12

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

13

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

14

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

14

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

15

OIL SEAL (38X58X11) (NIPPON)

91201-KA4-004

$20.36

16

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.67

17

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

17

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.81

17

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

18

OIL SEAL (20X37X7)

91205-KZ3-861

$13.41

19

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65

20

O-RING (44.3X21)

91301-KZ3-861

$5.64

21

BOLT, STUD (10X40)

92900-10040-0B

$7.95

22

BOLT, STUD (10X55)

92900-10055-0B

$2.92

23

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

PIN, DOWEL (14X20)

94301-14200

$2.28

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

27

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

28

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

30

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

31

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

32

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

33

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59

34

BEARING, RADIAL BALL (6205U)

96140-62050-00

$30.39
