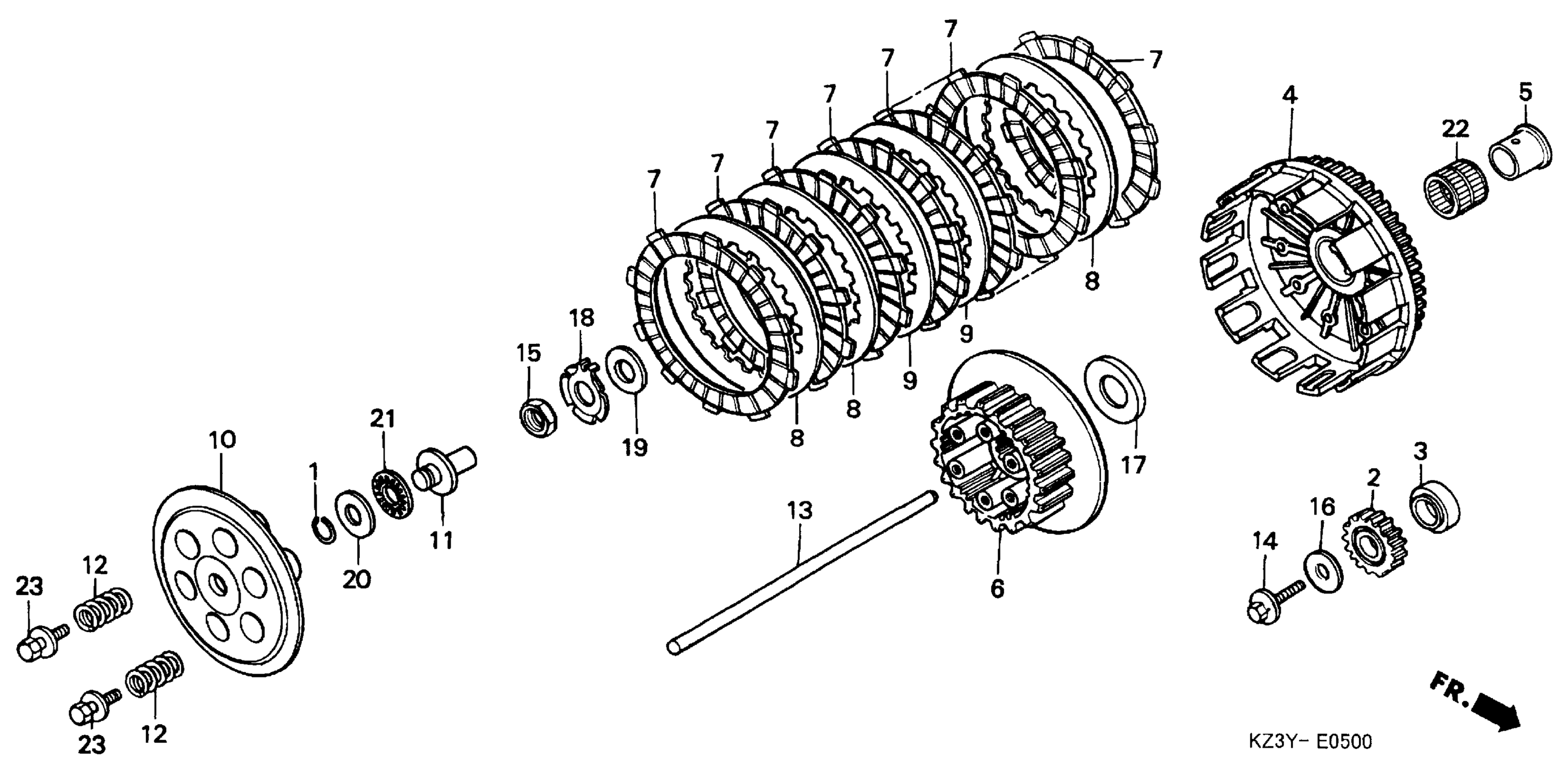

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 CLUTCH Diagram

#

Description
Price

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

2

GEAR, PRIMARY DRIVE (21T)

13615-KS7-000

Unavailable

3

COLLAR, DRIVE GEAR

13617-ML3-000

$52.77

4

CLUTCH (OUTER) This part replaces 22100-KZ3-L10.

22100-KSK-670

$391.36

5

COLLAR, CLUTCH (OUTER)

22106-KS7-000

$26.35

6

CENTER, CLUTCH This part replaces 22120-KZ3-B10.

22120-MEN-A00

$120.55

6

CENTER, CLUTCH This part replaces 22120-KZ3-B11.

22120-MEN-A00

$120.55

7

DISK, CLUTCH FRICTION

22201-KZ3-730

$21.87

8

PLATE B, CLUTCH

22321-KA4-741

$16.58

9

PLATE B, CLUTCH

22321-KZ3-690

$16.11

10

PLATE, CLUTCH PRESSURE

22351-KZ3-860

$78.39

11

PIECE, CLUTCH LIFTER

22352-ML3-910

$37.07

12

SPRING, CLUTCH (PINK)

22401-KZ3-690

$5.05

13

ROD, CLUTCH LIFTER

22851-KZ3-J20

$20.74

14

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

15

NUT (18MM)

90235-KA4-000

$11.09

16

WASHER, PLAIN (10MM)

90401-ML3-790

$6.85

17

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

18

WASHER, LOCK (18MM)

90461-KZ3-J10

$6.23

19

WASHER (18X32X2)

90501-ML3-910

$4.37

20

WASHER (12MM)

90608-072-000

$3.80

21

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

22

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$17.87

23

BOLT-WASHER (6X25)

93404-06025-08

$1.87
