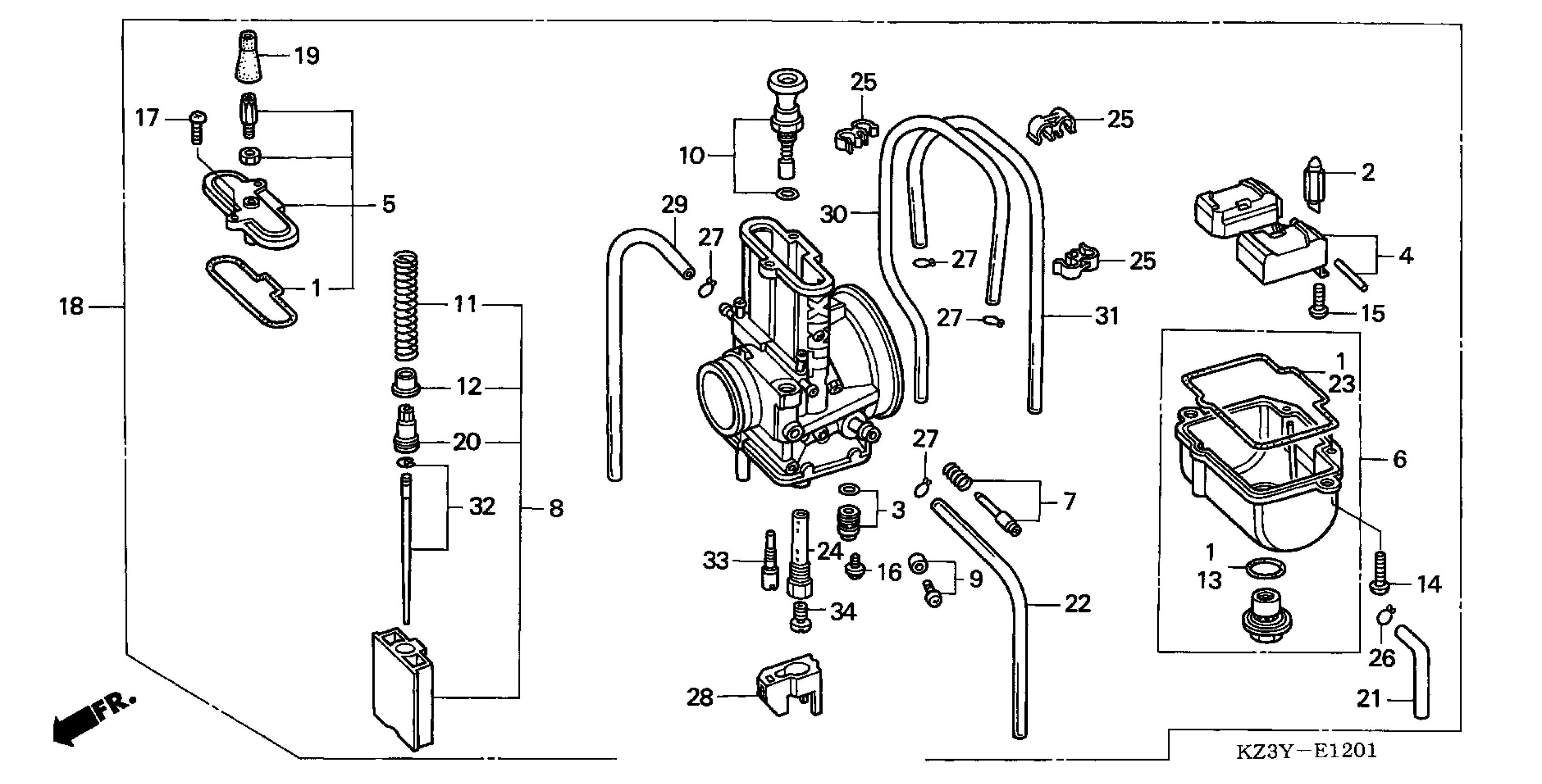

Honda CR250RA (01) MOTORCYCLE, JPN, VIN# JH2ME033-1M300001 CARBURETOR (2) Diagram

#

Description
Price

1

GASKET SET

16010-KZ4-A92

$21.17

2

VALVE, FLOAT

16011-KZ4-A92

$42.36

3

VALVE SET, SEAT

16012-KZ4-A92

$7.77

4

FLOAT SET

16013-KZ4-A92

Unavailable

5

TOP SET

16014-KZ3-L12

Unavailable

6

CHAMBER SET, FLOAT

16015-KZ4-A92

Unavailable

7

SCREW SET A

16016-KZ4-A92

Unavailable

8

VALVE SET, THROTTLE

16022-KZ3-L12

Unavailable

9

SCREW SET B

16028-KZ4-A92

$6.72

10

VALVE SET, STARTER

16046-KZ4-A92

Unavailable

11

SPRING, COMPRESSION COIL

16050-KZ4-A92

Unavailable

12

COLLAR, SPRING SETTING

16066-KZ4-A92

Unavailable

13

O-RING

16075-KZ4-A92

Unavailable

14

SCREW, PAN

16080-KZ4-A92

$1.54

15

SCREW, PAN

16081-KZ4-A92

Unavailable

16

SCREW

16082-KZ4-A92

Unavailable

17

SCREW-WASHER

16083-KZ3-L12

$1.59

18

CARBURETOR ASSY. (TMX11A A)

16100-KZ3-L12

Unavailable

19

CAP, CABLE SEALING

16118-KZ4-A92

$4.75

20

HOLDER, CABLE

16137-KZ4-A92

Unavailable

21

TUBE, OVERFLOW

16143-KZ3-L12

Unavailable

22

TUBE, AIR VENT

16144-KZ3-L12

Unavailable

23

GASKET, FLOAT CHAMBER

16163-KZ4-A92

Unavailable

24

NOZZLE, MAIN

16165-KZ3-L12

Unavailable

25

BINDER

16179-KZ4-A92

$4.26

26

CLIP, TUBE

16181-KZ4-A92

$1.49

27

CLIP, TUBE

16182-KZ4-A92

$1.49

28

PLATE, BUFFER

16185-KZ4-A92

Unavailable

29

TUBE, AIR VENT

16197-KZ3-L12

Unavailable

30

TUBE, AIR VENT

16198-KZ3-L12

Unavailable

31

TUBE, AIR VENT

16199-KZ3-L12

Unavailable

32

NEEDLE SET, JET (6BEH1-73)

16204-KZ3-L12

Unavailable

33

JET, SLOW (#25) | (Optional).

99133-KZ3-0250

Unavailable

33

JET, SLOW (#30) | (Optional).

99133-KZ3-0300

$11.41

33

JET, SLOW (#35)

99133-KZ3-0350

Unavailable

33

JET, SLOW (#40) | (Optional).

99133-KZ4-0400

$12.08

33

JET, SLOW (#45) | (Optional).

99133-KZ4-0450

Unavailable

34

JET, MAIN (#420)

99143-KZ4-4200

$14.51
