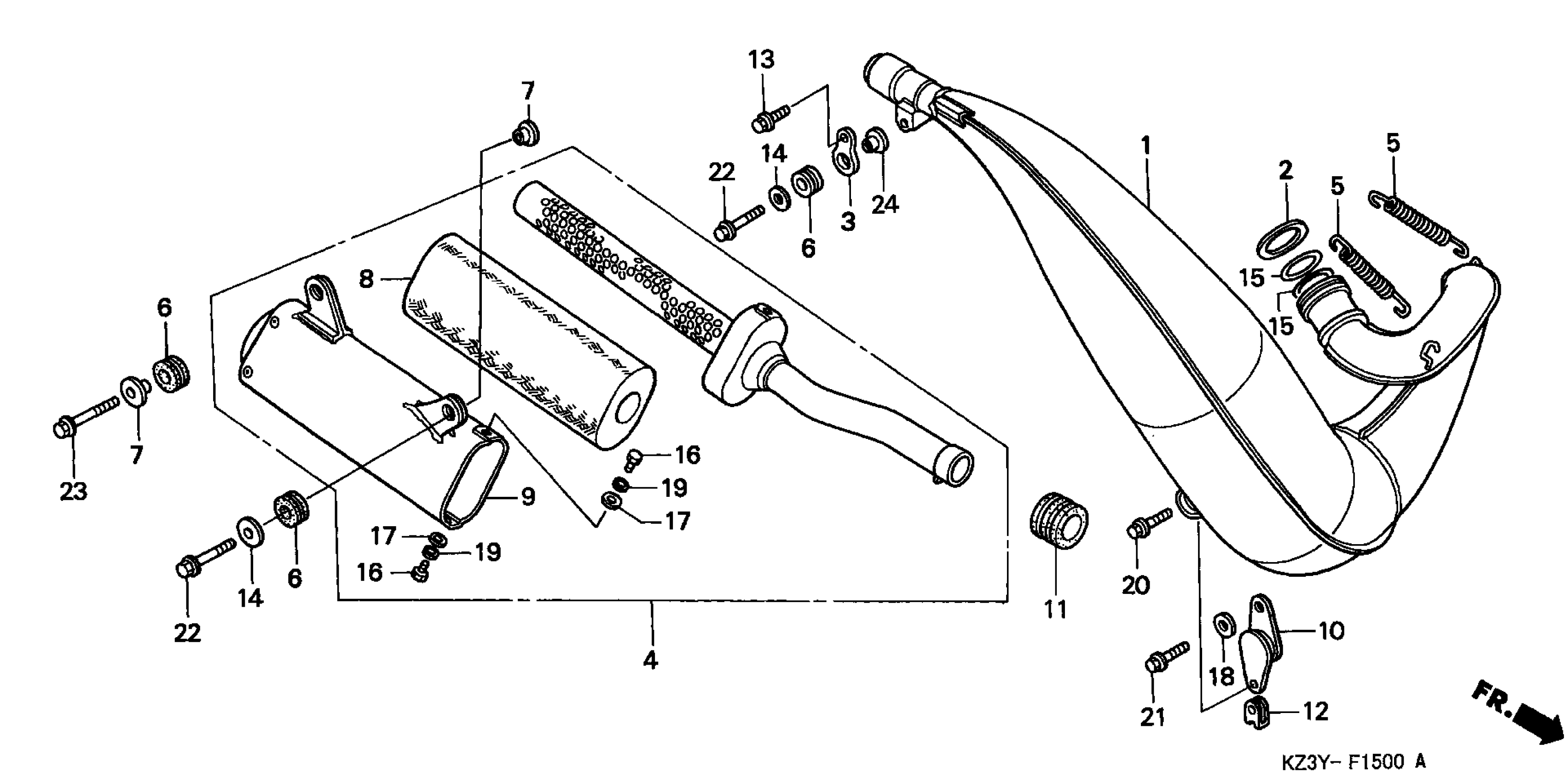

Honda CR250RA (00) MOTORCYCLE, JPN, VIN# JH2ME033-YM200001 EXPANSION CHAMBER Diagram

#

Description
Price

1

CHAMBER, EXPANSION

18300-KZ3-J20

Unavailable

2

WASHER (42X47.5)

18309-KZ3-600

$8.60

3

STAY, RR. CHAMBER

18325-KS6-000

$20.23

4

MUFFLER This part replaces 18330-KZ3-A90.

18330-KZ3-L10

Unavailable

5

SPRING, EX. PIPE

18332-KZ3-710

$7.09

6

RUBBER, MUFFLER

18334-KA3-830

$3.62

7

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.22

8

WOOL, GLASS

18340-KZ3-680

Unavailable

9

BODY, MUFFLER This part replaces 18350-KZ3-B10.

18350-KZ3-L10

Unavailable

10

STAY, CHAMBER

18355-KZ3-B00

$20.27

11

RUBBER, MUFFLER CONNECTING PIPE

18365-KA4-730

$17.69

12

NUT, CLIP (6MM)

80105-KC5-000

$4.84

13

BOLT-WASHER (6X16)

90102-KS6-000

$8.24

14

WASHER, FENDER MOUNTING

90506-430-000

$2.71

15

O-RING (43X3)

91304-KZ3-890

$12.07

16

BOLT, RECESSED (5X10)

92301-05010-0A

Unavailable

17

WASHER, PLAIN (5MM)

94101-05000

$0.90

18

WASHER, PLAIN (6MM)

94103-06000

$0.90

19

WASHER, SPRING (5MM)

94111-05000

$1.03

20

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

21

BOLT-WASHER (6X16)

90102-KS6-000

$8.24

22

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

23

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

24

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.22
