- CR250MA (76) ELSINORE, JPN, VIN# CR250M-3000001 TO CR250M-3004067
REAR SHOCK ABSORBER 76

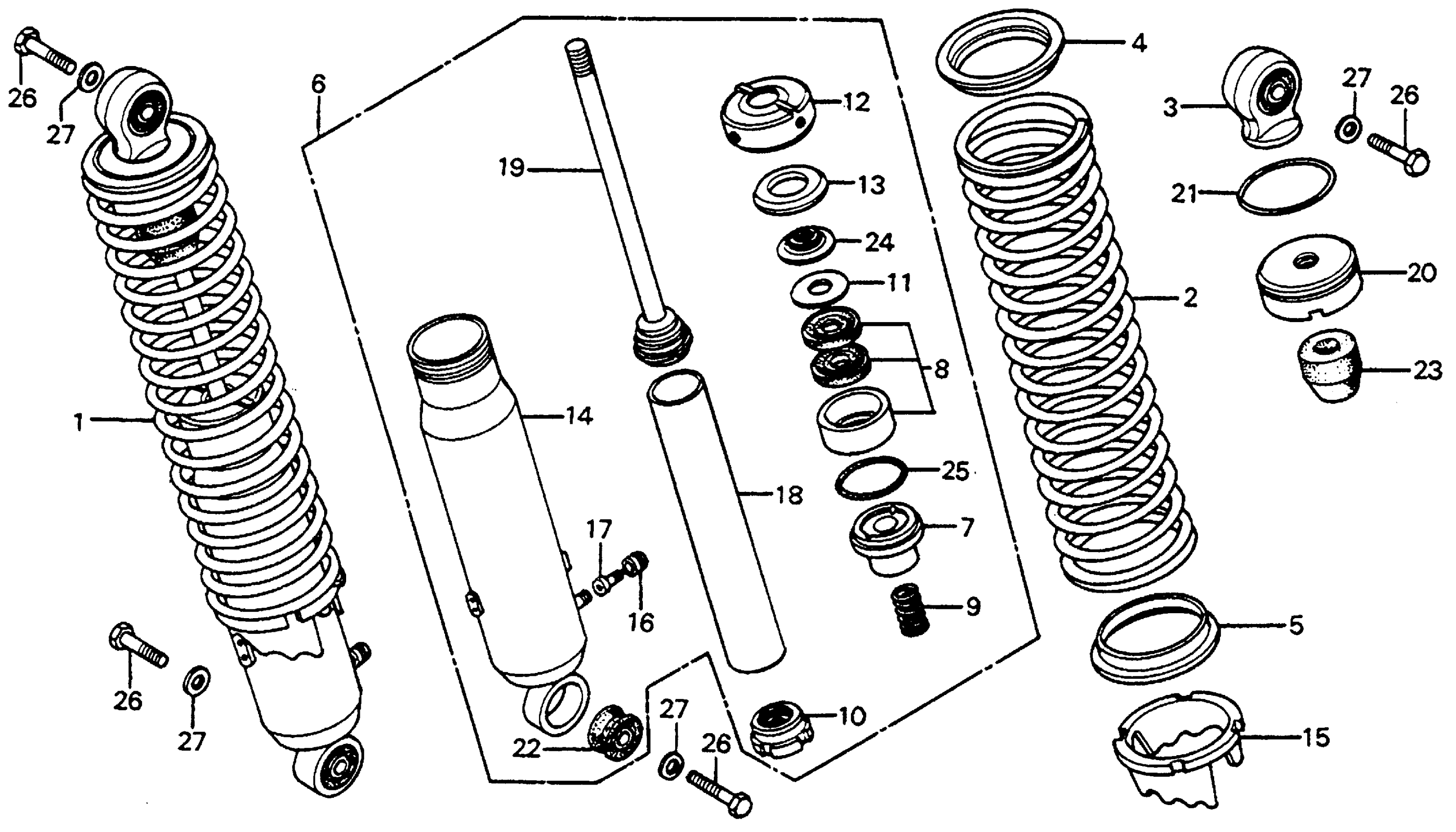

Honda CR250MA (76) ELSINORE, JPN, VIN# CR250M-3000001 TO CR250M-3004067 REAR SHOCK ABSORBER 76 Diagram
#
1
SHOCK ABSORBER ASSY., RR. *R23* (TAHITIAN RED)
52400-381-771ZA
Unavailable
2
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-381-771
Unavailable
3
JOINT (UPPER) (NOT AVAILABLE)
52403-360-700
Unavailable
4
GUIDE, SPRING (UPPER) (NOT AVAILABLE)
52406-381-771
Unavailable
5
GUIDE, SPRING (LOWER) (NOT AVAILABLE)
52407-381-771
Unavailable
6
DAMPER, RR. *R23* (TAHITIAN RED)
52410-381-771ZA
Unavailable
7
GUIDE, ROD
52411-381-771
Unavailable
8
CASE, SEAL (NOT AVAILABLE)
52412-381-771
Unavailable
9
SPRING, REBOUND STOP
52414-381-771
Unavailable
10
HOLDER, VALVE (LOWER)
52415-381-771
Unavailable
11
GUIDE, SEAL
52416-381-771
Unavailable
12
SEAT, STOPPER (NOT AVAILABLE)
52418-381-771
Unavailable
13
PLATE (NOT AVAILABLE)
52419-381-771
Unavailable
14
CASE, SHOCK ABSORBER *R23* (TAHITIAN RED)
52420-381-770ZA
Unavailable
14
CASE, SHOCK ABSORBER *R23* (TAHITIAN RED) This part replaces 52420-381-771ZA.
52420-381-770ZA
Unavailable
15
ADJUSTER, SPRING (NOT AVAILABLE)
52422-381-771
Unavailable
17
CORE, VALVE
52426-381-771
Unavailable
18
CYLINDER
52430-381-771
Unavailable
19
ROD, SHOCK ABSORBER
52440-381-771
Unavailable
20
SEAT, SPRING (NOT AVAILABLE)
52459-381-771
Unavailable
21
RING, STOPPER (NOT AVAILABLE)
52460-381-771
Unavailable
22
BUSH, SHOCK ABSORBER
52489-361-000
Unavailable
23
RUBBER, STOPPER (NOT AVAILABLE)
52517-381-771
Unavailable
24
DUST SEAL (NOT AVAILABLE)
91256-381-771
Unavailable
25
O-RING
91317-381-771
Unavailable
26
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0A.
92101-10032-0A
Unavailable
26
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92025-10032-0A.
92101-10032-0A
Unavailable
26
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)
92101-10032-0A
Unavailable
