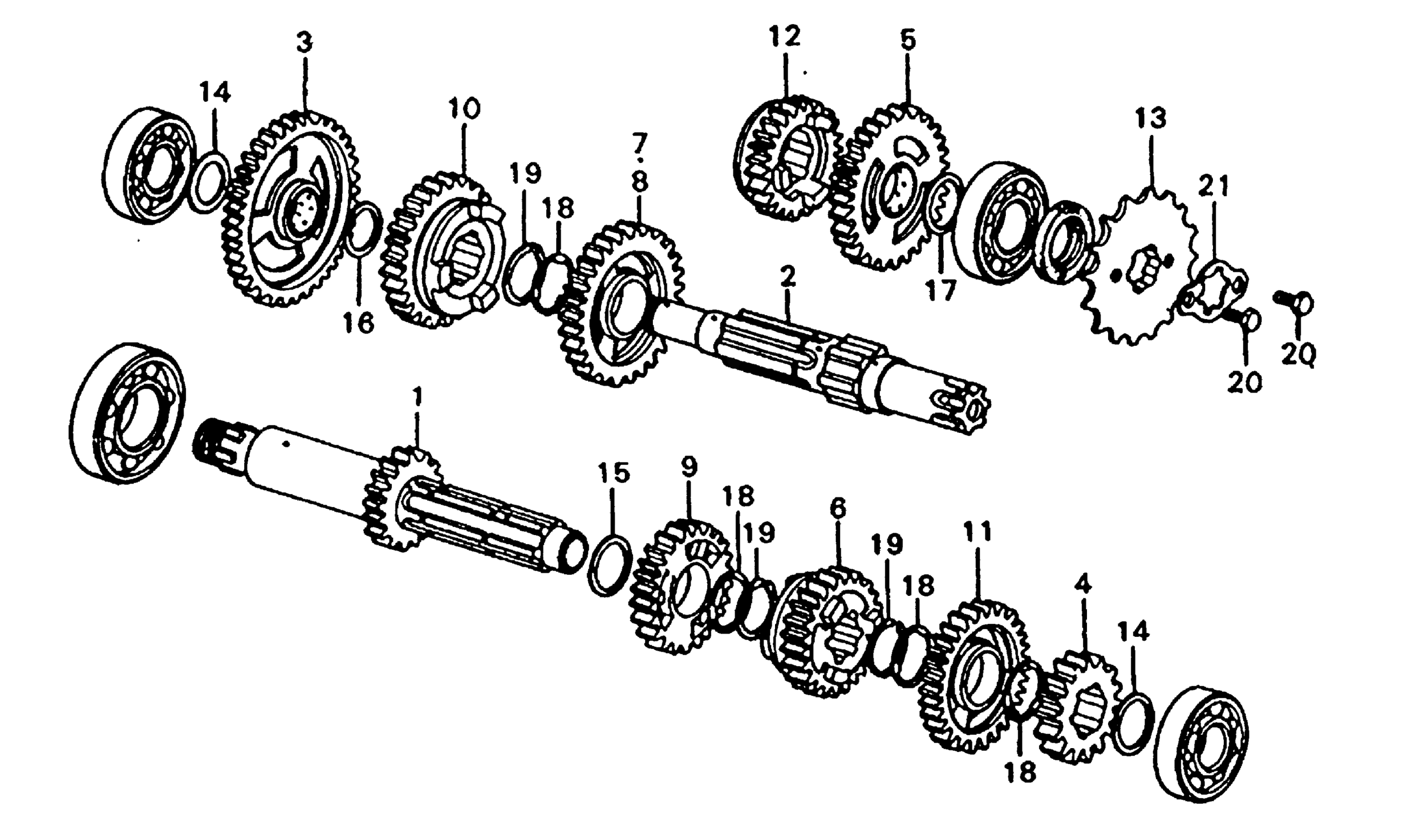

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23210-357-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-357-040

Unavailable

3

GEAR, COUNTERSHAFT LOW (37T)

23410-357-020

Unavailable

4

GEAR, MAINSHAFT SECOND (21T)

23421-357-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (33T)

23430-381-000

Unavailable

6

GEAR, MAINSHAFT THIRD (24T)

23441-381-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (30T) (NOT AVAILABLE)

23451-357-020

Unavailable

9

GEAR, MAINSHAFT FOURTH

23461-357-040

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (27T)

23471-381-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (29T) (NOT AVAILABLE)

23481-357-020

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (25T)

23491-381-000

Unavailable

13

SPROCKET, DRIVE (14T) (NOT AVAILABLE) This part replaces 23802-357-000.

23801-362-000

Unavailable

14

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

15

WASHER, THRUST (22MM)

90452-357-000

$5.79

16

WASHER, THRUST (18.6MM)

90457-357-000

Unavailable

17

WASHER, THRUST

90459-700-000

Unavailable

18

WASHER, SPLINE (22MM) This part replaces 90463-357-000.

90463-437-000

$3.49

18

WASHER, SPLINE (22MM)

90463-437-000

$3.49

19

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

21

PLATE B, FIXING

95014-92100

$1.49
