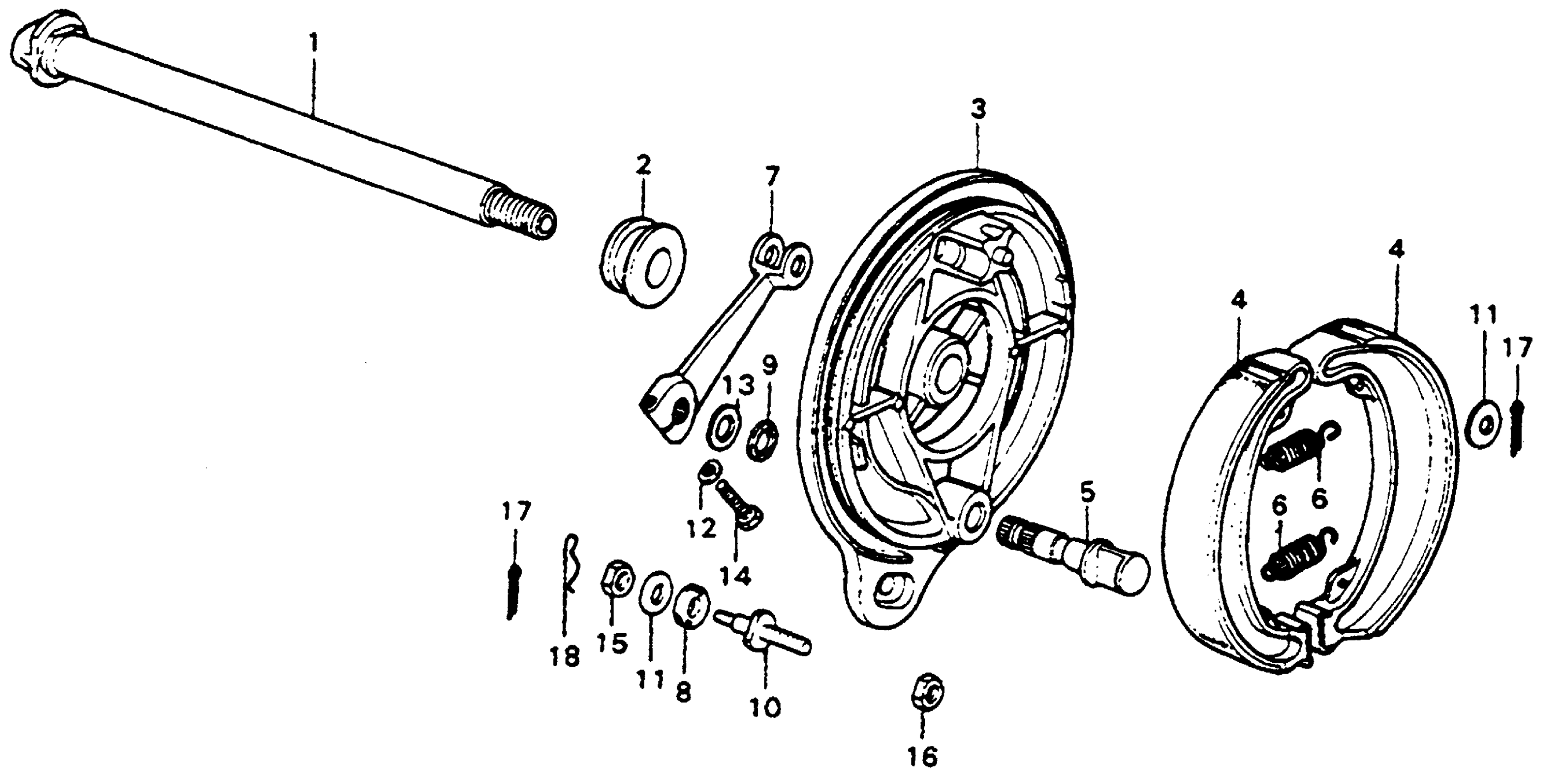

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 REAR WHEEL PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-357-000.

42301-385-000

Unavailable

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-385-000

Unavailable

2

COLLAR, RR. PANEL (NOT AVAILABLE)

42313-381-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-357-020

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-312-000

Unavailable

6

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

7

ARM, RR. BRAKE (NOT AVAILABLE)

43410-357-000

Unavailable

8

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-357-010

Unavailable

11

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

12

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

13

WASHER (14MM)

90549-121-000

Unavailable

14

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

14

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, HEX. (10MM)

94002-10000-0S

$4.06

17

PIN, COTTER (2.0X15)

94201-20150

$1.49

18

PIN, LOCK (8MM)

94251-08000

$1.49
