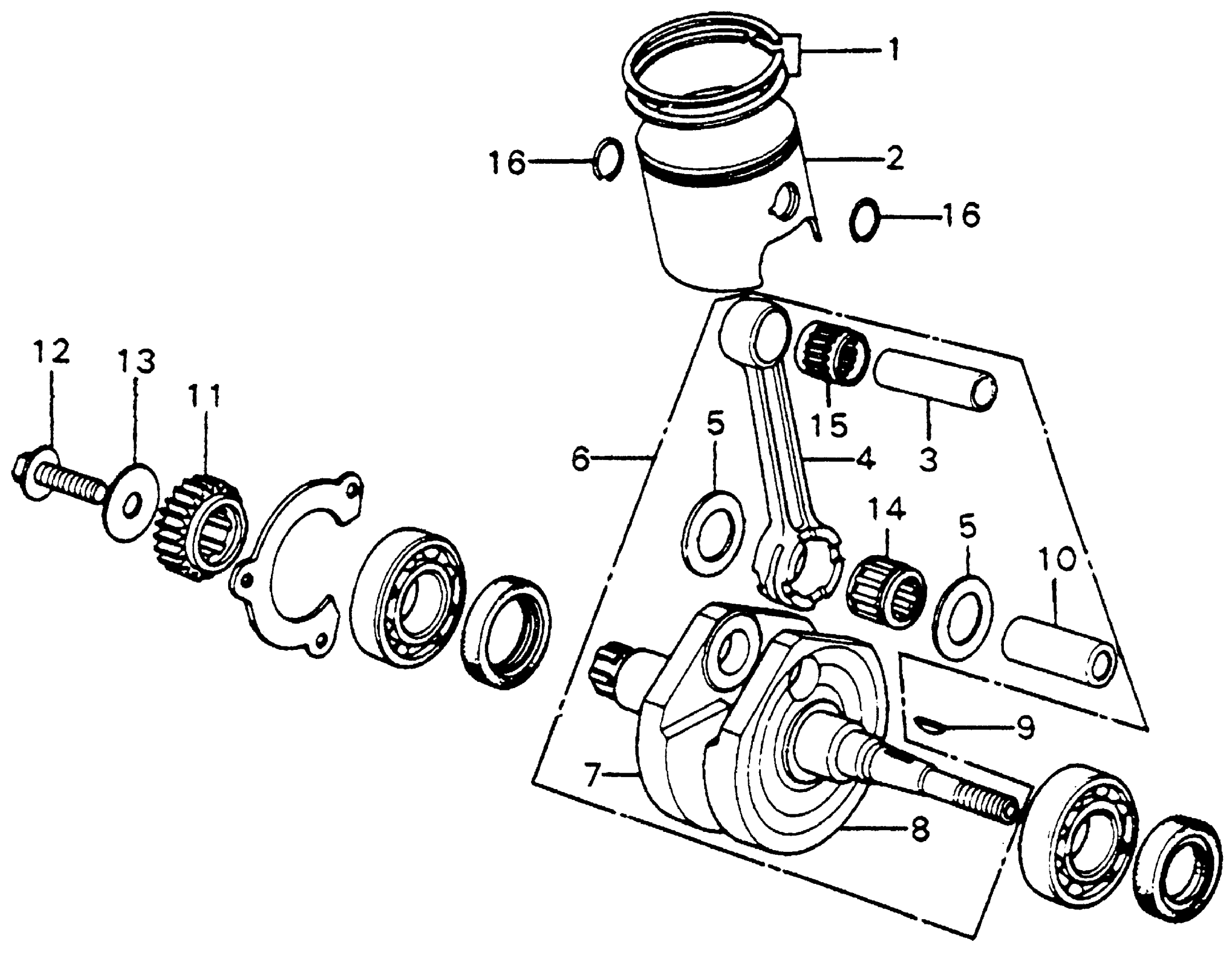

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 PISTON + CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD) (NIPPON) (NOT AVAILABLE)

13011-381-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON)

13021-381-003

$27.10

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13031-381-003

$43.74

1

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13041-381-003

$34.30

1

RING SET, PISTON (1.00) (NIPPON) | (Optional).

13051-381-003

$41.18

2

PISTON (STD)

13101-381-000

$80.28

2

PISTON (OS 0.25) | (Optional). This part replaces 13102-381-000.

13102-395-000

$282.93

2

PISTON (OS 0.25) | (Optional).

13102-395-000

$282.93

2

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). This part replaces 13103-381-000.

13103-395-000

Unavailable

2

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-395-000

Unavailable

2

PISTON (0.75) | (Optional). This part replaces 13104-381-000.

13104-395-000

Unavailable

2

PISTON (0.75) | (Optional).

13104-395-000

Unavailable

2

PISTON (1.00) | (Optional). This part replaces 13105-381-000.

13105-395-000

Unavailable

2

PISTON (1.00) | (Optional).

13105-395-000

Unavailable

3

PIN A, PISTON

13111-357-000

Unavailable

3

PIN B, PISTON (NOT AVAILABLE)

13112-357-000

Unavailable

4

ROD, CONNECTING

13201-KA4-700

Unavailable

4

ROD, CONNECTING This part replaces 13201-381-300.

13201-KA4-700

Unavailable

5

WASHER, CONNECTING ROD SIDE

13202-357-300

Unavailable

6

CRANKSHAFT (NOT AVAILABLE)

13300-381-000

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-381-300

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13321-381-300

Unavailable

9

KEY, SPECIAL WOODRUFF (25X18)

13331-357-000

$3.60

10

PIN, CRANK (NOT AVAILABLE) This part replaces 13381-357-330.

13381-357-340

Unavailable

10

PIN, CRANK (NOT AVAILABLE)

13381-357-340

Unavailable

11

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

13615-357-030

Unavailable

12

BOLT, UBS (12X30) (NOT AVAILABLE)

90013-333-010

Unavailable

13

WASHER, PRIMARY SHAFT LOCK (NOT AVAILABLE)

90201-333-020

Unavailable

14

BEARING 1, CONNECTING ROD LARGE END

91011-VM0-008

Unavailable

14

BEARING 1, CONNECTING ROD LARGE END This part replaces 91011-357-003.

91011-VM0-008

Unavailable

14

BEARING 2, CONNECTING ROD LARGE END

91012-VM0-008

Unavailable

14

BEARING 2, CONNECTING ROD LARGE END This part replaces 91012-357-003.

91012-VM0-008

Unavailable

14

BEARING 3, CONNECTING ROD LARGE END

91013-VM0-008

Unavailable

14

BEARING 3, CONNECTING ROD LARGE END (TOYO)

91013-357-003

$20.98

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-003.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-004.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-006.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO)

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-004.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-006.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91016-357-003.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91016-357-004.

91015-357-003

$28.53

15

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91016-357-006.

91015-357-003

$28.53

16

CLIP, PISTON PIN (18MM)

94601-18000

$1.49
