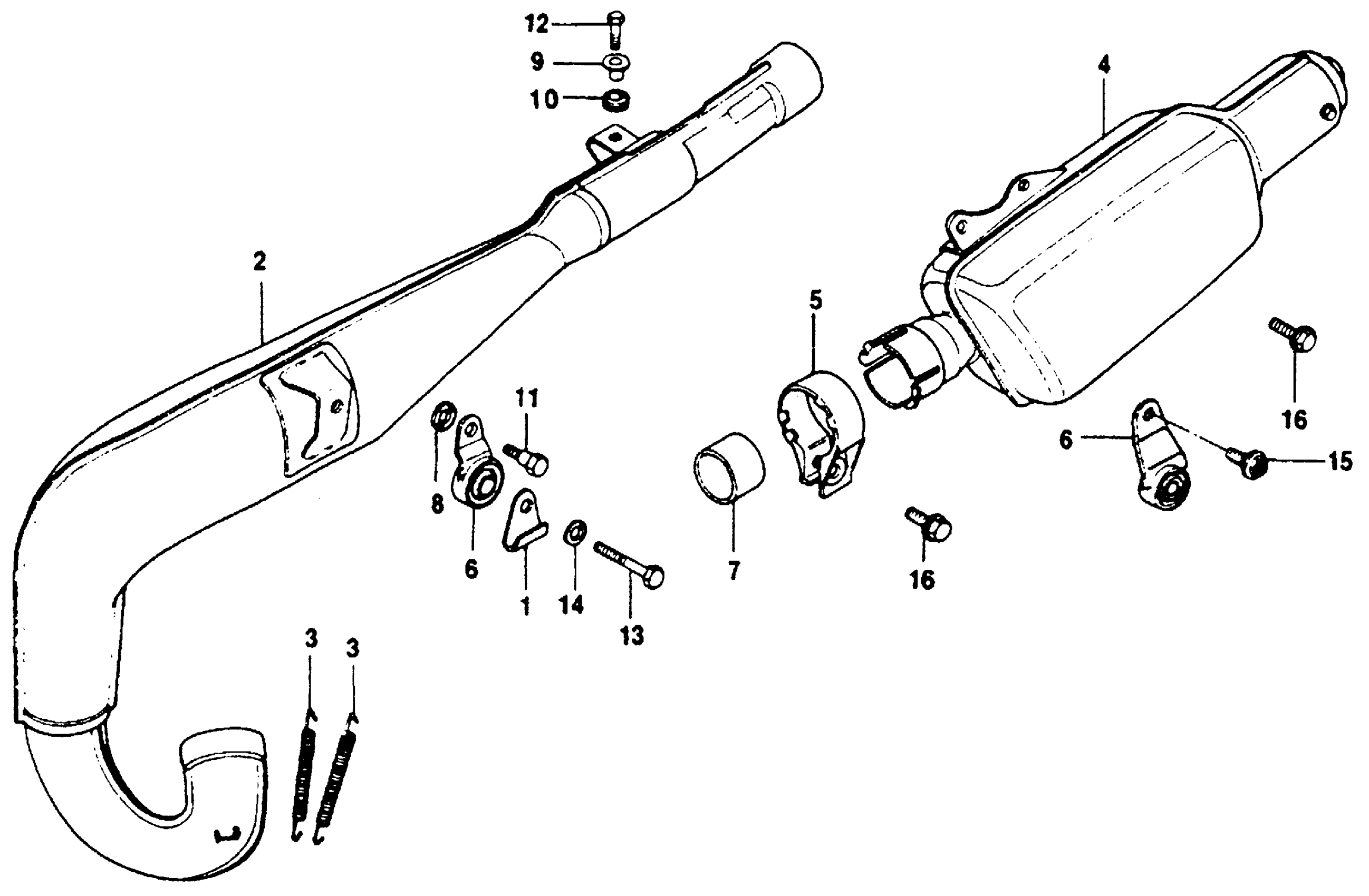

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 MUFFLER M1-76 Diagram

#

Description
Price

1

CLAMP, THROTTLE CABLE (NOT AVAILABLE)

17918-381-000

Unavailable

2

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-381-000.

18300-381-007

Unavailable

2

MUFFLER, EX. (NOT AVAILABLE)

18300-381-007

Unavailable

3

SPRING, EX. PIPE

18332-357-010

$14.70

4

SUB-MUFFLER (NOT AVAILABLE) This part replaces 18350-381-670.

18350-381-677

Unavailable

4

SUB-MUFFLER (NOT AVAILABLE)

18350-381-677

Unavailable

5

BAND, MUFFLER (NOT AVAILABLE)

18351-381-670

Unavailable

6

BRACKET, MUFFLER (NOT AVAILABLE)

18353-357-010

Unavailable

7

GASKET, MUFFLER This part replaces 18391-292-300.

18392-MK5-000

Unavailable

7

GASKET, MUFFLER

18392-MK5-000

Unavailable

8

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

9

COLLAR, RR. FENDER

61105-428-000

Unavailable

10

RUBBER, SETTING (22MM)

61315-358-000

$5.34

11

BOLT, MUFFLER SETTING (NOT AVAILABLE)

90138-381-000

Unavailable

12

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

12

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

12

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

14

WASHER, SPRING (8MM)

94111-08000

$1.49

16

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

16

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
