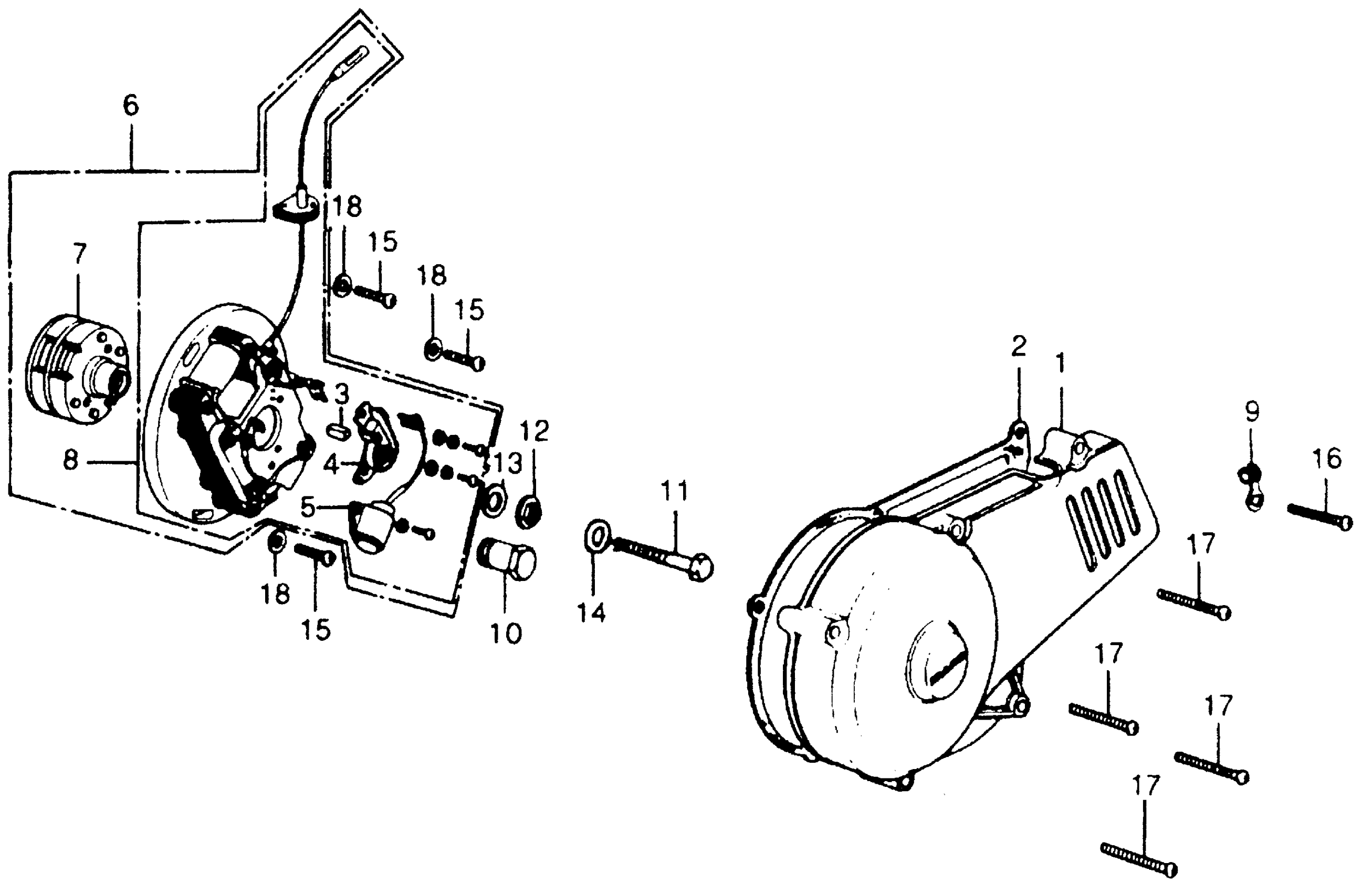

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-381-000

Unavailable

GASKET, L. This part replaces 11395-357-020.

11395-357-306

Unavailable

FELT, OIL (KOKUSAN) (NOT AVAILABLE)

30205-357-003

Unavailable

POINTS (KOKUSAN)

30210-357-003

Unavailable

CONDENSER (KOKUSAN) (NOT AVAILABLE)

30280-357-003

Unavailable

ALTERNATOR ASSY. (KOKUSAN) (NOT AVAILABLE)

31100-381-003

Unavailable

ROTOR (KOKUSAN)

31101-381-003

Unavailable

STATOR (KOKUSAN) (NOT AVAILABLE)

31102-381-003

Unavailable

CLAMP, CORD (NOT AVAILABLE)

90038-357-000

Unavailable

BOLT, REMOVING (NOT AVAILABLE)

90039-381-000

Unavailable

NUT, SPECIAL (12MM) (NOT AVAILABLE)

90201-358-000

Unavailable

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-358-000

Unavailable

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
