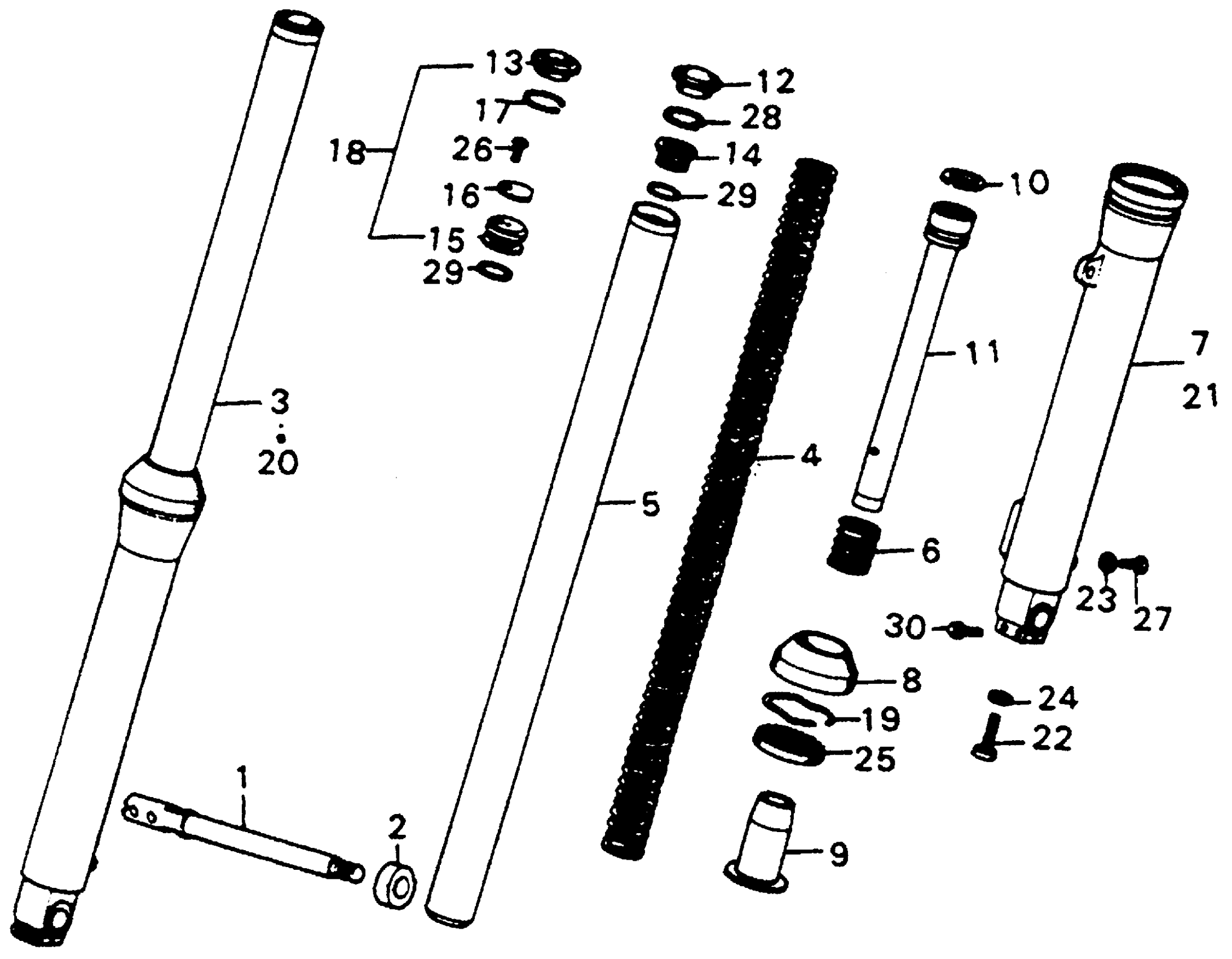

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 FRONT FORK Diagram

#

Description
Price

1

AXLE, FR. WHEEL | (Optional).

44301-381-810

Unavailable

2

COLLAR, FR. WHEEL SIDE | (Optional).

44311-381-810

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | (Optional).

51400-381-812

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | (Optional). This part replaces 51400-381-811.

51400-381-812

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE) | (Optional).

51401-381-003

Unavailable

5

PIPE, FR. FORK | (Optional). This part replaces 51410-381-810.

51410-381-811

Unavailable

5

PIPE, FR. FORK | (Optional).

51410-381-811

Unavailable

6

SPRING, FR. FORK REBOUND | (Optional).

51412-340-000

$4.78

7

CASE, R. FR. FORK (LOWER) | (Optional).

51421-381-810

Unavailable

8

DUST SEAL, FR. FORK | (Optional). This part replaces 51425-340-000.

91254-435-003

$15.40

8

DUST SEAL, FR. FORK | (Optional).

91254-435-003

$15.40

9

PIECE, OIL LOCK | (Optional).

51432-381-003

Unavailable

10

RING, PISTON | (Optional).

51437-329-010

$7.14

11

SEAT (LOWER) (NOT AVAILABLE) | (Optional).

51440-381-003

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE) | (Optional). This part replaces 51449-381-003.

51449-381-013

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE) | (Optional).

51449-381-013

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | (Optional). This part replaces 51454-381-003.

51460-381-305

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | (Optional).

51460-381-305

Unavailable

19

RING, OIL SEAL STOPPER | (Optional).

51447-KL4-951

$4.03

19

RING, OIL SEAL STOPPER | (Optional). This part replaces 51466-375-000.

51447-KL4-951

$4.03

20

FORK ASSY., L. FR. | (Optional). This part replaces 51500-381-811.

51500-381-812

Unavailable

20

FORK ASSY., L. FR. | (Optional).

51500-381-812

Unavailable

21

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | (Optional).

51521-381-810

Unavailable

22

BOLT, SOCKET (8MM) (SHOWA) | (Optional). This part replaces 90116-283-010.

90116-383-721

$5.13

22

BOLT, SOCKET (8MM) (SHOWA) | (Optional).

90116-383-721

$5.13

23

GASKET, FR. FORK DRAIN VALVE | (Optional).

90543-273-000

$2.46

24

WASHER, SPECIAL (8MM) | (Optional).

90544-283-000

$2.87

25

OIL SEAL (35X48X11) | (Optional).

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) | (Optional). This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) | (Optional). This part replaces 91255-300-033.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) | (Optional). This part replaces 91255-323-013.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) | (Optional). This part replaces 91255-434-003.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) | (Optional). This part replaces 91255-434-013.

91255-KBH-003

$13.24

27

BOLT, HEX. (6X10) | (Optional). This part replaces 92000-06010.

92101-06010-0A

$1.49

27

BOLT, HEX. (6X10) | (Optional).

92101-06010-0A

$1.49

28

CIRCLIP (INNER) (30MM) (SOURCE: VINTAGE PARTS INC.) | (Optional).

94521-30000

Unavailable

29

O-RING (23X2.8) | (Optional).

94608-50000

$1.49

30

BOLT, FLANGE (6X28) | (Optional).

95700-06028-00

$1.73

30

BOLT, FLANGE (6X28) | (Optional).

95701-06028-00

$1.73
