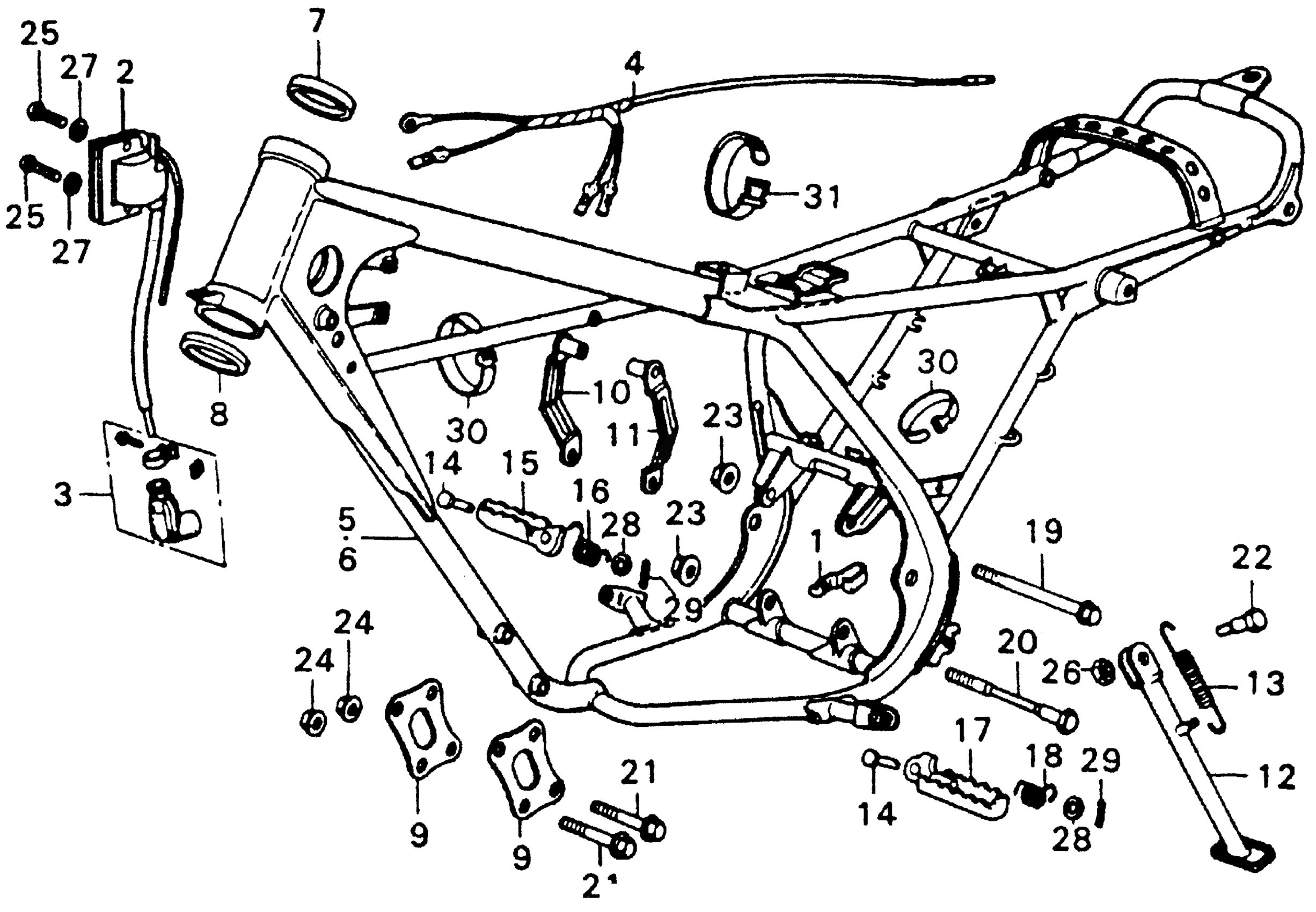

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 FRAME + WIRE HARNESS M1-76 Diagram

#

Description
Price

1

CLAMP, TUBE (NOT AVAILABLE)

11205-360-000

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-381-000

Unavailable

3

TERMINAL ASSY., COIL (NOT AVAILABLE)

30700-360-701

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-381-670

Unavailable

5

FRAME *NH1* (BLACK)

50100-381-770B

Unavailable

7

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

7

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

8

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

8

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

9

BRACKET, ENGINE HANGER (NOT AVAILABLE)

50351-381-000

Unavailable

10

STIFFENER, R. CENTER CROSS PIPE

50361-381-303

Unavailable

11

STIFFENER, L. CENTER CROSS PIPE

50362-381-303

Unavailable

12

BAR, SIDE STAND (NOT AVAILABLE)

50530-381-000

Unavailable

13

SPRING, SIDE STAND

50542-310-010

Unavailable

14

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

14

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

15

STEP, R.

50616-357-000

Unavailable

16

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

16

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

17

STEP, L. (NOT AVAILABLE)

50642-357-000

Unavailable

18

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

18

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

19

BOLT, HEX. (10MM) (NOT AVAILABLE)

90102-358-000

Unavailable

20

BOLT, HEX. (10X216) (NOT AVAILABLE)

90102-381-303

Unavailable

21

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

22

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

23

NUT, HEX. (10MM)

90308-357-000

$4.85

24

NUT, HEX. (8MM)

90309-357-000

$3.40

25

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

25

SCREW, PAN (6X20)

93500-06020-0A

$1.49

26

NUT, HEX. (10MM)

94030-10000

$1.49

26

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

BAND B1, CABLE

32161-404-000

$2.23

30

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

31

BAND A2, CABLE

95014-61200

$2.33
