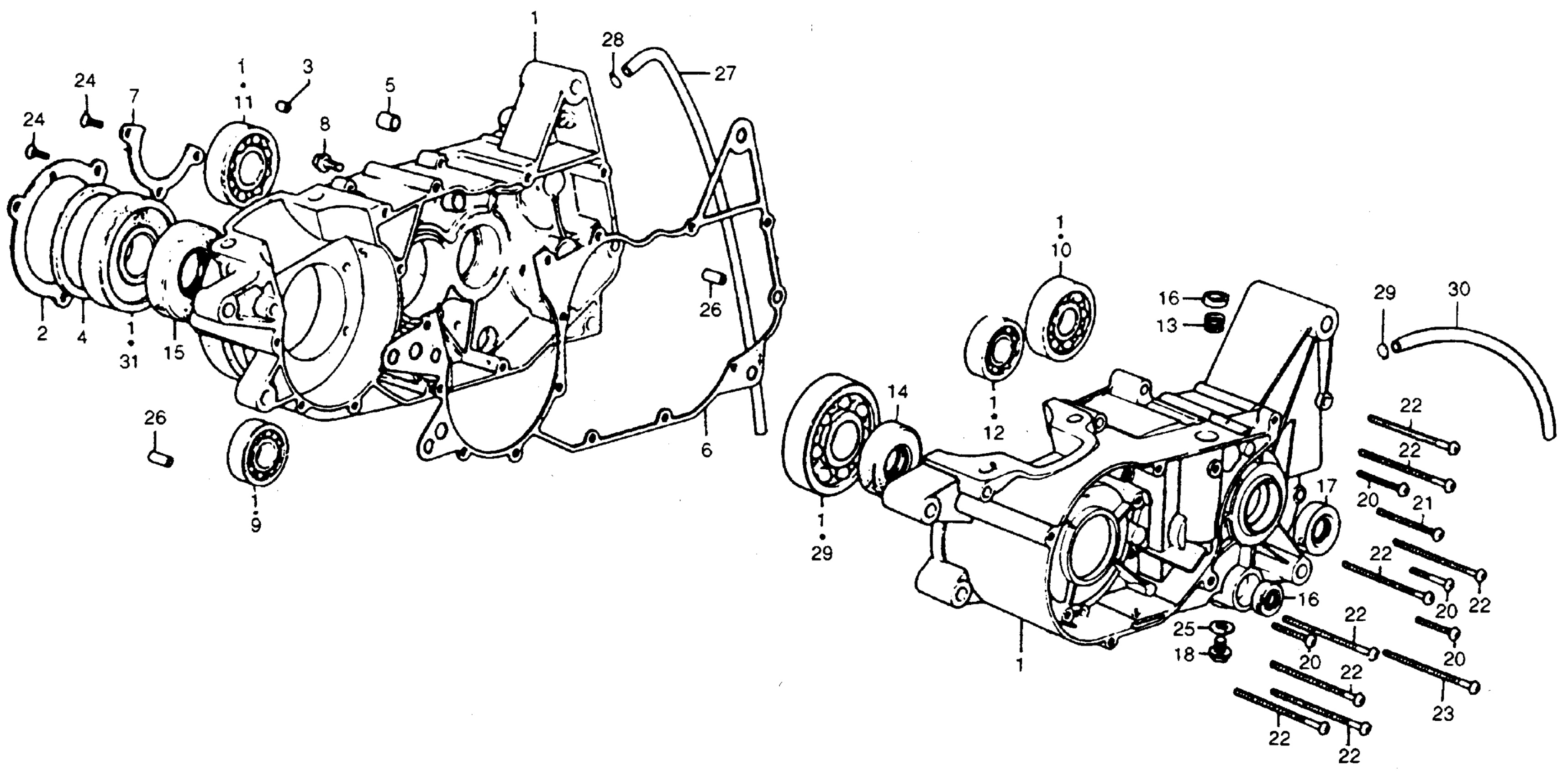

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 CRANKCASE M1-76 Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-381-000

Unavailable

3

PLATE, BEARING SET (NOT AVAILABLE)

11105-357-010

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-381-000.

11191-381-306

Unavailable

6

PLATE, BEARING STOPPER (NOT AVAILABLE)

23216-357-000

Unavailable

7

PIN, KICK STOPPER (NOT AVAILABLE)

28254-357-000

Unavailable

8

BEARING, RADIAL BALL (17X42X12) (TOYO) This part replaces 91004-357-010.

91005-MG3-003

Unavailable

8

BEARING, RADIAL BALL (17X42X12) (TOYO)

91005-MG3-003

Unavailable

9

BEARING (6304) This part replaces 91005-357-010.

96100-63043-00

Unavailable

10

BEARING, RADIAL BALL (6205Z) This part replaces 91006-357-010.

96120-62053-00

Unavailable

10

BEARING, RADIAL BALL (6205Z)

96120-62053-00

Unavailable

11

BEARING, RADIAL BALL (6203) This part replaces 91007-357-010.

96120-62030-00

$17.70

11

BEARING, RADIAL BALL (6203) This part replaces 96120-62030.

96120-62030-00

$17.70

11

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70

12

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

13

OIL SEAL (25X55X10)

91202-357-003

Unavailable

14

OIL SEAL (38X64X13.5) (ARAI)

91203-357-003

Unavailable

15

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

16

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

16

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

17

OIL SEAL (20X34X6) (NOK)

91201-446-004

$6.78

17

OIL SEAL (20X34X6) (NOK) This part replaces 91207-357-000.

91201-446-004

$6.78

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

19

SCREW, PAN (6X35)

93500-06035-0A

$1.49

20

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

20

SCREW, PAN (6X45)

93500-06045-0A

$1.49

21

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

21

SCREW, PAN (6X60)

93500-06060-0A

$1.49

22

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

22

SCREW, PAN (6X65)

93500-06065-0A

$1.53

24

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

24

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

25

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

26

PIN A, DOWEL (10X14)

94301-10140

$2.28

27

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

27

BULK HOSE, FUEL (5.5X3000) (5.5X300)

95001-55003-60M

$47.32

28

CLIP, TUBE (B10)

95002-02100

$1.90

29

CLIP, TUBE (C6.5)

95002-35000

$1.49

30

*95003-08008-10M This part replaces 95003-08019-10.

95003-08020-10S

Unavailable

31

BEARING, RADIAL BALL (6306) (NOT AVAILABLE)

96102-63063-00

Unavailable
