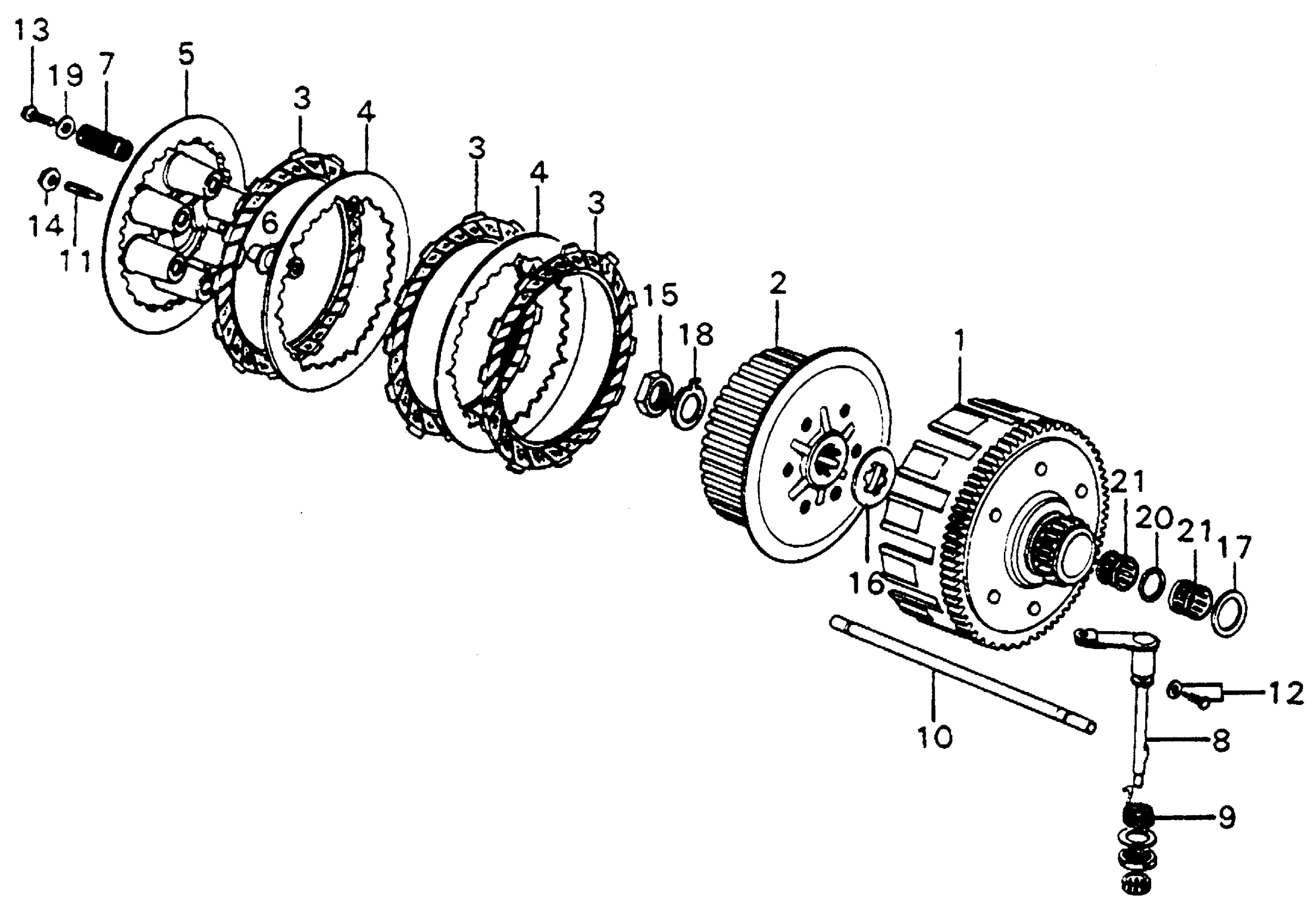

Honda CR250M1A MOTORCYCLE, JPN, VIN# CR250M-2000001 TO CR250M-2005434 CLUTCH Diagram

CLUTCH (OUTER) (NOT AVAILABLE)

22100-357-020

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-357-020

Unavailable

DISK, CLUTCH FRICTION

22201-286-010

$19.81

DISK, CLUTCH FRICTION This part replaces 22201-357-020.

22201-286-010

$19.81

DISK, CLUTCH FRICTION This part replaces 22201-369-000.

22201-286-010

$19.81

DISK, CLUTCH FRICTION This part replaces 22201-376-000.

22201-286-010

$19.81

PLATE B, CLUTCH

22321-KA4-700

$21.59

PLATE B, CLUTCH This part replaces 22321-357-010.

22321-KA4-700

$21.59

PLATE, CLUTCH PRESSURE

22351-357-030

$46.75

PIECE, PRESSURE PLATE CENTER (NOT AVAILABLE)

22352-357-040

Unavailable

SPRING, CLUTCH (NOT AVAILABLE)

22401-357-010

Unavailable

LEVER, CLUTCH

22810-357-030

Unavailable

SPRING, CLUTCH LEVER

22815-357-020

Unavailable

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-357-030

Unavailable

SCREW, CLUTCH ADJUST (NOT AVAILABLE)

22853-357-010

Unavailable

BOLT, SPECIAL (5MM) (NOT AVAILABLE)

90035-357-010

Unavailable

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

NUT, FLANGE (8MM) (NOT AVAILABLE)

90234-357-000

Unavailable

NUT (18MM)

90235-357-000

Unavailable

WASHER, THRUST (22MM) (NOT AVAILABLE)

90454-357-010

Unavailable

WASHER C, THRUST (25MM)

90459-357-000

$3.60

WASHER, LOCK (18MM) (NOT AVAILABLE)

90460-357-000

Unavailable

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

SPACER (29MM) (NOT AVAILABLE)

90599-357-000

Unavailable

BEARING, NEEDLE (25X29X17) (KOYO) (NOT AVAILABLE) This part replaces 91029-357-004.

91007-426-004

Unavailable

BEARING, NEEDLE (25X29X17) (KOYO) (NOT AVAILABLE) This part replaces 91029-357-006.

91007-426-004

Unavailable
