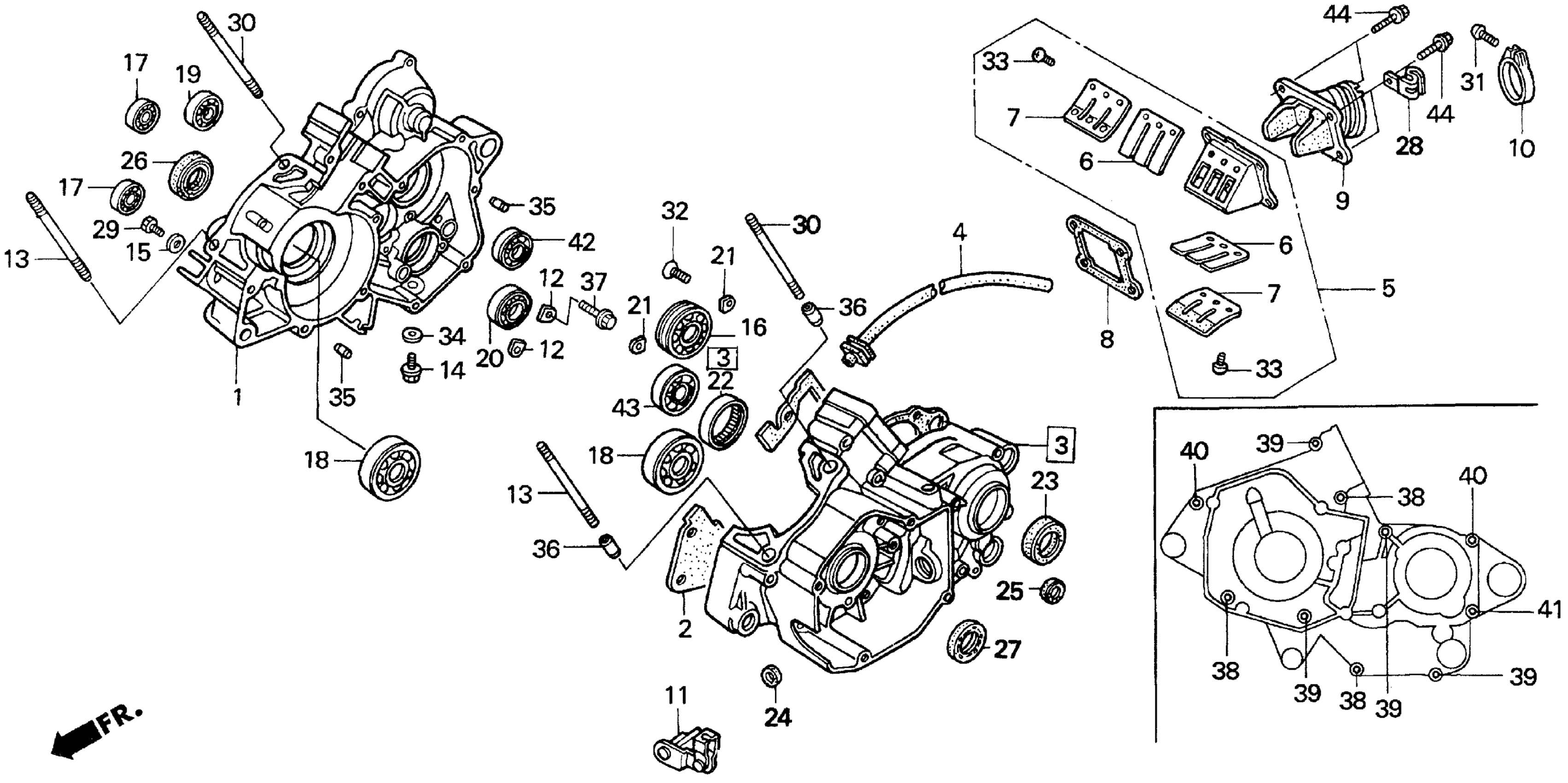

Honda CR125RA (99) MOTORCYCLE, JPN, VIN# JH2JE013-XM100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KZ4-A90.

11100-KZ4-L10

Unavailable

1

CRANKCASE, R. This part replaces 11100-KZ4-J10.

11100-KZ4-L10

Unavailable

1

CRANKCASE, R.

11100-KZ4-L10

Unavailable

2

GASKET, CRANKCASE

11191-KZ4-J10

Unavailable

3

CRANKCASE, L. This part replaces 11200-KZ4-A90.

11200-KZ4-L10

Unavailable

3

CRANKCASE, L. This part replaces 11200-KZ4-J10.

11200-KZ4-L10

Unavailable

3

CRANKCASE, L.

11200-KZ4-L10

Unavailable

4

TUBE, BREATHER

11211-ML3-910

$9.00

5

VALVE ASSY., REED

14100-KZ4-J11

Unavailable

6

REED VALVE ONLY

14111-KZ4-J11

Unavailable

7

STOPPER, REED VALVE

14121-KZ4-J01

Unavailable

8

GASKET, REED VALVE

14132-KZ4-620

$6.40

9

INSULATOR, CARBURETOR

16221-KZ4-A10

Unavailable

10

BAND, INSULATOR

16223-KA4-740

Unavailable

11

LIFTER, CLUTCH

22810-KS6-700

$66.65

12

PLATE A, BEARING SETTING

23521-KW3-000

$4.46

13

BOLT, STUD (8X35) This part replaces 90012-KZ4-700.

90015-MR1-000

$5.48

13

BOLT, STUD (8X35)

90015-MR1-000

$5.48

14

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

16

BEARING, BALL (6204)

91001-KA3-711

$30.00

17

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-005.

91002-KA4-003

$21.67

18

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$24.38

19

BEARING, RADIAL BALL (20X42X11) (KOYO)

91004-KZ4-A11

$23.62

20

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$27.55

20

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

21

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

22

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

23

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$11.37

24

OIL SEAL (10X17X4) This part replaces 91201-VB3-802.

91206-VA3-J02

$2.10

24

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$2.10

24

OIL SEAL (10X17X4) This part replaces 91202-KA3-712.

91206-VA3-J02

$2.10

25

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

25

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.81

25

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

26

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$15.27

27

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

28

CLIP, WIRE HARNESS

91406-657-671

$9.42

29

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

30

BOLT, STUD (8X35)

92900-08035-3E

$2.25

31

SCREW, PAN (5X25)

93500-05025-0A

$1.49

32

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

33

SCREW-WASHER (3X6)

93892-03006-08

$1.49

34

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

35

PIN, DOWEL (8X14)

94301-08140

$2.25

36

PIN, DOWEL (10X16)

94301-10160

$2.28

37

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

38

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

39

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

40

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

41

BOLT, FLANGE (6X85)

96001-06085-00

$2.68

42

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

43

BEARING, RADIAL BALL (17X35X10)

91001-KZ4-J11

$16.18

44

BOLT, FLANGE (6X22)

96300-06022-00

$1.49
