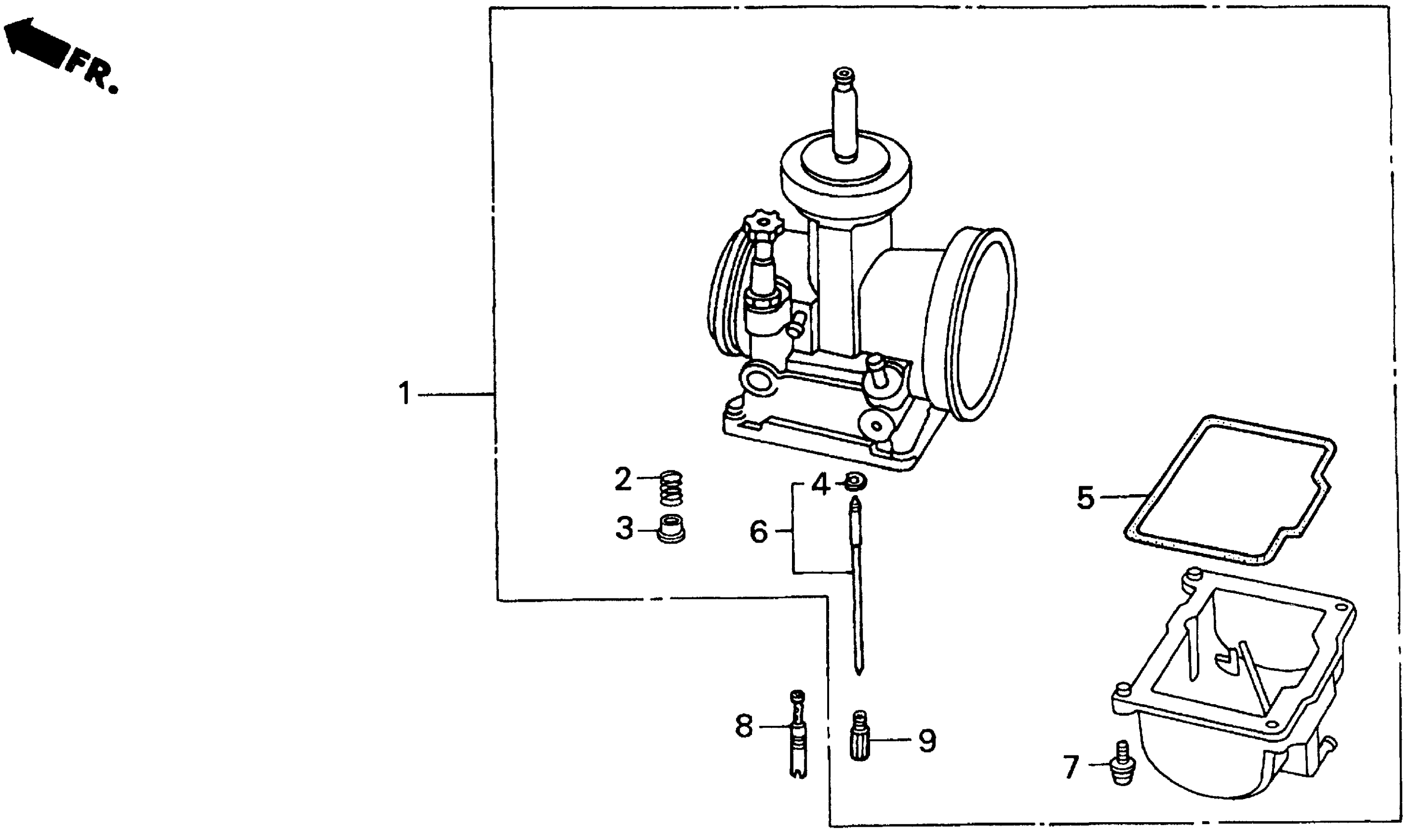

Honda CR125RA (99) MOTORCYCLE, JPN, VIN# JH2JE013-XM100001 CARBURETOR COMPONENT Diagram

#

Description
Price

1

PARTS KIT, CARBURETOR OPTIONAL | (Optional).

16020-KZ4-J11

Unavailable

2

SPRING, COMPRESSION COIL | (Optional).

16051-KA3-761

$14.94

3

COLLAR, SPRING SETTING | (Optional).

16066-KA3-761

Unavailable

4

CLIP, BAR | (Optional).

16115-GHB-610

$2.71

4

CLIP, BAR | (Optional). This part replaces 16115-169-004.

16115-GHB-610

$2.71

5

GASKET, FLOAT CHAMBER | (Optional).

16163-KZ4-J01

Unavailable

6

NEEDLE SET, JET (R1367LS) | (Optional).

16201-KZ3-A20

Unavailable

6

NEEDLE SET, JET (R1366LS) | (Optional).

16201-KZ4-J11

Unavailable

6

NEEDLE SET, JET (R1368LS) | (Optional).

16202-KZ3-A20

Unavailable

6

NEEDLE SET, JET (R1369LS) | (Optional).

16203-KZ3-A20

Unavailable

6

NEEDLE SET, JET (R1370LS) | (Optional).

16204-KZ3-A20

Unavailable

7

SCREW-WASHER (4X16) | (Optional).

93892-04016-08

$0.67

7

SCREW-WASHER (4X16) | (Optional). This part replaces 93892-04016-18.

93892-04016-08

$0.67

8

JET, SLOW (#58) | (Optional).

99103-KA3-0580

Unavailable

8

JET, SLOW (#60) | (Optional).

99103-KA3-0600

Unavailable

8

JET, SLOW (#48) | (Optional). This part replaces 99103-440-0480.

99103-GBF-0480

$13.09

8

JET, SLOW (#50) | (Optional).

99103-440-0500

Unavailable

8

JET, SLOW (#58) | (Optional). This part replaces 99103-440-0580.

99103-KA3-0580

Unavailable

8

JET, SLOW (#60) | (Optional). This part replaces 99103-440-0600.

99103-KA3-0600

Unavailable

8

JET, SLOW (#52) | (Optional).

99103-4400520

$11.62

9

JET, MAIN (#162) | (Optional).

99113-GHB-1620

Unavailable

9

JET, MAIN (#165) | (Optional).

99113-GHB-1650

$8.45

9

JET, MAIN (#168) | (Optional).

99113-GHB-1680

$8.45

9

JET, MAIN (#170) | (Optional). This part replaces 99113-GHB-1700.

99101-357-1700

$8.45

9

JET, MAIN (#172) JET, MAIN (#155) | (Optional). This part replaces 99113-GHB-1720.

99101-357-1720

$8.45

9

JET, MAIN (#180) | (Optional).

99113-GHB-1800

Unavailable

9

JET, MAIN (#182) | (Optional).

99113-GHB-1820

Unavailable

9

JET, MAIN (#185) | (Optional).

99113-GHB-1850

Unavailable

9

JET, MAIN (#188) | (Optional).

99113-GHB-1880

$9.09

9

JET, MAIN (#175) | (Optional). This part replaces 99113-GHB-1750.

99101-357-1750

$8.45

9

JET, MAIN (#190) | (Optional).

99113-GHB-1900

$9.09
