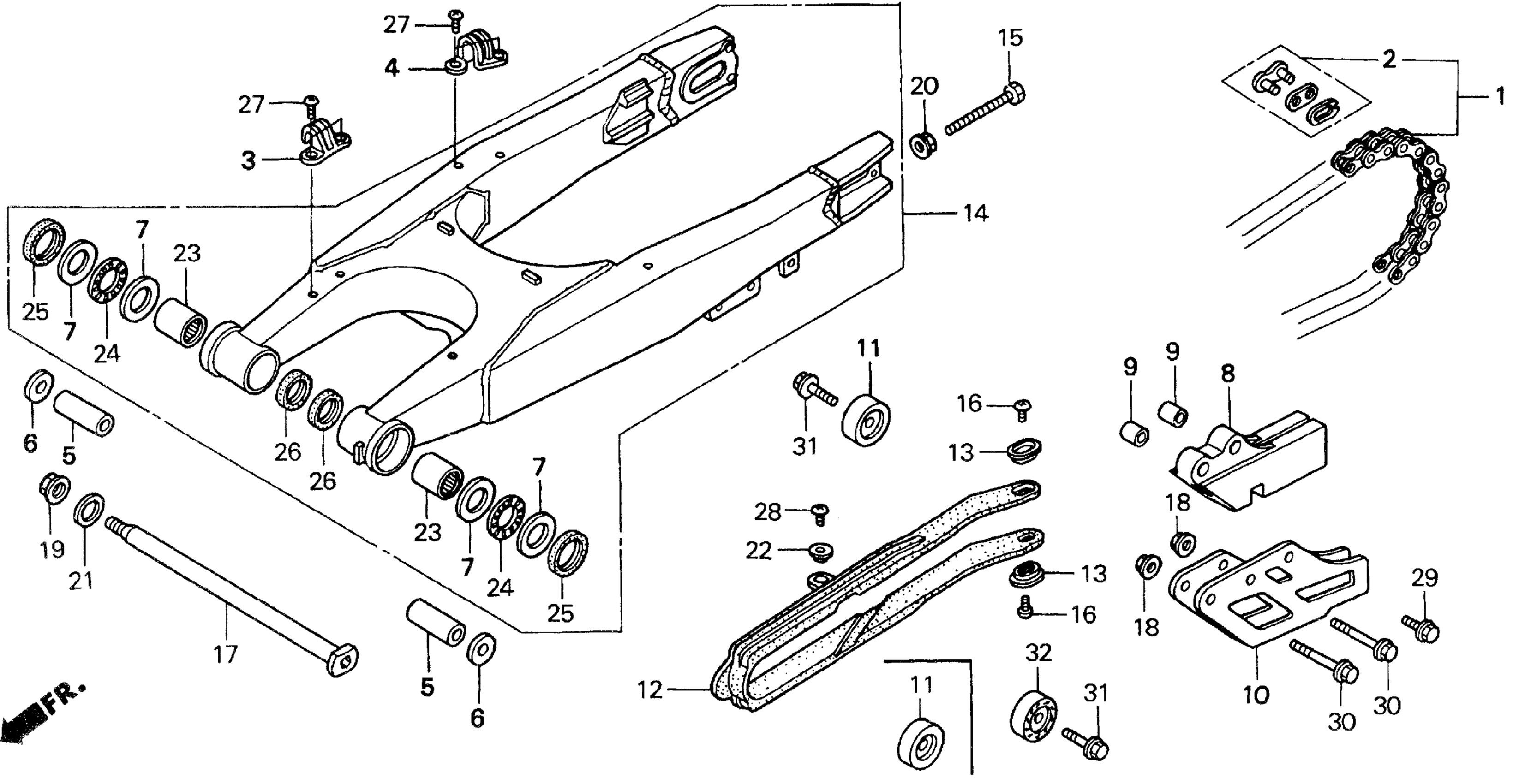

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 SWINGARM Diagram

CHAIN, DRIVE (DID520DM-RB) (114L) (DAIDO)

40530-KZ3-B01

Unavailable

CHAIN, DRIVE (RK520KZ6-RJ) (114L) (RK EXCEL)

40530-KZ3-B02

Unavailable

MASTER LINK (DAIDO)

40531-KZ4-B01

$6.00

MASTER LINK (RK EXCEL)

40531-KZ4-B02

Unavailable

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

GUIDE, RR. BRAKE HOSE

43468-KZ3-B00

$5.17

COLLAR, SWINGARM SIDE (54MM) This part replaces 52141-KZ4-890.

52142-KZ4-J40

$16.91

COLLAR, SWINGARM SIDE

52142-KZ3-860

Unavailable

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

GUIDE, CHAIN

52146-ML3-911

$29.04

COLLAR, CHAIN GUIDE

52148-MAC-780

$6.28

PLATE, CHAIN GUIDE

52156-ML3-910

$58.87

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

SLIDER, CHAIN

52170-KZ3-B01

$76.89

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

SWINGARM SUB-ASSY., RR. This part replaces 52200-KZ3-J00.

52200-KZ3-J10

Unavailable

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

SCREW, PAN (5X8)

90115-KV3-700

$2.61

BOLT, SWINGARM

90117-KZ3-B00

$49.82

NUT, U (6MM)

90301-473-003

$4.07

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.81

NUT, HEX. (8MM)

90309-357-000

$3.40

WASHER (26X14X2.8)

90501-GAH-000

$6.63

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.63

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

BEARING, NEEDLE THRUST

91072-KZ3-861

$13.46

DUST SEAL (30X37X4)

91253-KZ3-861

$8.68

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.92

SCREW, PAN (5X8)

93500-05008-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0G

$1.49

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

BOLT, FLANGE (6X12) This part replaces 96400-06012-00.

96300-06012-00

$1.49

BOLT, FLANGE (6X50)

96400-06050-00

$2.23

BOLT, FLANGE (8X35)

96400-08035-00

$1.51
