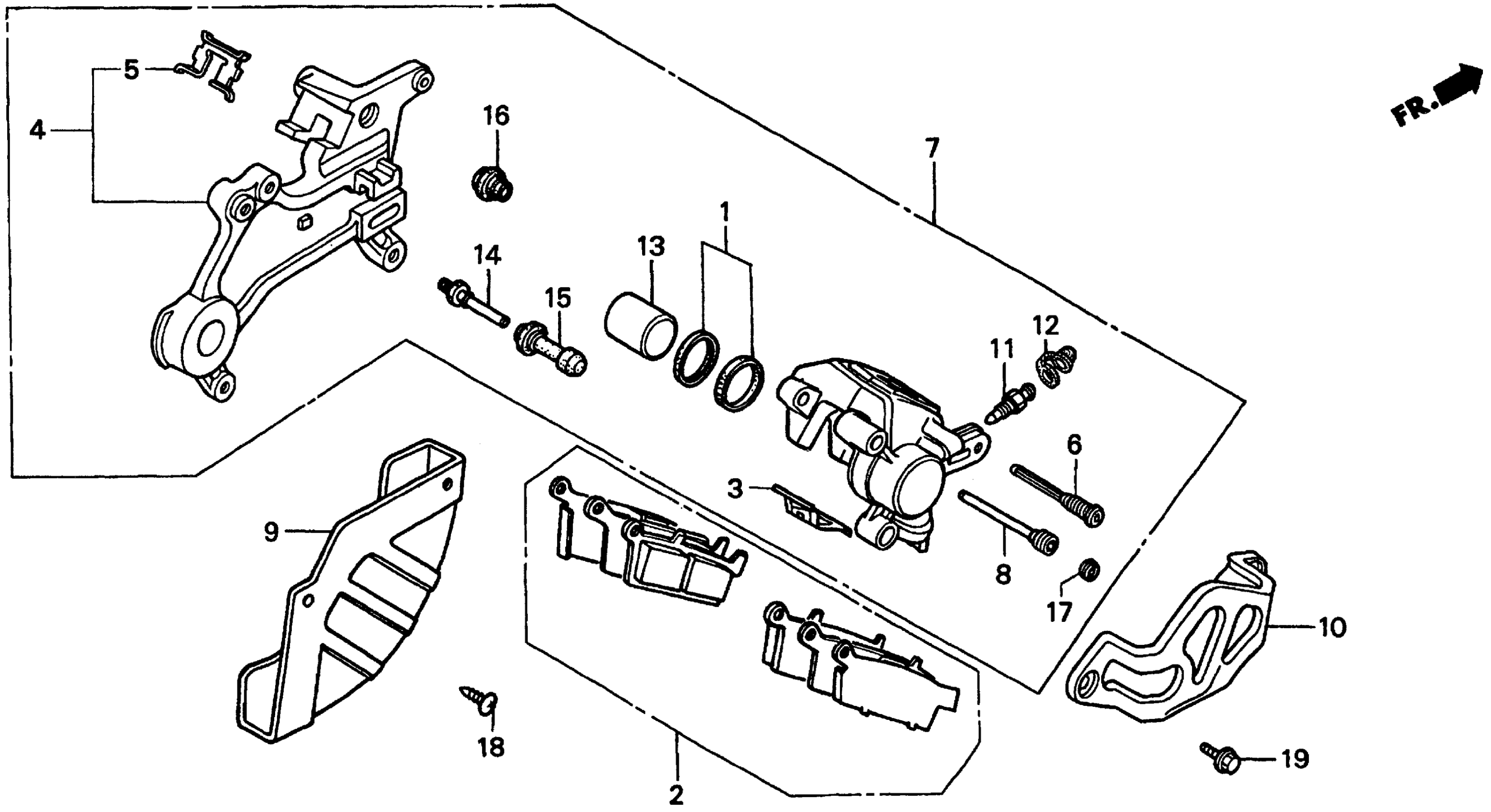

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$38.49

SPRING, PAD

43108-MY6-671

$5.28

BRACKET, RR.

43110-KZ3-B01

Unavailable

RETAINER

43112-KS6-701

$6.07

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-KZ3-B01

Unavailable

PIN, HANGER

43215-ML3-911

$11.69

COVER, RR. DISK

43330-KS6-700

$25.49

GUARD, RR. CALIPER *TNATURAL* (NATURAL)

43340-KZ3-B00ZA

$21.43

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-ML4-006

$37.87

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

SCREW, SPECIAL (6X10)

90190-KZ3-B00

Unavailable

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

$1.49
