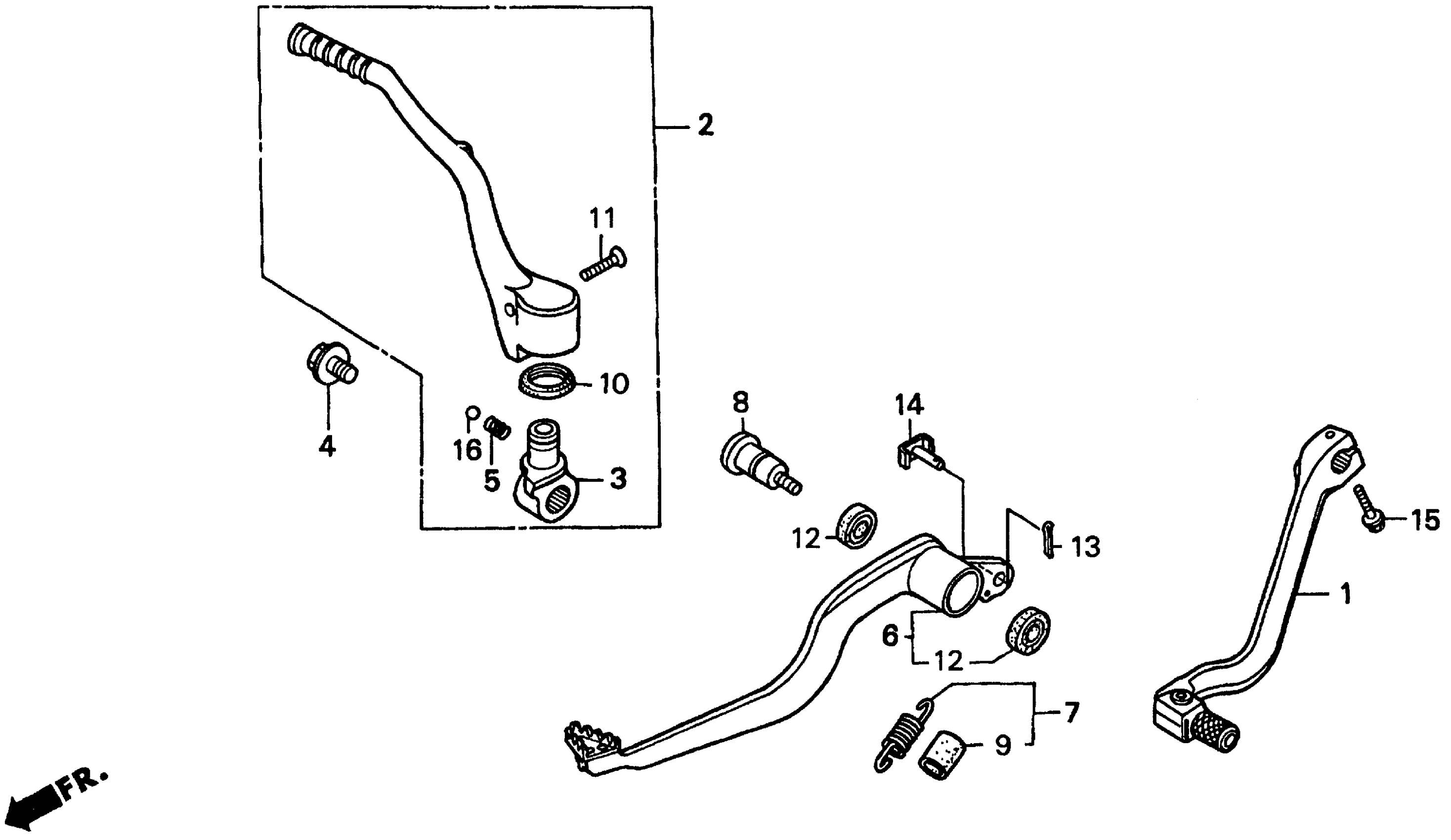

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 PEDAL Diagram

PEDAL, CHANGE This part replaces 24700-KZ4-J00.

24700-KZ4-J10

Unavailable

ARM ASSY., KICK STARTER

28300-KZ4-J00

Unavailable

JOINT, KICK ARM

28302-KZ4-J00

Unavailable

BOLT, KICK JOINT

28306-KAE-000

$11.89

SPRING, KICK STARTER

28333-KK0-000

$2.51

PEDAL, RR. BRAKE

46510-KZ4-J00

Unavailable

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.48

SHAFT, BRAKE PIVOT

46513-KZ3-600

$16.25

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BOLT, KICK ARM

90101-MAC-680

$5.92

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
