Description

Price

1

MUFFLER, EX.

18300-KZ4-J00

Unavailable

2

STAY, RR. CHAMBER

18325-KS6-000

$22.52

3

MUFFLER

18330-KZ4-A70

Unavailable

4

SPRING, EX. PIPE

18332-KS7-830

$11.53

5

RUBBER, MUFFLER

18334-KA3-830

$3.89

6

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.60

7

WOOL, GLASS

18340-KZ4-860

Unavailable

8

BODY, MUFFLER

18350-KZ4-A70

Unavailable

9

NUT, CHAMBER SPRING

18354-KS6-000

$4.98

10

STAY, CHAMBER

18355-KS6-000

$23.32

11

RUBBER, MUFFLER CONNECTING PIPE

18365-KZ4-000

$19.17

12

BOLT-WASHER (6X16)

90102-KS6-000

$9.16

13

SCREW, TORUS (6X12)

90103-680-003

$4.25

14

WASHER, FENDER MOUNTING

90506-430-000

$2.92

15

WASHER, CRANK ARM

90545-044-000

$1.75

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

19

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

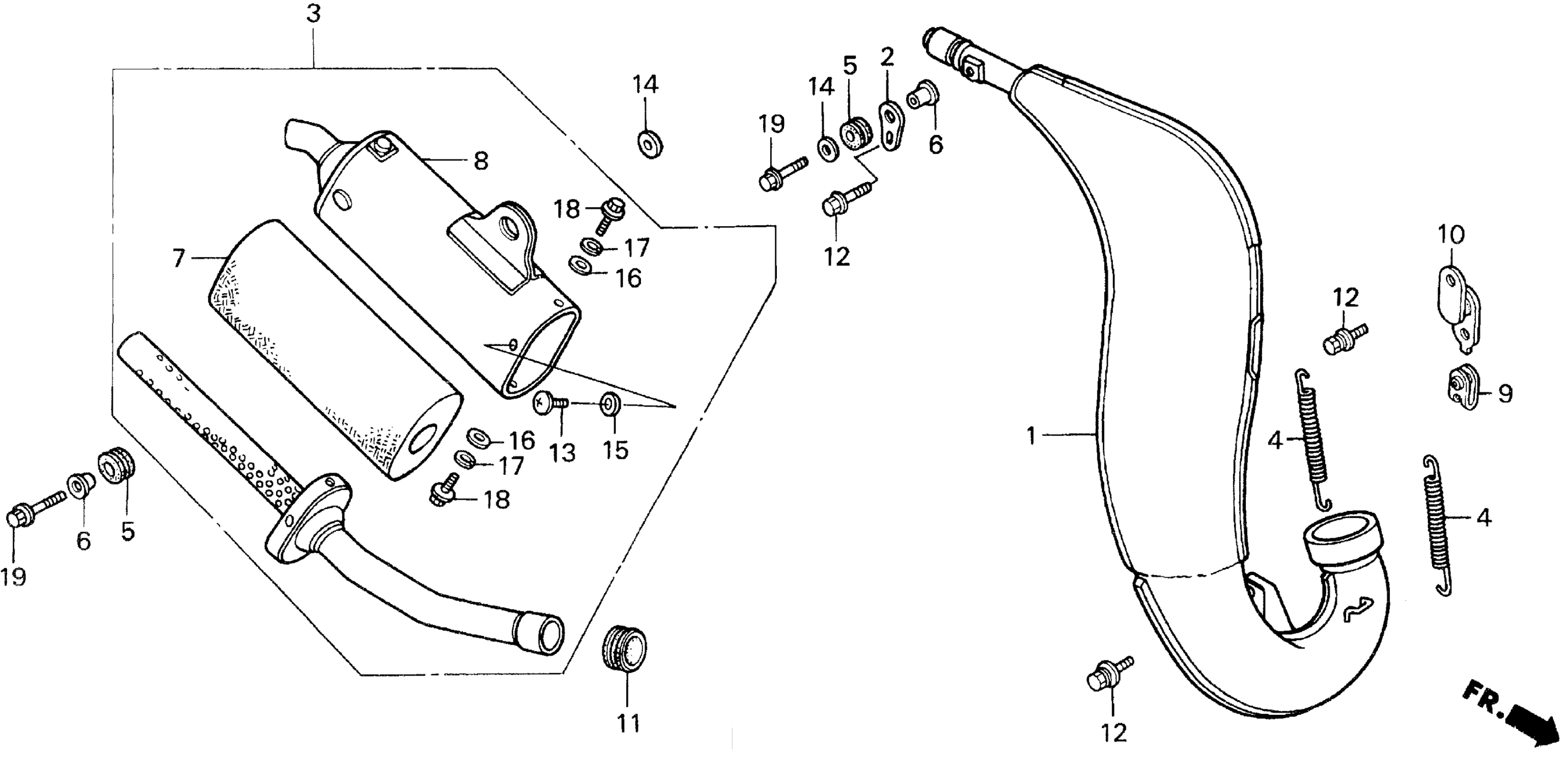

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 MUFFLER Diagram

MUFFLER, EX.

STAY, RR. CHAMBER

MUFFLER

SPRING, EX. PIPE

RUBBER, MUFFLER

COLLAR, MUFFLER SETTING

WOOL, GLASS

BODY, MUFFLER

NUT, CHAMBER SPRING

STAY, CHAMBER

RUBBER, MUFFLER CONNECTING PIPE

BOLT-WASHER (6X16)

SCREW, TORUS (6X12)

WASHER, FENDER MOUNTING

WASHER, CRANK ARM

WASHER, PLAIN (6MM) This part replaces 94101-06000.

WASHER, PLAIN (6MM) This part replaces 94101-06080.

WASHER, PLAIN (6MM)

WASHER, SPRING (6MM)

BOLT, FLANGE (6X12)

BOLT, FLANGE (6X25)
