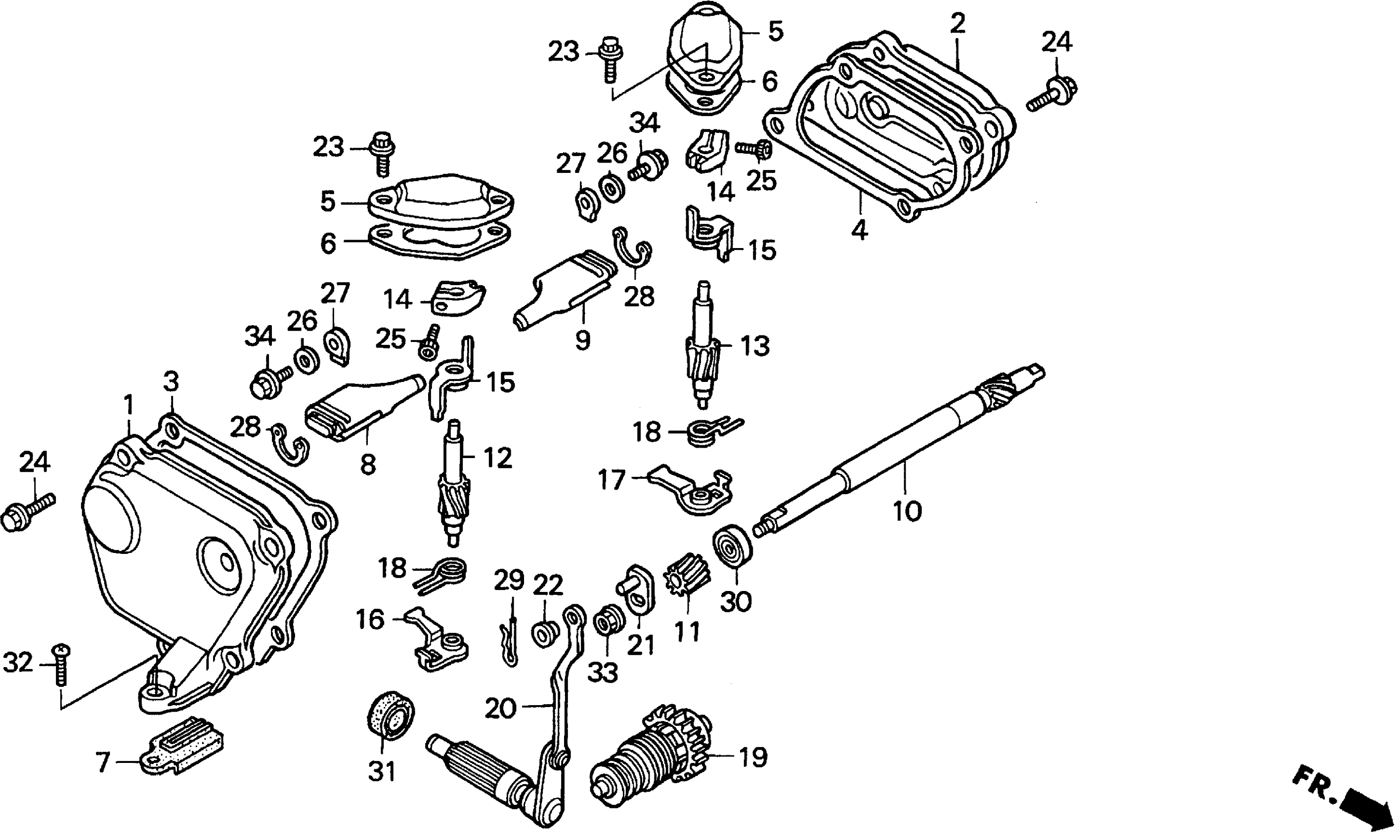

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 EXHAUST VALVE Diagram

#

Description
Price

1

COVER, R. CYLINDER SIDE

12106-KZ4-890

Unavailable

2

COVER, L. CYLINDER SIDE

12107-KZ4-700

Unavailable

3

GASKET, R. CYLINDER

12108-KZ4-620

$11.54

4

GASKET, L. CYLINDER

12109-KZ4-620

$8.54

5

COVER, CYLINDER (UPPER)

12111-KZ4-700

Unavailable

6

GASKET, CYLINDER COVER (UPPER)

12112-KZ4-620

$4.74

7

SEAL, R. CYLINDER COVER

12121-KZ4-700

$15.40

8

VALVE ASSY., R. EX.

14600-KZ4-J00

Unavailable

9

VALVE ASSY., L. EX.

14700-KZ4-J00

Unavailable

10

SHAFT, PINION

18511-KZ4-700

Unavailable

11

GEAR, R. PINION (6T)

18514-KZ4-700

Unavailable

12

SHAFT, R. PIVOT

18516-KZ4-700

Unavailable

13

SHAFT, L. PIVOT

18517-KZ4-700

Unavailable

14

HOLDER

18521-KZ4-620

Unavailable

15

ARM, HOLDER

18523-KZ4-700

$11.85

16

LEVER, R. EX. VALVE

18526-KZ4-700

Unavailable

17

LEVER, L. EX. VALVE

18527-KZ4-700

Unavailable

18

SPRING, EX. VALVE

18531-KZ4-700

Unavailable

19

GOVERNOR

19200-KZ4-J00

Unavailable

20

TIE ROD

19300-KZ4-891

Unavailable

21

ARM B, PINION SHAFT

19320-KZ4-700

Unavailable

22

COLLAR, FLANGE (4MM)

19323-KZ4-700

$6.05

23

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

24

BOLT, FLANGE (6X20)

90051-KS7-830

$2.33

25

BOLT, SOCKET (5X12)

90089-KR0-000

$2.92

26

WASHER, DRUM STOPPER

90417-360-000

$1.74

27

PLATE, STOPPER

90441-KZ4-860

Unavailable

28

CIRCLIP, SPECIAL (10MM)

90601-KS7-003

$2.92

29

PIN, LOCK (4MM)

90604-KZ4-700

$2.54

30

BEARING, CHAIN TENSIONER ROLLER

91072-KA4-702

Unavailable

31

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.67

32

SCREW, PAN (5X16)

93500-05016-0A

$1.49

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
