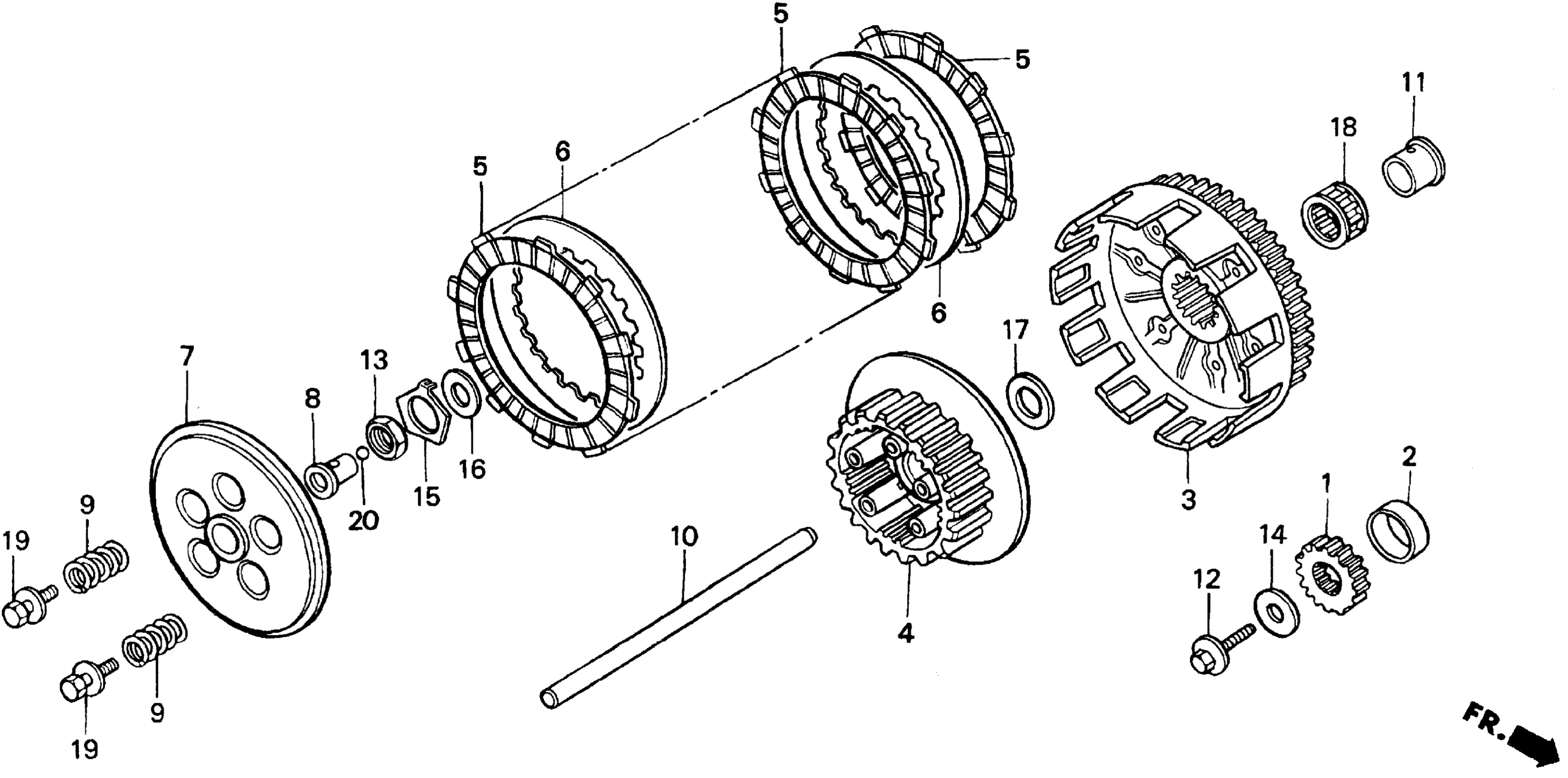

Honda CR125RA (98) MOTORCYCLE, JPN, VIN# JH2JE010-WM900001 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

13615-KS6-700

$64.79

2

COLLAR, DRIVE GEAR

13617-KS6-700

Unavailable

3

CLUTCH (OUTER)

22100-KZ4-700

Unavailable

4

CENTER, CLUTCH This part replaces 22120-KS6-000.

22120-KS6-010

Unavailable

5

DISK, CLUTCH FRICTION

22201-KS6-700

$17.68

6

PLATE, CLUTCH

22321-KA3-710

$19.18

7

PLATE, CLUTCH PRESSURE

22351-KS6-000

Unavailable

8

PIECE, CLUTCH LIFTER

22352-KA4-000

Unavailable

9

SPRING, CLUTCH

22401-KA3-710

$4.66

10

ROD, CLUTCH LIFTER

22850-KZ4-A90

$16.01

10

ROD, CLUTCH LIFTER This part replaces 22850-KZ4-000.

22850-KZ4-A90

$16.01

11

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$35.79

12

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

13

NUT (18MM)

90235-KA4-000

$11.09

14

WASHER, PLAIN (10MM)

90401-ML3-790

$6.85

15

WASHER, LOCK (18MM) This part replaces 90441-HA2-670.

90445-KAE-000

$5.12

16

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

17

WASHER, THRUST (20MM)

90456-KS6-000

$10.84

18

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$31.47

19

BOLT-WASHER (6X20)

93404-06020-08

$1.62

20

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
