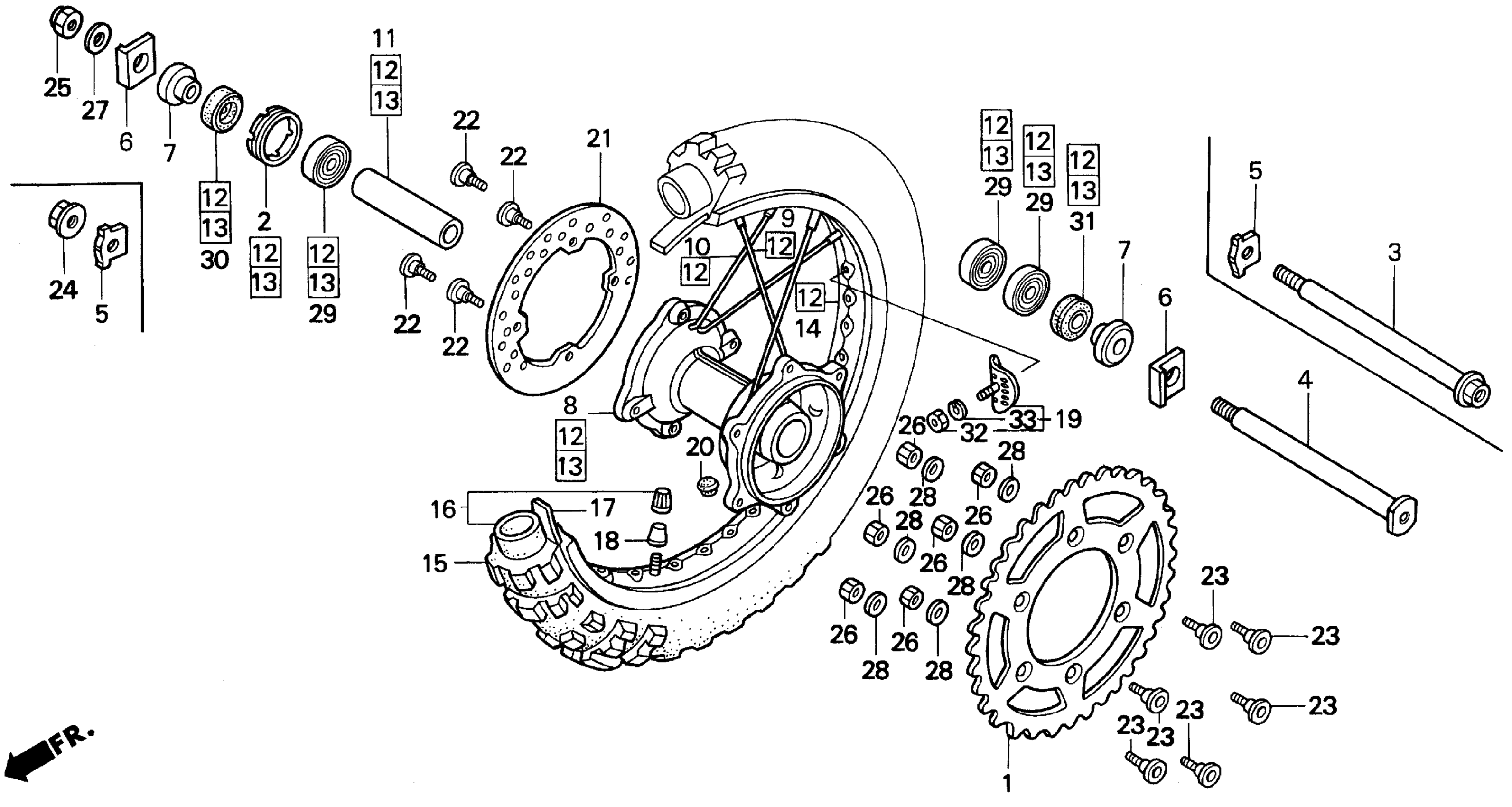

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 REAR WHEEL 92-97 Diagram

SPROCKET, FINAL DRIVEN (49T)

41201-KZ4-B00

Unavailable

SPROCKET, FINAL DRIVEN (48T) | (Optional). This part replaces 41202-KZ4-B00.

41202-KZ3-J40

$122.82

SPROCKET, FINAL DRIVEN (50T) | (Optional).

41203-KZ4-B00

Unavailable

RETAINER, RR. WHEEL BEARING

41231-KZ4-000

$27.90

AXLE, RR. WHEEL

42301-KZ3-600

Unavailable

COLLAR, RR. AXLE

42306-KZ3-600

Unavailable

COLLAR, RR. WHEEL SIDE

42311-KZ3-600

$29.61

SPOKE SET A, RR. (210.00MM)

06420-KZ4-B00

$5.37

SPOKE SET B, RR. (207.0MM)

06421-KZ4-B00

$5.37

COLLAR, RR. DISTANCE

42620-ML3-681

Unavailable

WHEEL SUB-ASSY., RR.

42650-KZ4-B00

Unavailable

HUB SUB-ASSY., RR.

42635-MAC-680

Unavailable

RIM, RR. WHEEL (19X1.85) (BS)

42701-KZ4-B01

Unavailable

TIRE, RR. (100/90-19) (57M K695) (DUNLOP)

42711-KZ4-611

Unavailable

TUBE, TIRE (DUNLOP) (NOT AVAILABLE) This part replaces 42712-KZ4-611.

44712-300-004

$65.43

TUBE, TIRE (DUNLOP)

44712-300-004

$65.43

FLAP, TIRE (DUNLOP) This part replaces 42713-KZ4-611.

42713-KZ3-611

$5.90

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.90

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

CAP, RIM HOLE

42717-329-000

$4.21

DISK, RR. BRAKE

43351-ML3-790

Unavailable

BOLT, DISK (8X22)

90105-MK5-010

$4.94

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (18MM)

90305-KZ4-891

$15.83

NUT, U (8MM)

90309-ML3-791

$4.35

WASHER (18X32X2)

90401-KZ4-890

$4.48

WASHER (8MM)

90465-MC4-000

$2.51

BEARING, RADIAL BALL (6004)

91062-KS6-831

$31.72

DUST SEAL (28X38X7)

91251-KZ4-003

$10.15

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
