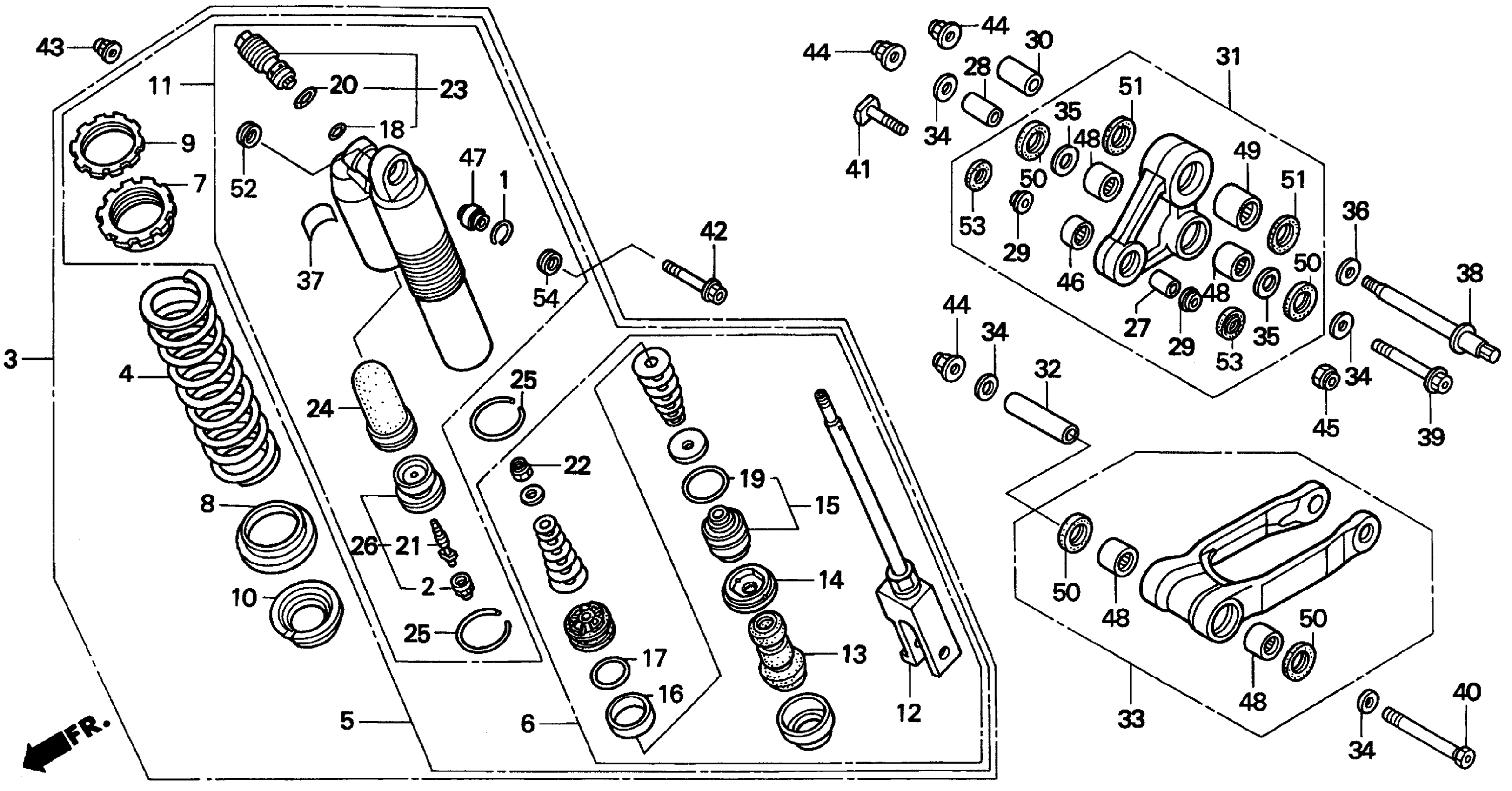

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 REAR SHOCK ABSORBER 97 Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.97

2

CAP, AIR VALVE

51453-KK0-004

$4.46

3

SHOCK ABSORBER, RR.

52400-KZ4-B11

Unavailable

4

SPRING, RR. SHOCK ABSORBER (47N/MM,4.8KGF/MM) (KAYABA) | (Optional).

52401-KZ4-B01

Unavailable

4

SPRING, RR. SHOCK ABSORBER (5.2KGF/MM) (KAYABA) | (Optional).

52402-KZ4-601

Unavailable

4

SPRING, RR. SHOCK ABSORBER (49N/MM,5.0KGF/MM) (KAYABA)

52403-KZ4-A11

Unavailable

5

DAMPER, RR.

52410-KZ4-B11

Unavailable

6

ROD, PISTON

52421-KZ4-B11

Unavailable

7

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

8

WASHER, SPRING SEAT

52422-KZ4-A11

Unavailable

9

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

10

SEAT, SPRING (LOWER) This part replaces 52424-KZ4-A11.

52424-KZ4-J11

Unavailable

11

CASE ASSY., SUB

52425-KZ4-A21

Unavailable

12

ROD

52426-KZ4-B01

Unavailable

13

RUBBER, BUMPER

52427-KZ4-901

$13.93

14

CAP, CASE

52428-KZ4-901

Unavailable

15

CASE, ROD GUIDE

52429-KZ4-901

$29.15

16

RING, PISTON

52431-MAC-681

$14.02

17

O-RING (37.5X2.0)

52432-KZ4-901

$4.46

18

O-RING (21.5X1.5)

52433-MAC-741

$3.48

19

O-RING (39.7X3.5)

52434-KZ4-901

Unavailable

20

O-RING (25.5X2.0)

52435-MAC-741

$5.64

21

CORE, VALVE

52437-KA3-731

Unavailable

22

NUT, HEX. (12MM)

52438-KA3-731

$3.10

23

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MAC-741

Unavailable

24

BLADDER

52451-KZ4-901

$24.72

25

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

26

CAP, BLADDER

52453-KZ4-003

Unavailable

27

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

28

COLLAR, CUSHION ARM

52464-KZ3-860

Unavailable

29

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

30

COLLAR, CUSHION ARM

52464-KZ4-710

Unavailable

31

ARM SET, CUSHION

52465-KZ4-B00

Unavailable

32

COLLAR, CONNECTING ROD

52473-KZ3-860

Unavailable

33

ROD SET, RUBBER CONNECTING

52475-KZ3-600

Unavailable

34

COLLAR, CONNECTING ROD SIDE

52475-KZ3-860

$13.39

35

WASHER, THRUST

52476-KZ3-860

$11.62

36

COLLAR (15.2X24X3.5)

52477-KZ4-710

Unavailable

37

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

38

BOLT, RUBBER ARM PIVOT

90128-KZ4-710

Unavailable

39

BOLT, RUBBER ARM (15X87) (TSUKIBOSHI)

90129-KZ3-861

Unavailable

40

BOLT, RUBBER CONNECTING ROD (15X113)

90130-KZ4-710

Unavailable

41

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

42

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

43

NUT, AXLE (10MM)

90304-GA6-003

$2.89

44

NUT, U (14MM)

90305-GE8-003

$3.86

44

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

45

NUT, U (10MM)

90306-KZ4-711

$3.74

46

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

47

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

48

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

49

BEARING, NEEDLE (25X32X26)

91078-KZ4-711

Unavailable

50

DUST SEAL (27X34X4)

91261-KZ3-861

$7.79

51

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

52

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

53

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17

54

DUST SEAL (16X26X3)

91351-MAC-671

$5.78
