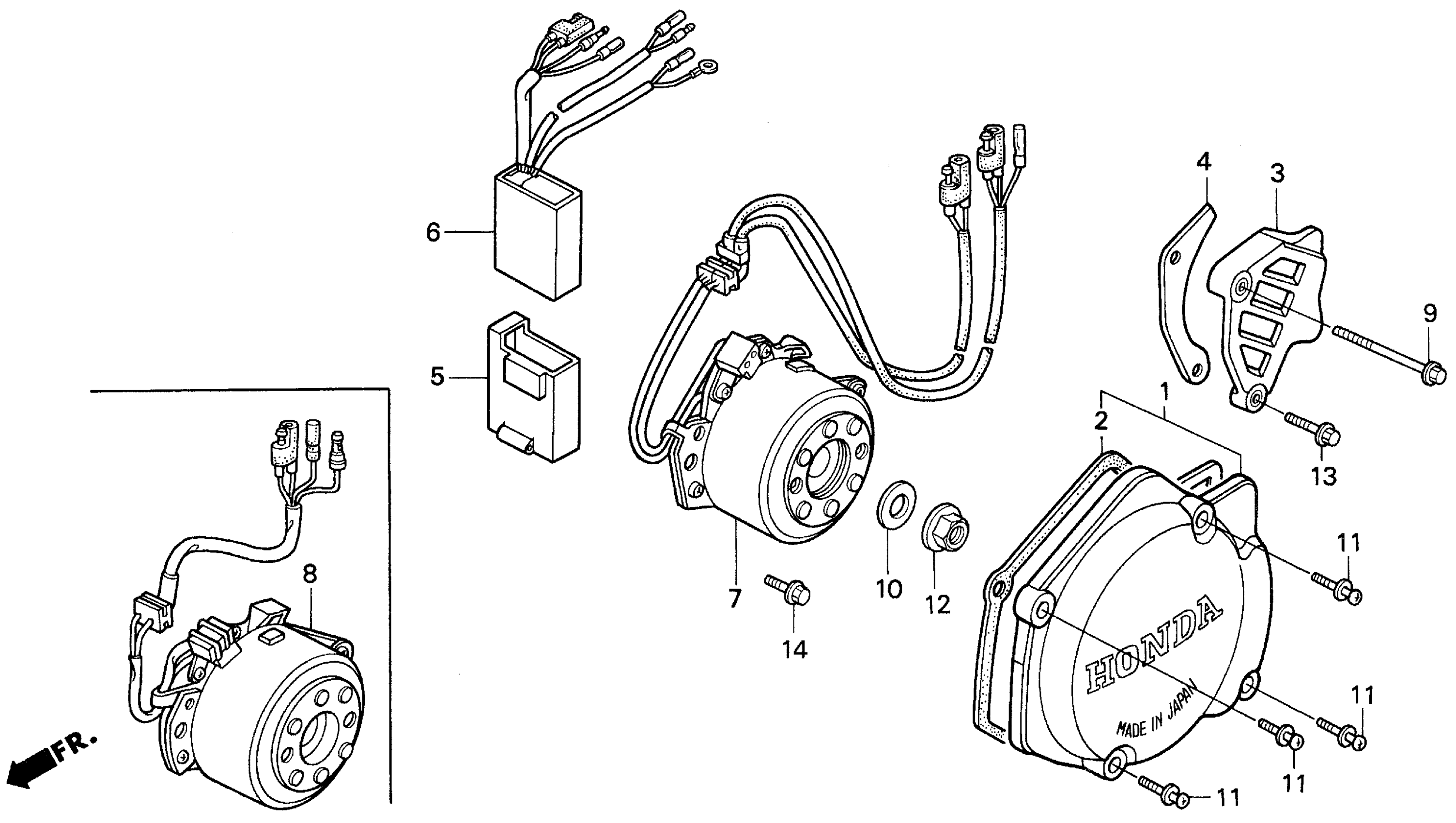

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., L. CRANKCASE

11350-KZ4-620

Unavailable

2

SEAL, L. COVER

11352-KS6-700

Unavailable

3

COVER, DRIVE SPROCKET

23810-KZ4-620

$25.33

4

GUIDE, DRIVE CHAIN (12T)

23812-KZ4-B00

Unavailable

5

CUSHION, IGNITION CONTROL MODULE

30401-KZ4-B01

Unavailable

6

MODULE, IGNITION CONTROL (CDI)

30410-KZ4-B01

Unavailable

8

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO)

31100-KZ4-A11

Unavailable

9

BOLT, FLANGE (6X120)

90053-KZ4-620

$6.51

10

WASHER, PLAIN (12MM)

90437-611-000

$3.92

11

SCREW-WASHER (6X28)

93891-06028-00

$0.78

12

NUT, FLANGE (12MM)

94050-12000

$0.94

13

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

14

BOLT, FLANGE (6X18)

96300-06018-00

$1.17
