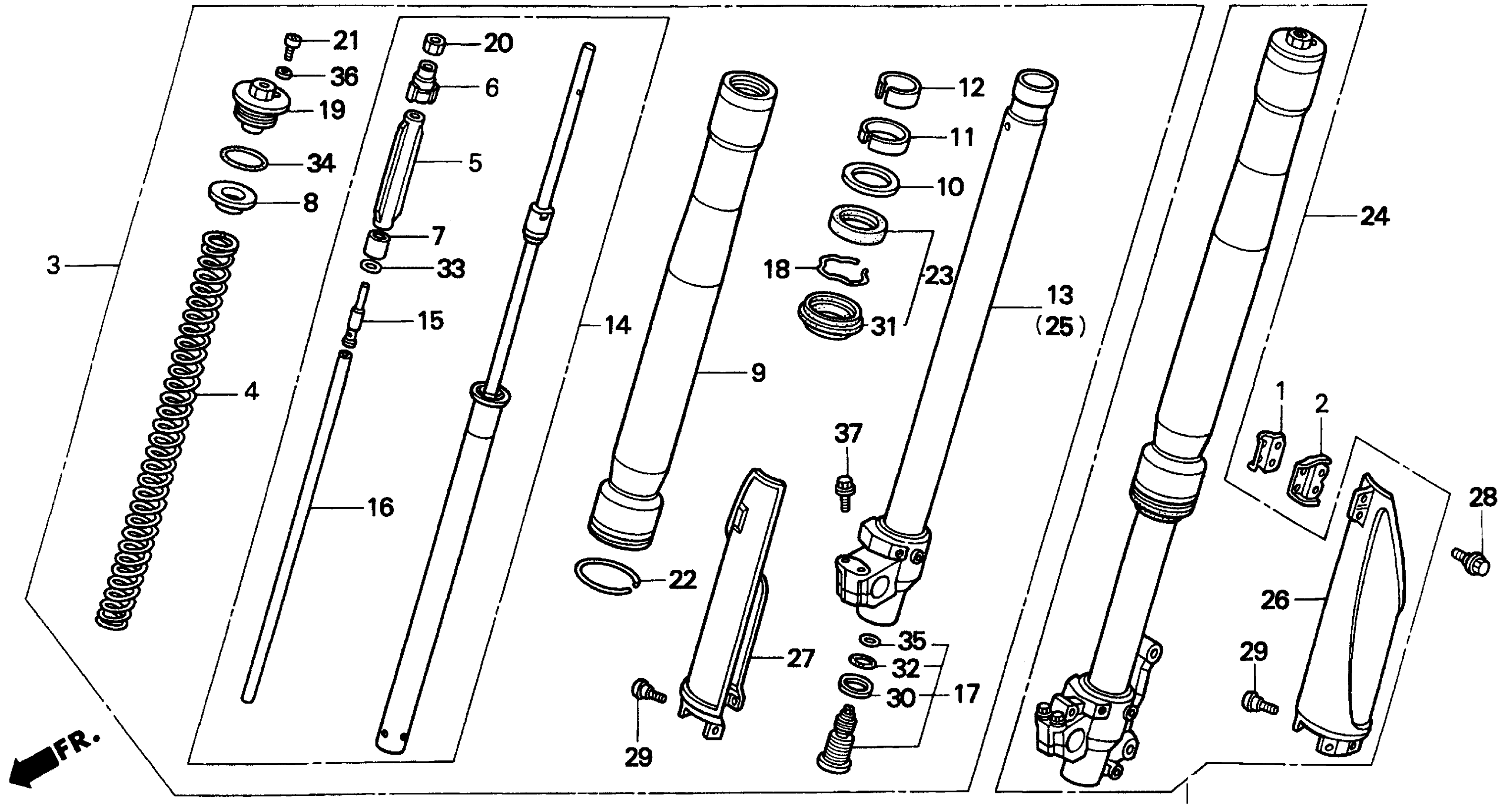

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 FRONT FORK 95-97 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. *TNATURAL* (KAYABA) (NATURAL)

51400-KZ4-B01ZA

Unavailable

4

SPRING, FR. FORK (3.90N/MM,0.40KGF/MM) (KAYABA)

51401-KZ4-B01

Unavailable

4

SPRING, FR. FORK (3.70N/MM,0.38KGF/MM) (KAYABA) | (Optional).

51403-KZ4-B01

Unavailable

5

GUIDE, SPRING

51404-MAC-741

Unavailable

6

COLLAR

51405-MAC-741

$8.92

7

COLLAR

51406-KZ4-B01

Unavailable

8

SEAT, SPRING

51408-MAC-741

Unavailable

9

TUBE (OUTER)

51410-KZ4-B01

Unavailable

10

RING, BACK-UP

51412-MAC-741

Unavailable

11

BUSH, GUIDE

51414-MAC-741

$25.92

12

BUSH, SLIDER

51415-MAC-741

Unavailable

13

PIPE, R. SLIDE

51425-KZ4-B01

Unavailable

14

DAMPER, FR. (KAYABA)

51430-KZ4-B01

Unavailable

15

PLUNGER

51436-MAC-781

Unavailable

16

COLLAR, REBOUND NEEDLE This part replaces 51437-KZ4-B01.

51437-MAC-741

Unavailable

17

BOLT, CENTER

51441-KZ4-B11

Unavailable

18

RING, OIL SEAL STOP

51447-MAC-741

$6.95

19

BOLT ASSY., FR. FORK

51450-MAC-741

Unavailable

20

NUT, LOCK

51451-KZ4-711

Unavailable

21

BOLT, PLUG

51456-KZ4-711

Unavailable

22

RING, WEAR

51476-KZ4-711

$7.62

23

SEAL SET, FR. FORK This part replaces 51490-MAC-741.

51490-KZ4-J21

$23.92

24

FORK ASSY., L. FR. *TNATURAL* (KAYABA) (NATURAL)

51500-KZ4-B01ZA

Unavailable

25

PIPE, L. SLIDE

51525-KZ4-B01

Unavailable

26

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL) This part replaces 51610-MAC-780ZA.

51610-MAC-781ZA

Unavailable

26

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51610-MAC-781ZA

Unavailable

27

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL) This part replaces 51620-MAC-780ZA.

51620-MAC-781ZA

Unavailable

27

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51620-MAC-781ZA

Unavailable

28

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

29

BOLT, PROTECTOR

90113-MAC-780

$3.53

30

WASHER, SPECIAL

90544-MAC-741

Unavailable

31

DUST SEAL This part replaces 91254-MAC-741.

91254-KZ4-J21

$8.20

32

O-RING (24.7X2.4)

91256-MAC-741

Unavailable

33

O-RING (12.3X2.4)

91257-KZ4-711

$2.70

34

O-RING (41.7X3.5)

91258-MAC-741

$8.03

35

O-RING (21.9X2.0)

91259-MAC-741

Unavailable

36

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

37

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

37

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28
