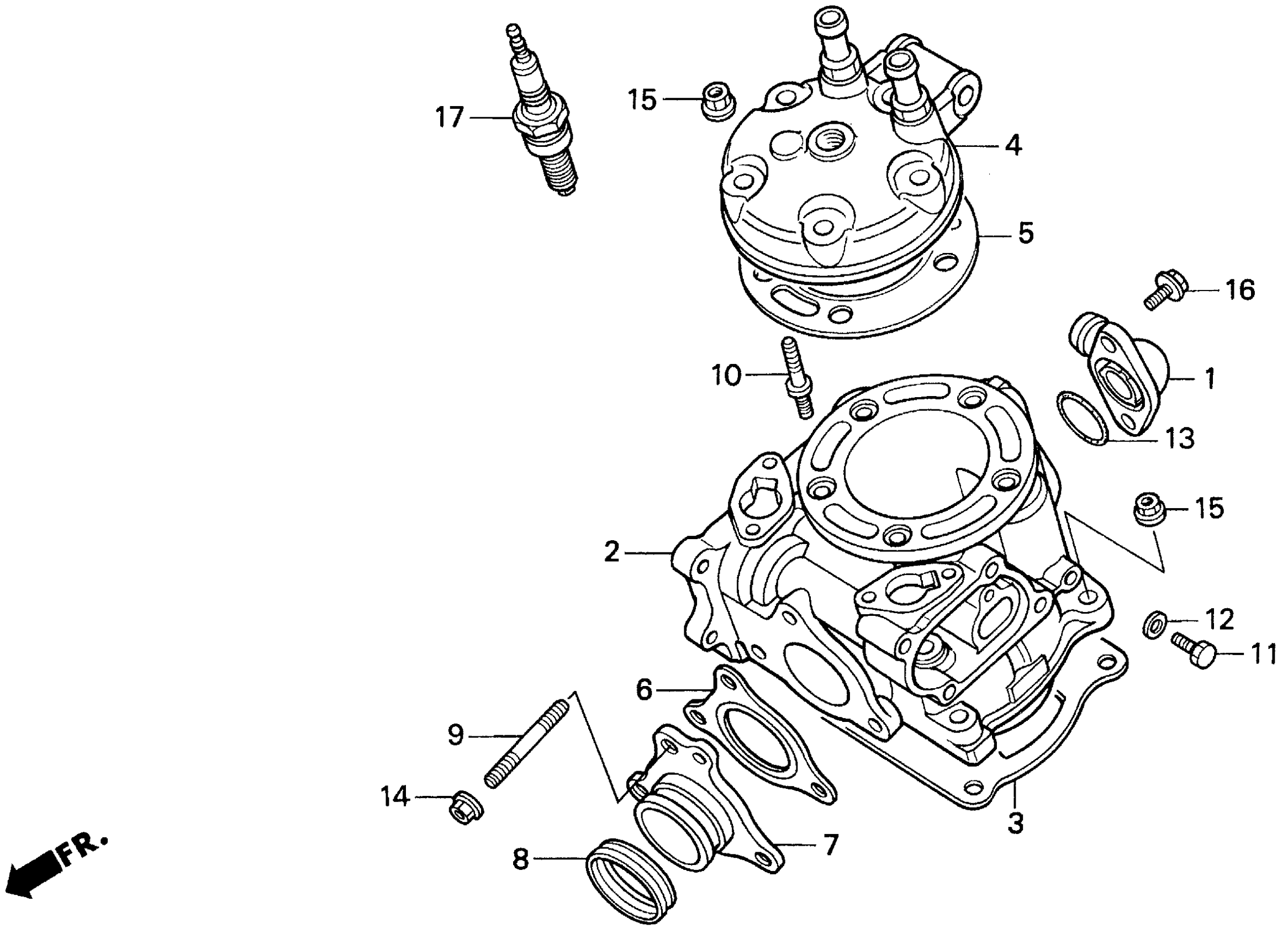

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 CYLINDER HEAD Diagram

#

Description
Price

1

JOINT, WATER HOSE

12103-KZ4-700

Unavailable

2

CYLINDER A

12110-KZ4-A10

Unavailable

2

CYLINDER A This part replaces 12120-KZ4-A10.

12110-KZ4-A10

Unavailable

3

GASKET, CYLINDER

12191-KZ4-620

$13.80

4

CYLINDER HEAD

12200-KZ4-860

Unavailable

5

GASKET, CYLINDER HEAD

12251-KZ4-701

$21.71

6

GASKET, EX. JOINT

18291-KZ4-700

$7.05

7

JOINT, EX. PIPE

18352-KZ4-700

Unavailable

8

SEAL, EX. PIPE

18359-KS7-000

$12.49

9

BOLT, STUD (6X24)

90006-HA8-630

$4.04

10

BOLT, SPECIAL STUD

90011-KZ4-700

$7.08

11

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

12

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

13

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

17

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59649.

98079-59679

$5.80

17

SPARK PLUG (W27ESR-V) (DENSO)

98079-59659

$2.54

17

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59669.

98079-59679

$5.80

17

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80
