Partiron

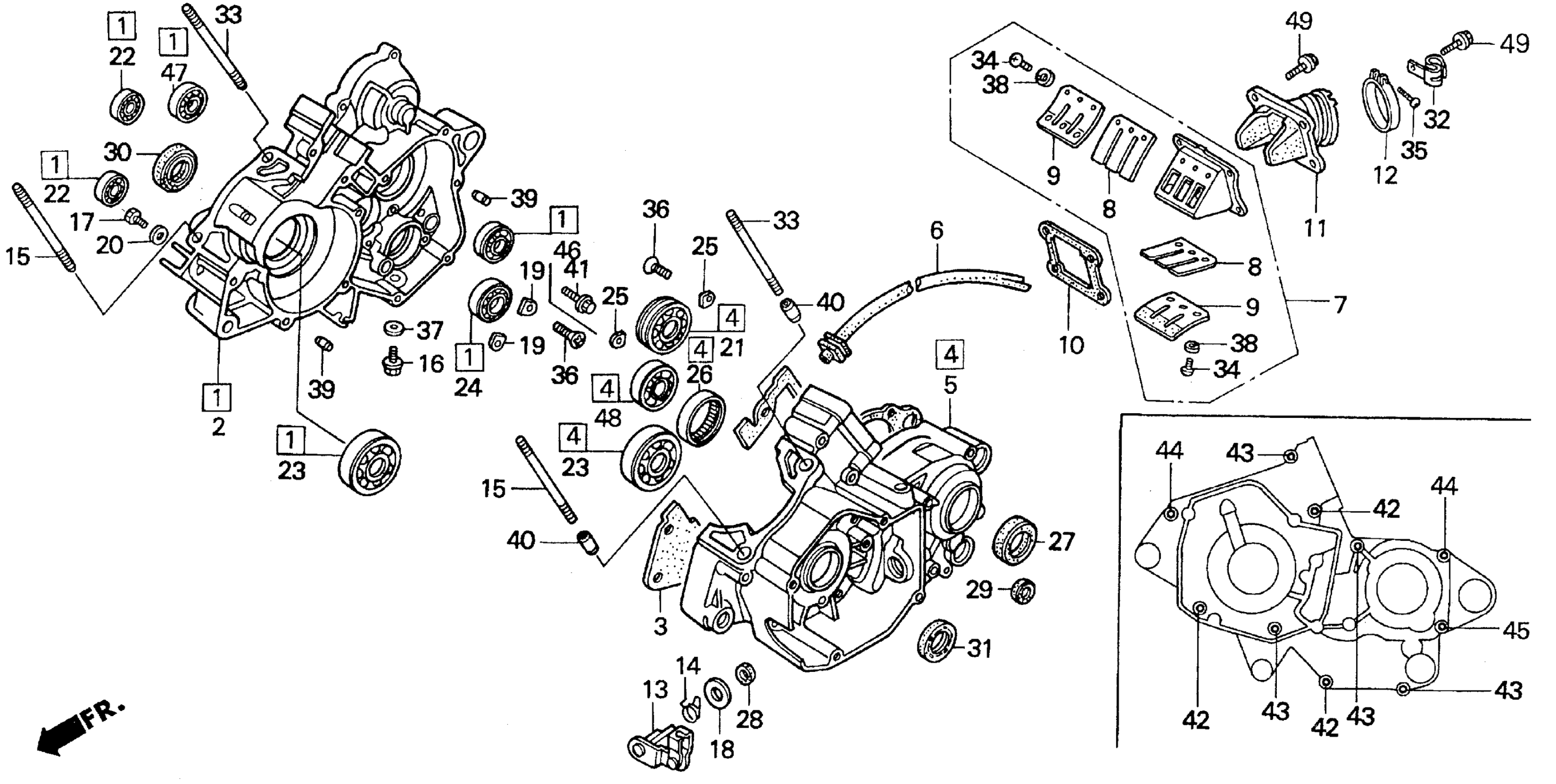

Honda CR125RA (97) MOTORCYCLE, JPN, VIN# JH2JE010-VM800001 CRANKCASE Diagram

#

Description
Price

2

CRANKCASE, R.

11100-KZ4-B00

Unavailable

3

GASKET, CRANKCASE

11191-KZ4-620

$22.41

5

CRANKCASE, L.

11200-KZ4-B00

Unavailable

6

TUBE, BREATHER

11211-ML3-910

$8.08

7

VALVE ASSY., REED

14100-KZ4-890

Unavailable

8

REED VALVE

14111-KZ4-003

Unavailable

9

STOPPER, REED VALVE

14121-KZ4-861

$9.07

10

GASKET, REED VALVE

14132-KZ4-620

$5.96

11

INSULATOR, CARBURETOR

16221-KZ4-A10

Unavailable

12

BAND, INSULATOR

16223-KA4-740

Unavailable

13

LIFTER, CLUTCH

22810-KS6-700

$59.84

15

BOLT, STUD (8X35) This part replaces 90012-KZ4-700.

90015-MR1-000

$5.09

15

BOLT, STUD (8X35)

90015-MR1-000

$5.09

16

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.04

17

BOLT, RECESSED (6X10)

92301-06010-0A

$0.71

19

PLATE A, BEARING SETTING

23521-KW3-000

Unavailable

20

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

21

BEARING, BALL (6204)

91001-KA3-711

$26.93

22

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-005.

91002-KA4-003

$19.46

23

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$21.88

23

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$21.88

23

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$21.88

24

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$24.72

24

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$24.72

25

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.54

26

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.05

27

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$10.21

28

OIL SEAL (10X17X4) This part replaces 91201-VB3-802.

91206-VA3-J02

$1.86

28

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$1.86

28

OIL SEAL (10X17X4) This part replaces 91202-KA3-712.

91206-VA3-J02

$1.86

29

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.55

29

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.55

29

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

30

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$13.72

31

OIL SEAL (20X32X7) (NOK)

91205-166-004

$15.61

32

CLIP, WIRE HARNESS

91406-657-671

$8.21

33

BOLT, STUD (8X35)

92900-08035-3E

$2.04

34

SCREW, PAN (3X6)

93500-03006-0H

$0.75

35

SCREW, PAN (5X25)

93500-05025-0A

$0.86

36

SCREW, FLAT (6X12)

93600-06012-0A

$0.90

37

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

38

WASHER, SPRING (3MM)

94111-03800

$0.59

39

PIN, DOWEL (8X14)

94301-08140

$2.04

40

PIN, DOWEL (10X16)

94301-10160

$2.24

41

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

42

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

43

BOLT, FLANGE (6X50)

96001-06050-00

$1.97

44

BOLT, FLANGE (6X75)

96001-06075-00

$2.03

45

BOLT, FLANGE (6X85)

96001-06085-00

$2.64

46

BEARING, RADIAL BALL (6003)

96100-60030-00

$8.40

47

BEARING, RADIAL BALL (20X42X11) (KOYO)

91004-KZ4-A11

$21.22

48

BEARING, RADIAL BALL (6003U)

96140-60030-00

$13.19

49

BOLT, FLANGE (6X22)

96300-06022-00

$1.28
