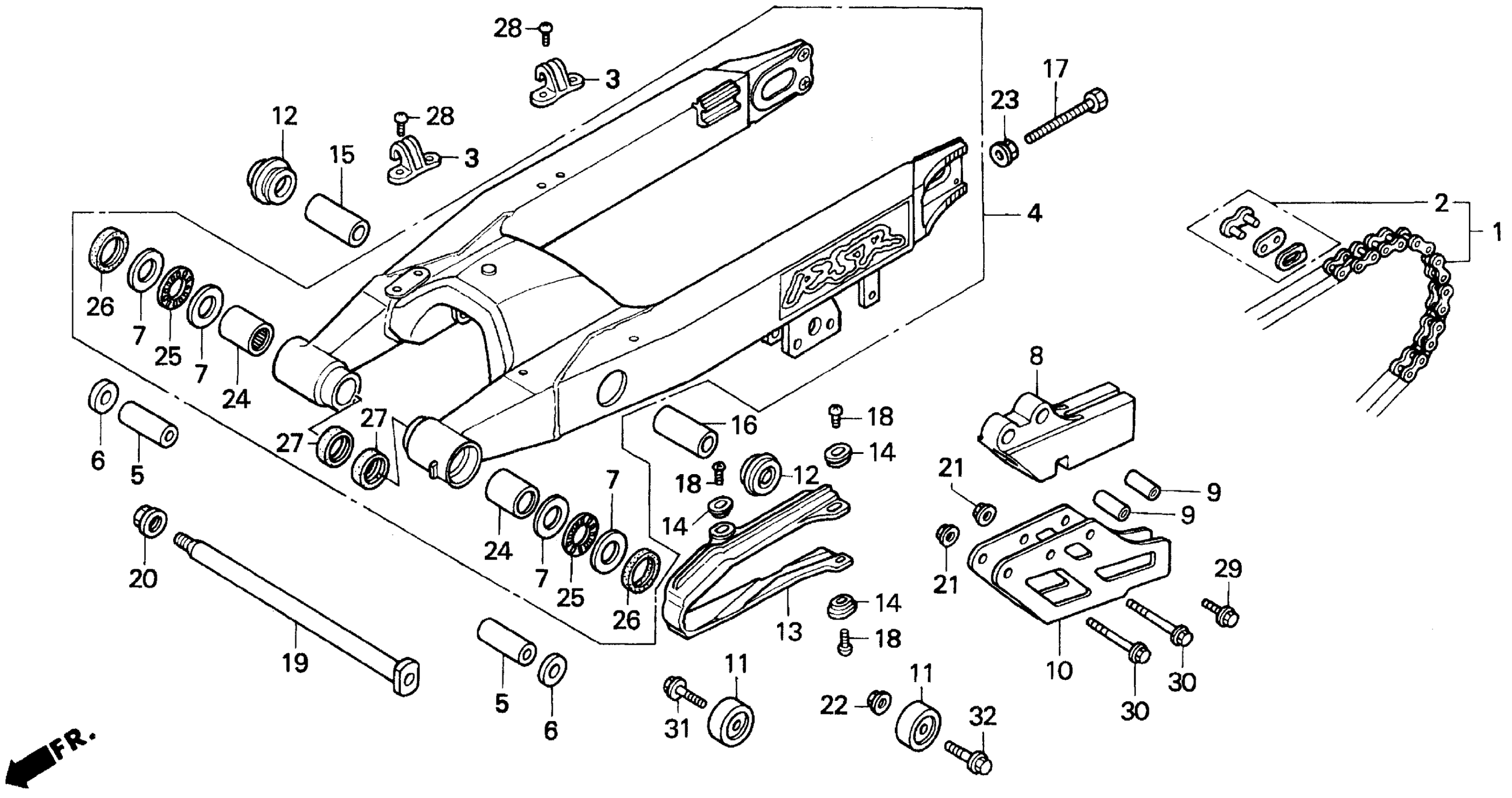

Honda CR125RA (96) MOTORCYCLE, JPN, VIN# JH2JE010-TM700001 SWINGARM 93-96 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-731.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-732.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA4-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (RK520KZ6-RJ) (114L) (RK EXCEL) This part replaces 40530-MAC-682.

40530-KZ3-B02

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

2

MASTER LINK (TAKASAGO) This part replaces 40531-MAC-682.

40531-KA4-731

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

4

SWINGARM ASSY., RR.

52100-KZ4-A10

Unavailable

5

COLLAR, SWINGARM SIDE (54MM) This part replaces 52141-KZ4-890.

52142-KZ4-J40

$16.91

6

COLLAR, SWINGARM SIDE

52142-KZ3-860

Unavailable

7

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

8

GUIDE, CHAIN

52146-ML3-911

$29.04

9

COLLAR, CHAIN GUIDE

52148-ML3-910

Unavailable

10

PLATE, CHAIN GUIDE

52156-ML3-910

$58.87

11

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

12

CAP, RR. SWINGARM PIPE

52161-KS7-831

$5.04

13

SLIDER, CHAIN

52170-KZ3-601

Unavailable

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

17

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

18

SCREW, PAN (5X8)

90115-KV3-700

$2.61

19

BOLT, SWINGARM

90117-KZ3-861

Unavailable

20

NUT, RR. SWINGARM PIVOT

90301-KS7-830

$11.52

21

NUT, U (6MM)

90301-473-003

$4.07

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

NUT, HEX. (8MM)

90309-357-000

$3.40

24

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

25

BEARING, NEEDLE THRUST

91072-KZ3-861

$13.46

26

DUST SEAL (30X37X4)

91253-KZ3-861

$8.68

27

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.92

28

SCREW, PAN (5X8)

93500-05008-0A

$1.49

29

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

29

BOLT, FLANGE (6X12) This part replaces 96400-06012-00.

96300-06012-00

$1.49

30

BOLT, FLANGE (6X50)

96400-06050-00

$2.23

31

BOLT, FLANGE (8X35)

96400-08035-00

$1.51

32

BOLT, FLANGE (8X55)

96400-08055-00

Unavailable
