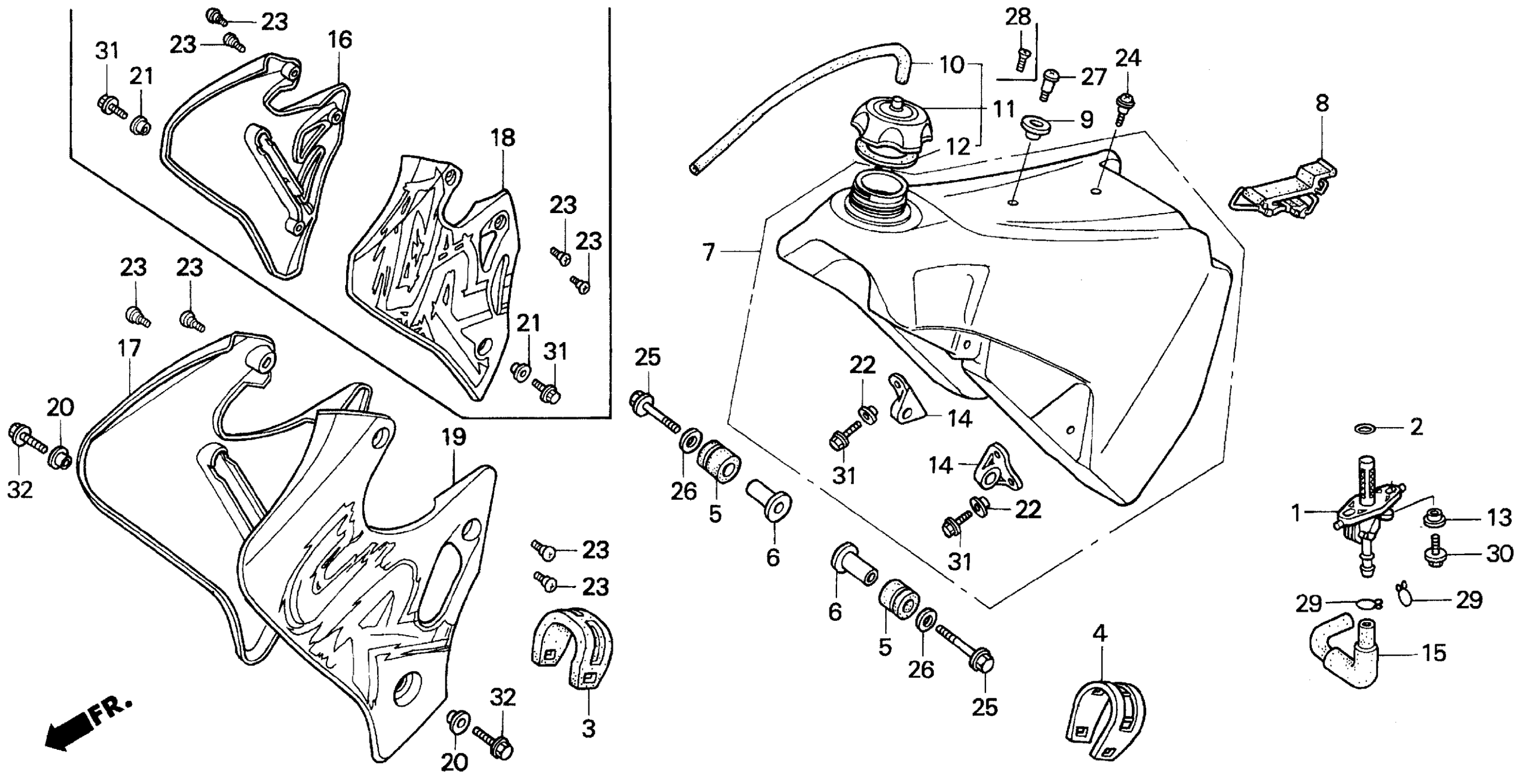

Honda CR125RA (94) MOTORCYCLE, JPN, VIN# JH2JE010-RM500008 TO JH2JE010-RM503009 FUEL TANK 93-97 Diagram

PETCOCK ASSY.

16950-ML3-911

$51.08

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER B, FUEL TANK SETTING

17506-ML3-680

$23.97

RUBBER, RR. FUEL TANK

17506-KS7-700

Unavailable

RUBBER, TANK MOUNTING This part replaces 17508-KS6-700.

17508-GBF-830

$5.90

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KS6-700

$9.13

TANK, FUEL *NH138* (SHASTA WHITE)

17510-KZ3-860ZA

Unavailable

BAND, RR. TANK

17516-KS6-700

Unavailable

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

FUEL FILL CAP ASSY.

17620-ML3-600

$38.43

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

TUBE, FUEL

17681-KZ4-890

Unavailable

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KZ4-710ZA

Unavailable

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KZ4-710ZA

Unavailable

COLLAR (6X23)

19509-KA3-730

$6.99

COLLAR

84706-415-000

$2.23

SCREW, SPECIAL (5MM)

90102-GT4-000

$2.66

SCREW, PAN (5X13)

90108-MN0-000

$1.70

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

WASHER, FENDER MOUNTING

90506-430-000

$2.92

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
