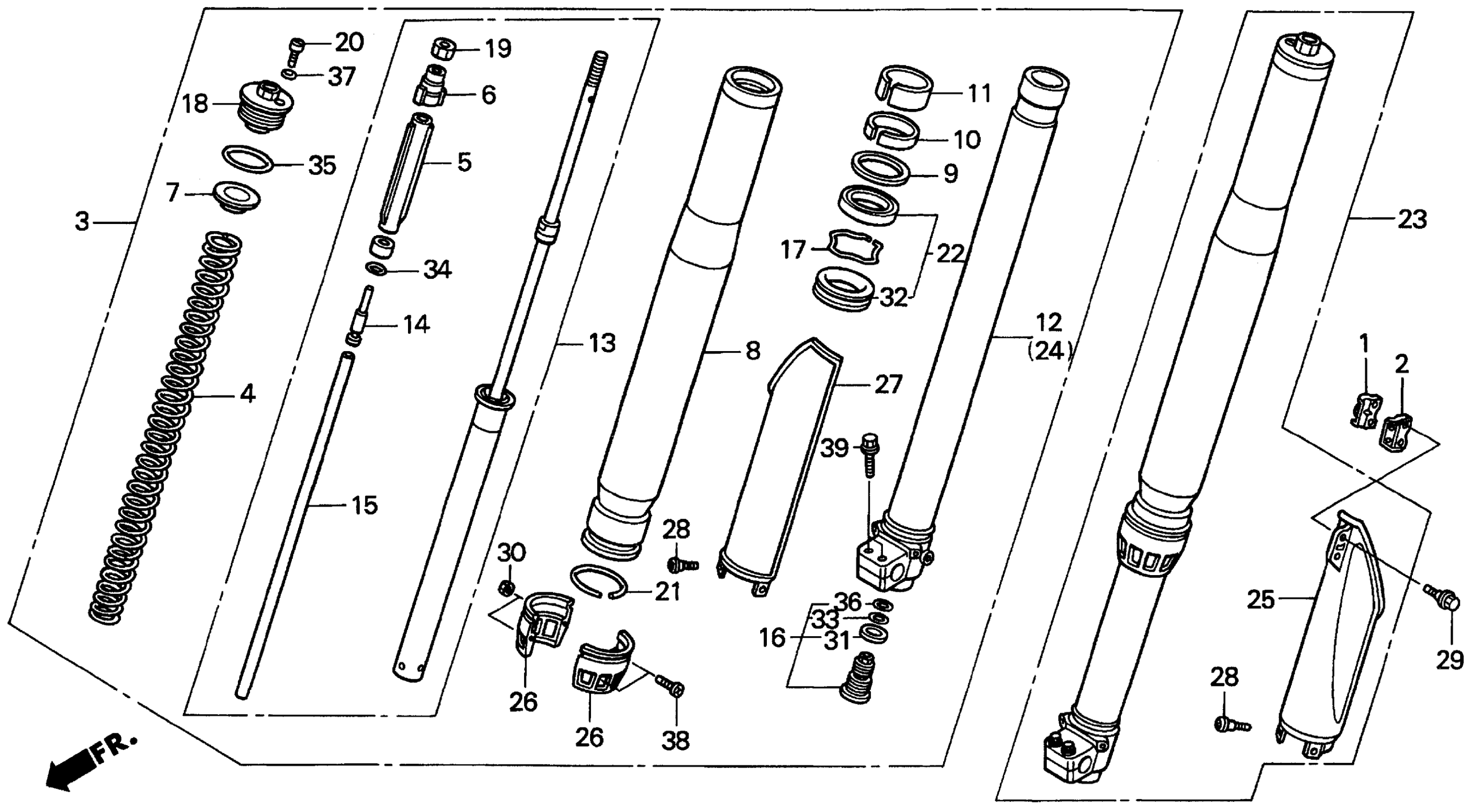

Honda CR125RA (94) MOTORCYCLE, JPN, VIN# JH2JE010-RM500008 TO JH2JE010-RM503009 FRONT FORK 94 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR.

51400-KZ4-761

Unavailable

4

SPRING, FR. FORK (0.38)

51401-KZ4-711

Unavailable

4

SPRING, FR. FORK (0.41) (NOT AVAILABLE) | (Optional).

51403-KZ4-711

Unavailable

5

GUIDE, SPRING

51404-KZ4-711

Unavailable

6

COLLAR

51405-KZ4-711

Unavailable

7

SEAT, SPRING

51408-KZ4-711

Unavailable

8

TUBE (OUTER)

51410-KZ4-711

Unavailable

9

RING, BACK-UP

51412-KZ4-711

Unavailable

10

BUSH, GUIDE

51414-KZ4-711

Unavailable

11

BUSH, SLIDER This part replaces 51415-KZ4-711.

51415-KZ4-712

$13.80

12

PIPE, R. SLIDE

51425-KZ4-711

Unavailable

13

DAMPER, FR.

51430-KZ4-305

Unavailable

14

PLUNGER

51436-KZ4-711

Unavailable

15

COLLAR, REBOUND NEEDLE

51437-KZ4-711

Unavailable

16

BOLT, CENTER

51441-KZ4-305

Unavailable

17

RING, OIL SEAL STOP

51447-KZ4-711

$5.04

18

BOLT ASSY., FR. FORK

51450-KZ4-711

Unavailable

19

NUT, LOCK

51451-KZ3-711

Unavailable

20

BOLT, PLUG

51456-KZ4-711

Unavailable

21

RING, WEAR

51476-KZ4-711

$7.62

22

SEAL SET, FR. FORK

51490-KZ4-305

$45.84

23

FORK ASSY., L. FR.

51500-KZ4-761

Unavailable

24

PIPE, L. SLIDE

51525-KZ4-711

Unavailable

25

PROTECTOR, L. FR. FORK *R177R* (NUCLEAR RED) This part replaces 51610-ML3-600.

51610-ML3-600ZB

Unavailable

25

PROTECTOR, L. FR. FORK *R177R* (NUCLEAR RED)

51610-ML3-600ZB

Unavailable

26

GUIDE, PROTECTOR

51611-KZ4-710

Unavailable

27

PROTECTOR, R. FR. FORK This part replaces 51620-ML3-600.

51620-ML3-601ZA

Unavailable

27

PROTECTOR, R. FR. FORK This part replaces 51620-ML3-600ZB.

51620-ML3-601ZA

Unavailable

28

BOLT, DISK (6X13)

90106-KZ3-000

$4.69

29

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

30

NUT, U (3MM)

90173-KZ4-711

Unavailable

31

WASHER, SPECIAL

90544-KZ4-711

Unavailable

32

DUST SEAL

91254-KZ4-711

Unavailable

33

O-RING (21.8X2.4)

91256-KZ4-711

$6.09

34

O-RING (12.3X2.4)

91257-KZ4-711

$2.70

35

O-RING (39.7X3.5)

91258-KZ4-711

$9.05

36

O-RING (19.5X1.5)

91259-KZ4-711

Unavailable

37

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

38

SCREW, PAN (3X10)

93500-03010-0A

$1.49

38

SCREW, PAN (3X10) This part replaces 93500-03010-1A.

93500-03010-0A

$1.49

39

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

39

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28
