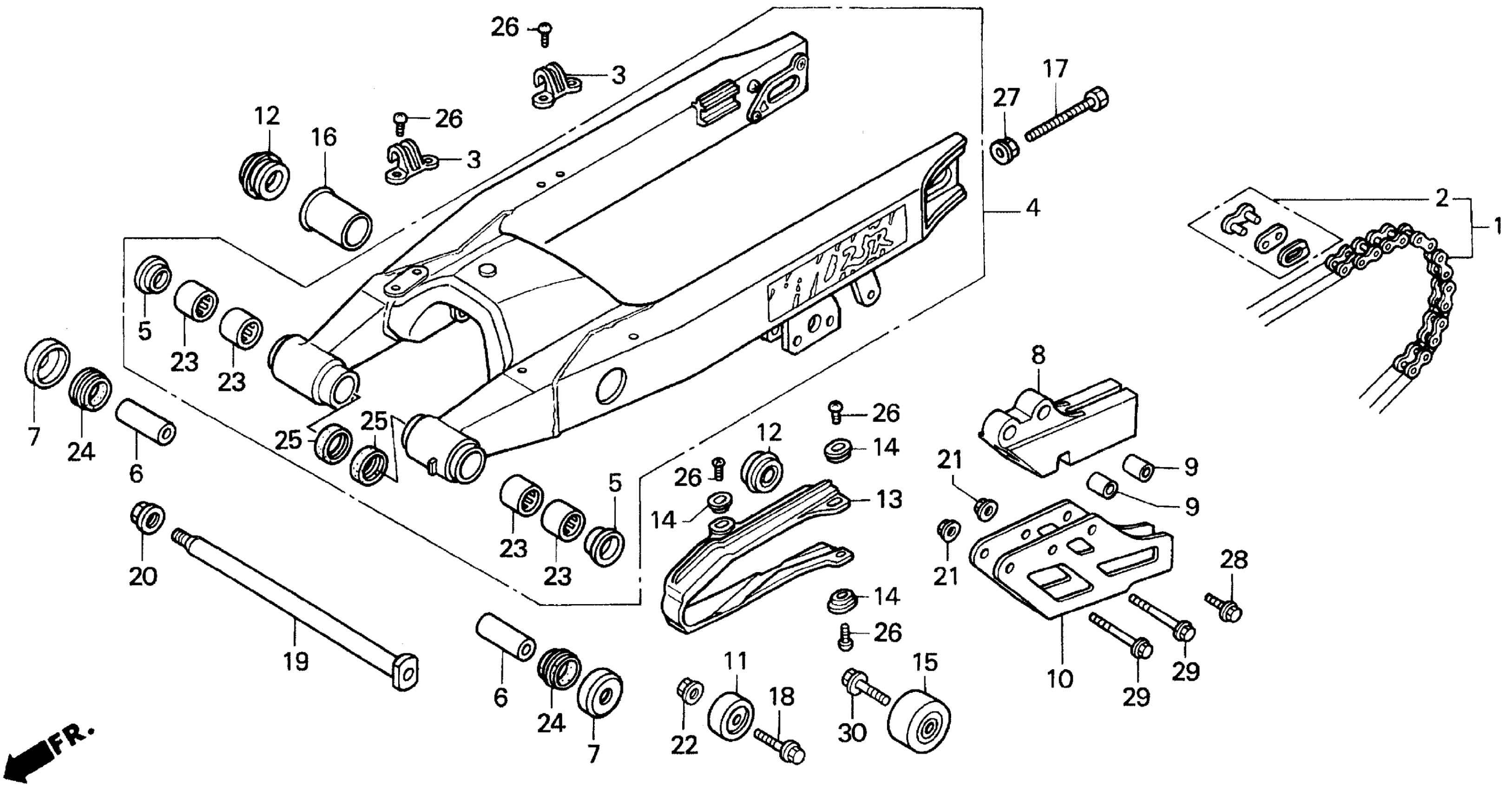

Honda CR125RA (92) MOTORCYCLE, JPN, VIN# JH2JE010-NM300006 TO JH2JE010-NM302172 SWINGARM 91-92 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KS6-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40532-KA3-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KZ4-810.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KZ4-820.

405W3-KA5-505

Unavailable

2

MASTER LINK (DAIDO)

40531-KA3-831

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KS6-831

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

4

SWINGARM ASSY. (TYPE1) (WL)

52000-KZ4-860ZA

Unavailable

5

BUSH, PIVOT THRUST

52109-KS7-830

Unavailable

6

COLLAR, RR. SWINGARM

52141-KS7-830

Unavailable

7

CAP, DUST SEAL

52144-KS7-831

Unavailable

8

GUIDE, CHAIN

52146-ML3-791

Unavailable

10

PLATE, CHAIN GUIDE

52156-ML3-790

Unavailable

11

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

12

CAP, RR. SWINGARM PIPE

52161-KS7-831

$5.04

13

SLIDER, CHAIN

52170-KZ3-701

$75.02

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

15

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

16

COLLAR, GUIDE

52190-KS7-830

Unavailable

17

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

18

BOLT, FLANGE (8X62)

90113-HB3-000

Unavailable

19

BOLT, RR. SWINGARM

90117-KS7-831

$53.97

20

NUT, RR. SWINGARM PIVOT

90301-KS7-830

$11.52

21

NUT, U (6MM)

90301-473-003

$4.07

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

BEARING, NEEDLE (22X28X20)

91071-KS7-831

Unavailable

24

DUST SEAL (34X38.8X8)

91253-KS7-831

Unavailable

25

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

NUT, HEX. (8MM)

90309-357-000

$3.40

28

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

28

BOLT, FLANGE (6X12) This part replaces 96400-06012-00.

96300-06012-00

$1.49

29

BOLT, FLANGE (6X50)

96400-06050-00

$2.23

30

BOLT, FLANGE (8X35)

96400-08035-00

$1.51
