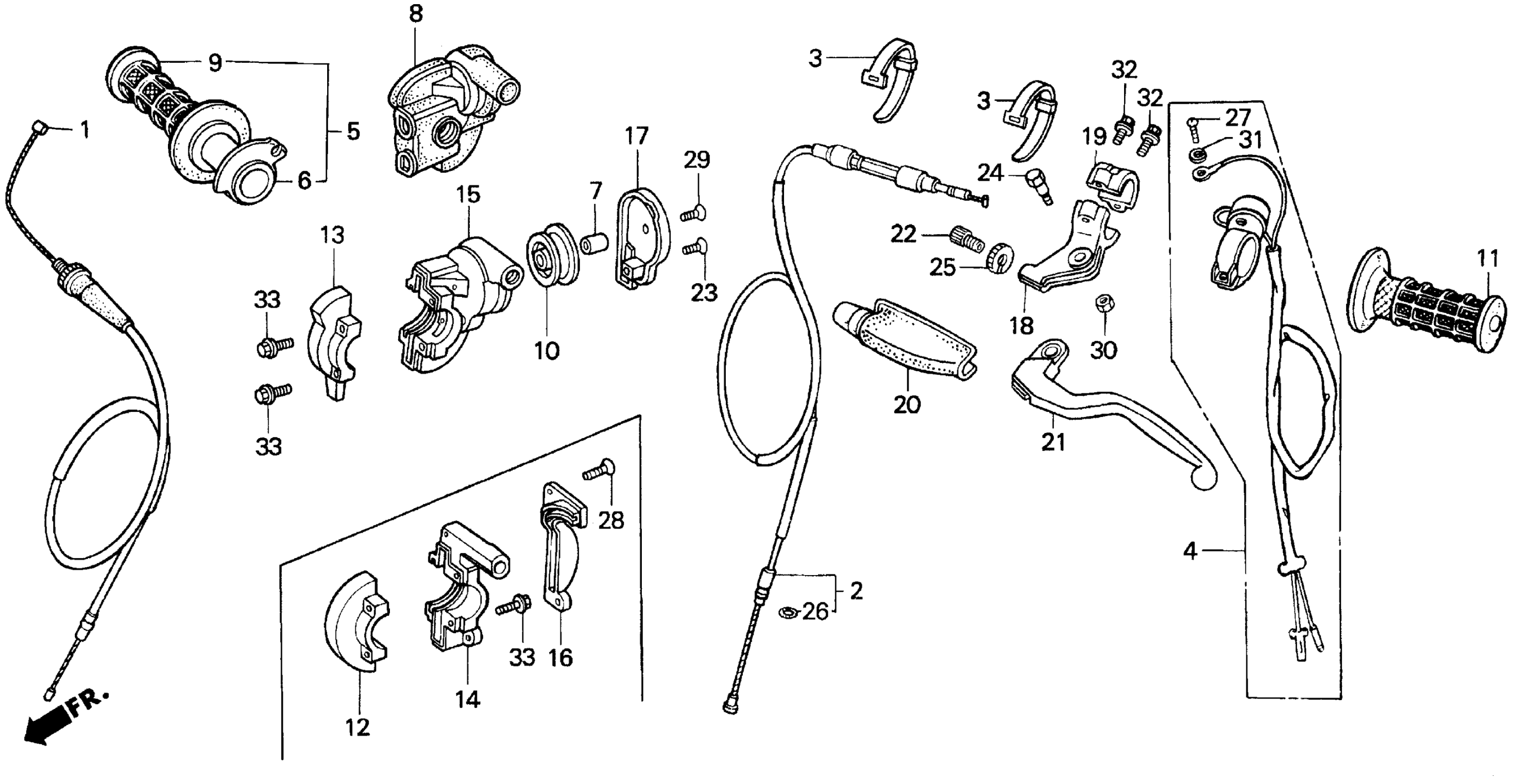

Honda CR125RA (92) MOTORCYCLE, JPN, VIN# JH2JE010-NM300006 TO JH2JE010-NM302172 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KZ4-730

Unavailable

2

CABLE, CLUTCH

22870-KZ4-P00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KZ4-730.

22870-KZ4-P00

Unavailable

3

BAND B1, WIRE

32161-404-000

$2.23

4

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

6

PIPE, THROTTLE GRIP

53141-KZ4-000

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

11

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

12

HOUSING A, GRIP

53167-KS6-000

Unavailable

14

HOUSING B, GRIP

53168-KS6-000

Unavailable

16

COVER B, HOUSING

53169-ML3-790

Unavailable

18

BRACKET, L. HANDLEBAR

53172-KA3-730

$38.78

19

HOLDER, L. LEVER BRACKET

53174-KA3-730

$23.53

20

COVER, L. HANDLE LEVER

53177-430-000

$11.00

21

CONTROL LEVER, L. HANDLEBAR

53178-KA3-840

$29.80

22

BOLT, CLUTCH WIRE ADJUSTING

53192-KA3-700

$14.07

24

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

25

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

25

NUT, FIXING

90321-KF0-000

$9.76

26

O-RING (5.8X1.9)

91357-KA4-004

$2.48

27

SCREW, PAN (4X12)

93500-04012-0A

$1.49

28

SCREW, OVAL (4X10)

93700-04010-0G

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

WASHER, SPRING (4MM)

94111-04000

$1.49

32

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

33

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
