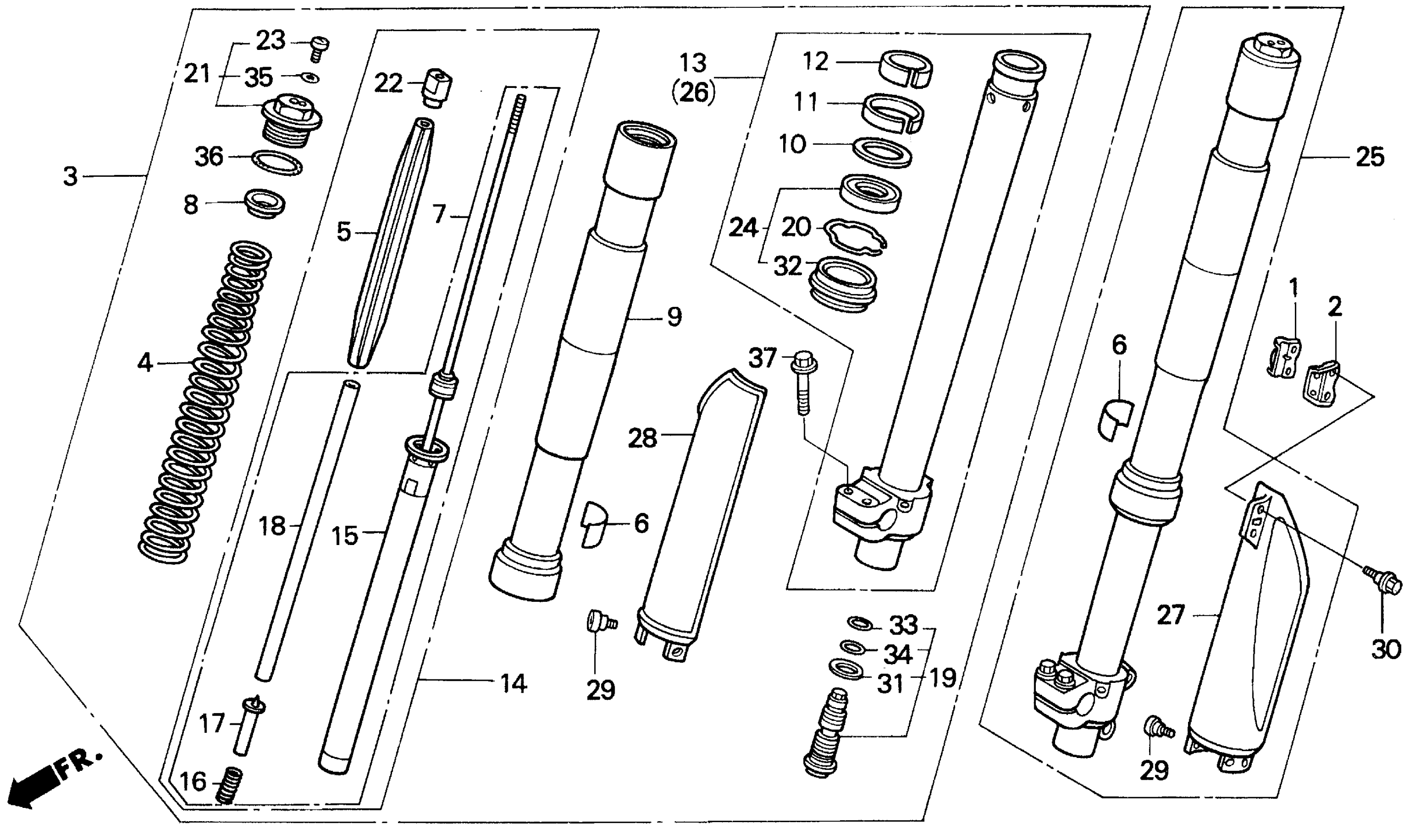

Honda CR125RA (92) MOTORCYCLE, JPN, VIN# JH2JE010-NM300006 TO JH2JE010-NM302172 FRONT FORK 92-93 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. (SHOWA)

51400-KZ4-681

Unavailable

4

SPRING, FR. FORK (3.53N/MM,0.36KGF/MM) (SHOWA)

51401-KZ4-681

Unavailable

4

SPRING, FR. FORK (3.73N/MM,0.38KGF/MM) (SHOWA) | (Optional).

51401-ML3-791

Unavailable

4

SPRING, FR. FORK (3.33N/MM,0.34KGF/MM) (SHOWA) | (Optional).

51402-KZ4-841

Unavailable

5

GUIDE, SPRING (SHOWA)

51404-ML3-791

Unavailable

6

LABEL

51405-ML3-911

Unavailable

7

DAMPER SUB (SHOWA)

51407-KZ4-861

Unavailable

8

SEAT, SPRING (SHOWA)

51408-KZ3-731

Unavailable

9

PIPE, FR. FORK

51410-ML3-791

Unavailable

10

RING, BACK-UP

51412-KA4-711

$9.65

11

BUSH, GUIDE

51414-ML3-791

$23.21

12

BUSH, SLIDER

51415-ML3-791

$15.46

13

PIPE, R. SLIDE (SHOWA)

51420-ML3-791

Unavailable

19

BOLT, CENTER (SHOWA)

51441-ML3-791

$106.31

20

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

21

BOLT ASSY., FR. FORK (SHOWA)

51450-ML3-791

Unavailable

22

NUT, LOCK (SHOWA)

51451-KZ3-731

Unavailable

23

BOLT, PLUG

51456-KZ3-731

$9.59

24

SEAL SET, FR. FORK

51490-ML3-305

$38.49

25

FORK ASSY., L. FR. (SHOWA)

51500-KZ4-681

Unavailable

26

PIPE, L. SLIDE (SHOWA)

51520-ML3-791

Unavailable

27

PROTECTOR, L. FR. FORK *R177R* (NUCLEAR RED) This part replaces 51610-ML3-790.

51610-ML3-600ZB

Unavailable

27

PROTECTOR, L. FR. FORK *R177R* (NUCLEAR RED)

51610-ML3-600ZB

Unavailable

28

PROTECTOR, R. FR. FORK

51620-ML3-601ZA

Unavailable

28

PROTECTOR, R. FR. FORK This part replaces 51620-ML3-790.

51620-ML3-601ZA

Unavailable

29

BOLT, DISK (6X13)

90106-KZ3-000

$4.69

30

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

31

WASHER, SPECIAL (SHOWA)

90544-ML3-791

Unavailable

32

DUST SEAL

91254-ML3-791

$16.10

33

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

34

O-RING (21.9X2) (SHOWA)

91256-ML3-791

$4.26

35

O-RING (2.8X1.9)

91301-KZ3-731

$2.02

36

O-RING (44.2X2.4) (SHOWA)

91356-ML3-791

Unavailable

37

BOLT, FLANGE (8X40)

96300-08040-00

$2.13
