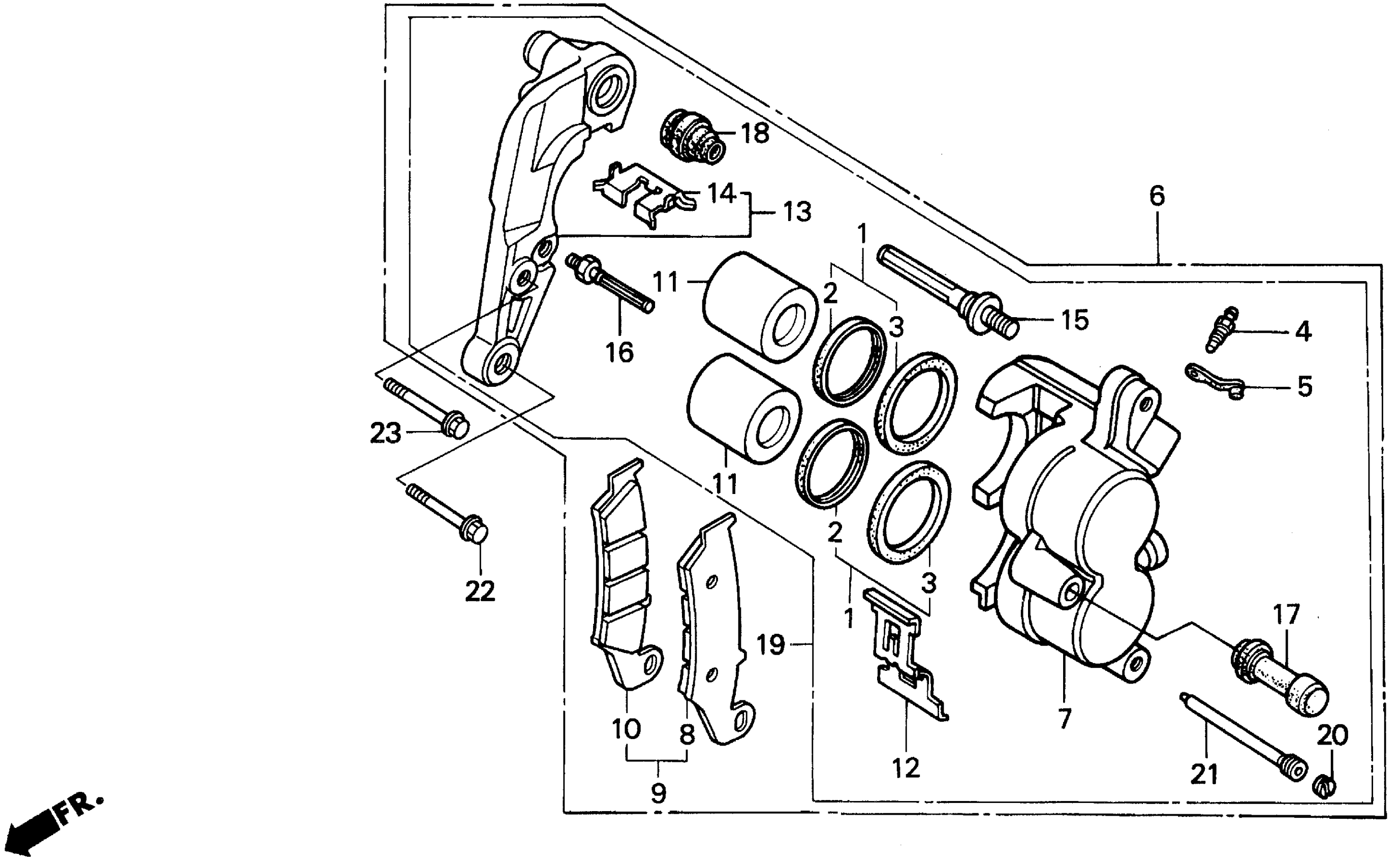

Honda CR125RA (92) MOTORCYCLE, JPN, VIN# JH2JE010-NM300006 TO JH2JE010-NM302172 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR. BRAKE This part replaces 451A0-KS6-670.

45105-KZ1-405

$39.07

NI

PAD SET, FR. BRAKE

45105-KZ1-405

$39.07

1

SEAL SET, PISTON

06431-MA3-405

$7.33

4

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

5

CAP, BLEEDER

43353-461-771

$5.05

6

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-ML3-791.

45100-ML3-792

Unavailable

6

CALIPER ASSY., L. FR. (NISSIN)

45100-ML3-792

Unavailable

7

BODY, L. FR. CALIPER This part replaces 45101-ML3-791.

45101-ML3-792

Unavailable

7

BODY, L. FR. CALIPER

45101-ML3-792

Unavailable

8

PAD (A) (NISSIN) (SEE KIT P/N--END OF BLOCK)

45105-KS6-831

Unavailable

10

PAD (B) (NISSIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45106-KS6-831

Unavailable

11

PISTON

45107-KS6-702

$55.47

12

SPRING, PAD This part replaces 45108-HA5-671.

45108-MY1-006

$10.74

12

SPRING, PAD This part replaces 45108-MY6-671.

45108-MY1-006

$10.74

12

SPRING, PAD

45108-MY1-006

$10.74

13

BRACKET, L. FR.

45110-ML3-791

Unavailable

14

RETAINER

45112-KS6-701

$6.08

15

BOLT A, PIN

45131-HA5-672

$15.44

16

BOLT, PIN

45131-166-016

$7.63

17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

18

BOOT B

45133-MA3-006

$5.46

20

PLUG, PIN

45203-MG3-016

$5.12

21

PIN, HANGER

45215-HA5-672

$10.63

22

BOLT, FLANGE (8X44)

90154-KZ3-000

$4.94

22

BOLT, FLANGE (8X44) This part replaces 90154-KZ3-730.

90154-KZ3-000

$4.94

23

BOLT, FLANGE (8X50)

90155-KZ3-000

$7.10

23

BOLT, FLANGE (8X50) This part replaces 90155-KZ3-730.

90155-KZ3-000

$7.10
