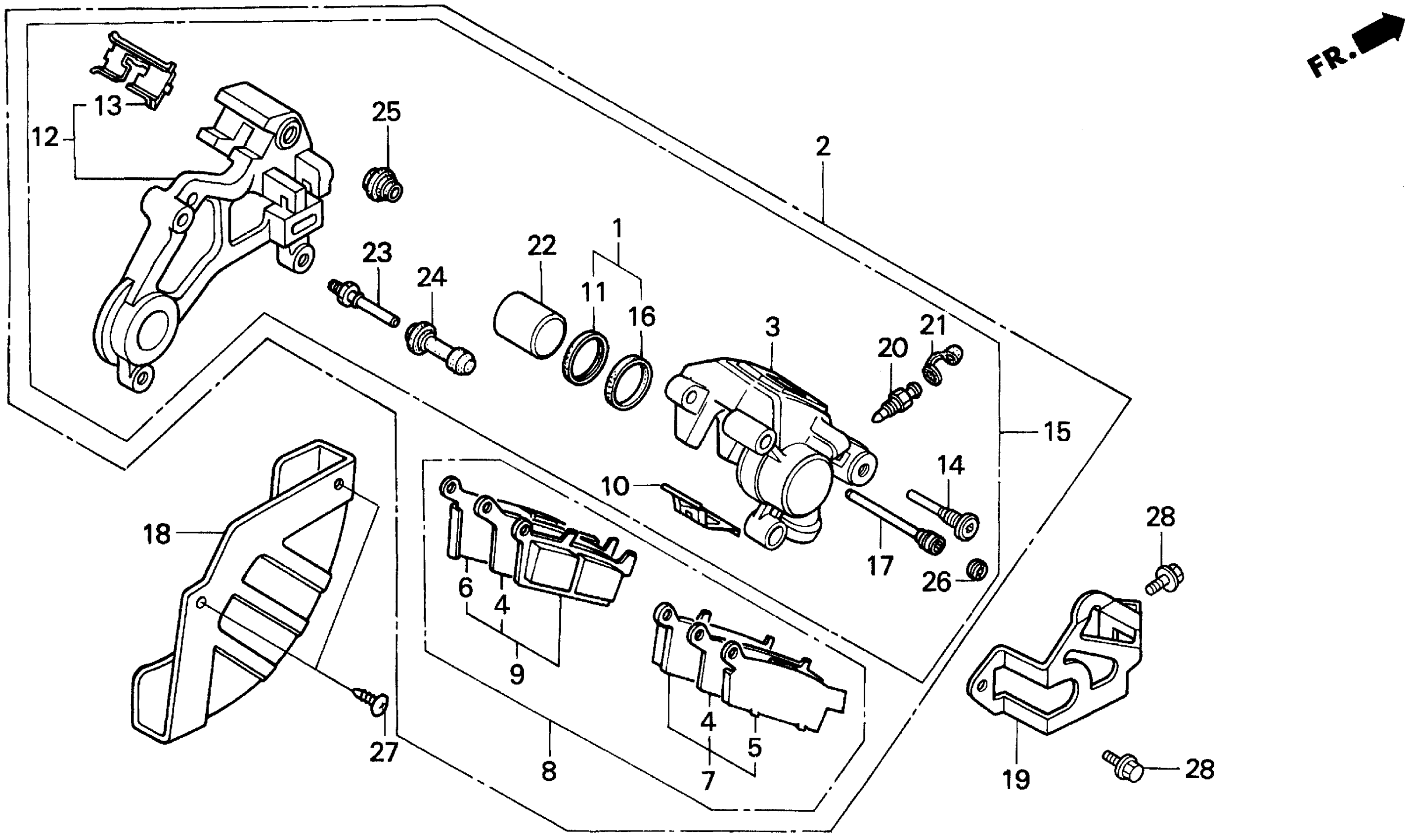

Honda CR125RA (91) MOTORCYCLE, JPN, VIN# JH2JE010-MM200008 TO JH2JE010-MM202551 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, RR. BRAKE This part replaces 431A0-KS6-710.

43105-KZ1-415

$34.31

NI

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$34.31

2

CALIPER ASSY., RR. (NISSIN)

43100-ML3-911

Unavailable

3

BODY, RR. CALIPER

43101-ML3-911

Unavailable

4

INSULATOR

43102-KS6-701

Unavailable

5

RETAINER A, PAD

43103-KS6-702

Unavailable

6

RETAINER B, PAD

43104-KS6-702

Unavailable

7

PAD A (SEE KIT P/N--END OF BLOCK)

43105-KS6-702

Unavailable

9

PAD B (SEE KIT P/N--END OF BLOCK)

43106-KS6-702

Unavailable

10

SPRING, PAD This part replaces 43108-KS6-701.

43108-MY6-671

$5.04

10

SPRING, PAD

43108-MY6-671

$5.04

11

DUST SEAL

43109-MA3-006

$5.49

12

BRACKET, RR.

43110-KS6-831

Unavailable

13

RETAINER

43112-KS6-701

$5.80

14

BOLT, PIN

43131-KW3-006

$9.48

16

SEAL, PISTON

43209-MA3-006

$6.72

17

PIN, HANGER

43215-ML3-911

$10.74

18

COVER, RR. DISK

43330-KS6-700

$23.41

19

GUARD, RR. CALIPER

43340-KS6-831

Unavailable

20

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

21

CAP, BLEEDER

43353-461-771

Unavailable

22

PISTON

45107-ML4-006

$34.77

23

BOLT, PIN

45131-166-016

$7.28

24

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

25

BOOT B

45133-MA3-006

$5.21

26

PLUG, PIN

45203-MG3-016

$4.88

27

SCREW, SPECIAL (6X10)

90101-KS6-700

$2.34

28

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

28

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

Unavailable
