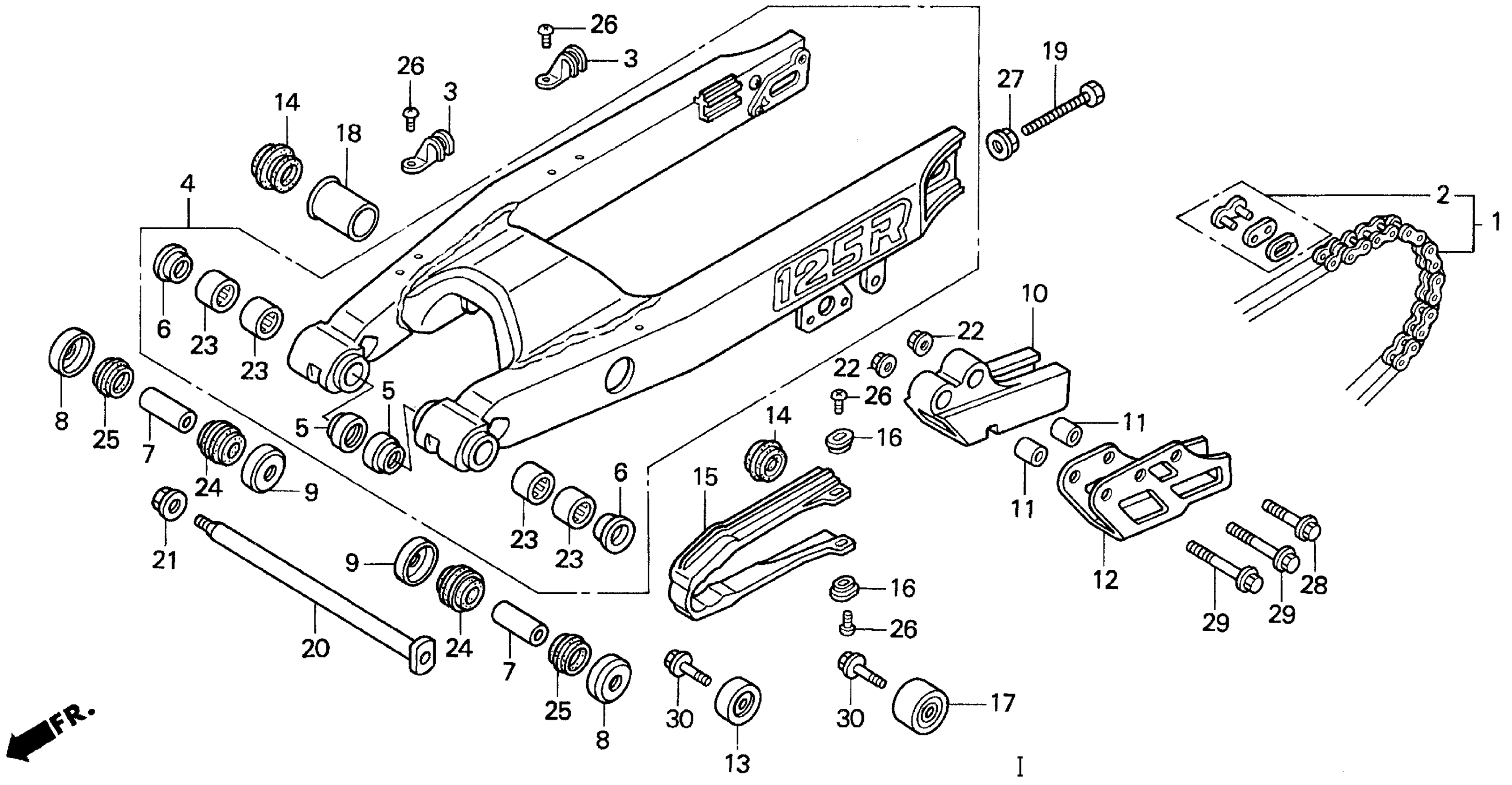

Honda CR125RA (90) MOTORCYCLE, JPN, VIN# JH2JE010-LM100013 TO JH2JE010-LM103521 SWINGARM 90 Diagram

#

Description
Price

1

CHAIN, DRIVE CHAIN, DRIVE (520DS.6-114)

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KS6-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40532-KA3-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KZ4-810.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KZ4-820.

405W3-KA5-505

Unavailable

2

MASTER LINK (DAIDO) MASTER LINK (TAKASAGO)

40531-KA3-831

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KS6-831

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

4

SWINGARM ASSY., RR. (WL)

52000-KZ4-700

Unavailable

5

BUSH, PIVOT THRUST (IN.)

52108-KZ4-701

Unavailable

6

BUSH, PIVOT THRUST

52109-KS7-830

Unavailable

7

COLLAR, SWINGARM PIVOT

52141-KZ4-700

Unavailable

8

CAP, DUST SEAL

52144-KS7-831

Unavailable

9

CAP, DUST SEAL

52144-KZ4-700

Unavailable

10

GUIDE, CHAIN

52146-ML3-911

$29.04

11

COLLAR, CHAIN GUIDE

52148-ML3-910

Unavailable

12

PLATE, CHAIN GUIDE

52156-ML3-910

$58.87

13

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

14

CAP, RR. SWINGARM PIPE

52161-KS7-831

$5.04

15

SLIDER, CHAIN

52170-KS7-830

$42.10

16

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

17

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

18

COLLAR, GUIDE

52190-KS7-830

Unavailable

19

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

20

BOLT, RR. SWINGARM

90117-KS7-831

$53.97

21

NUT, RR. SWINGARM PIVOT

90301-KS7-830

$11.52

22

NUT, U (6MM)

90301-473-003

$4.07

23

BEARING, NEEDLE (22X28X20)

91071-KS7-831

Unavailable

24

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

24

DUST SEAL DUST SEAL (32X36.8X8) (NOK)

91253-KA4-701

$12.86

24

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

25

DUST SEAL (34X38.8X8)

91253-KS7-831

Unavailable

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

NUT, FLANGE (8MM)

94050-08000

$1.49

28

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

28

BOLT, FLANGE (6X14) This part replaces 96400-06014-00.

96300-06014-00

$1.49

29

BOLT, FLANGE (6X50)

96400-06050-00

$2.23

30

BOLT, FLANGE (8X35)

96400-08035-00

$1.51
