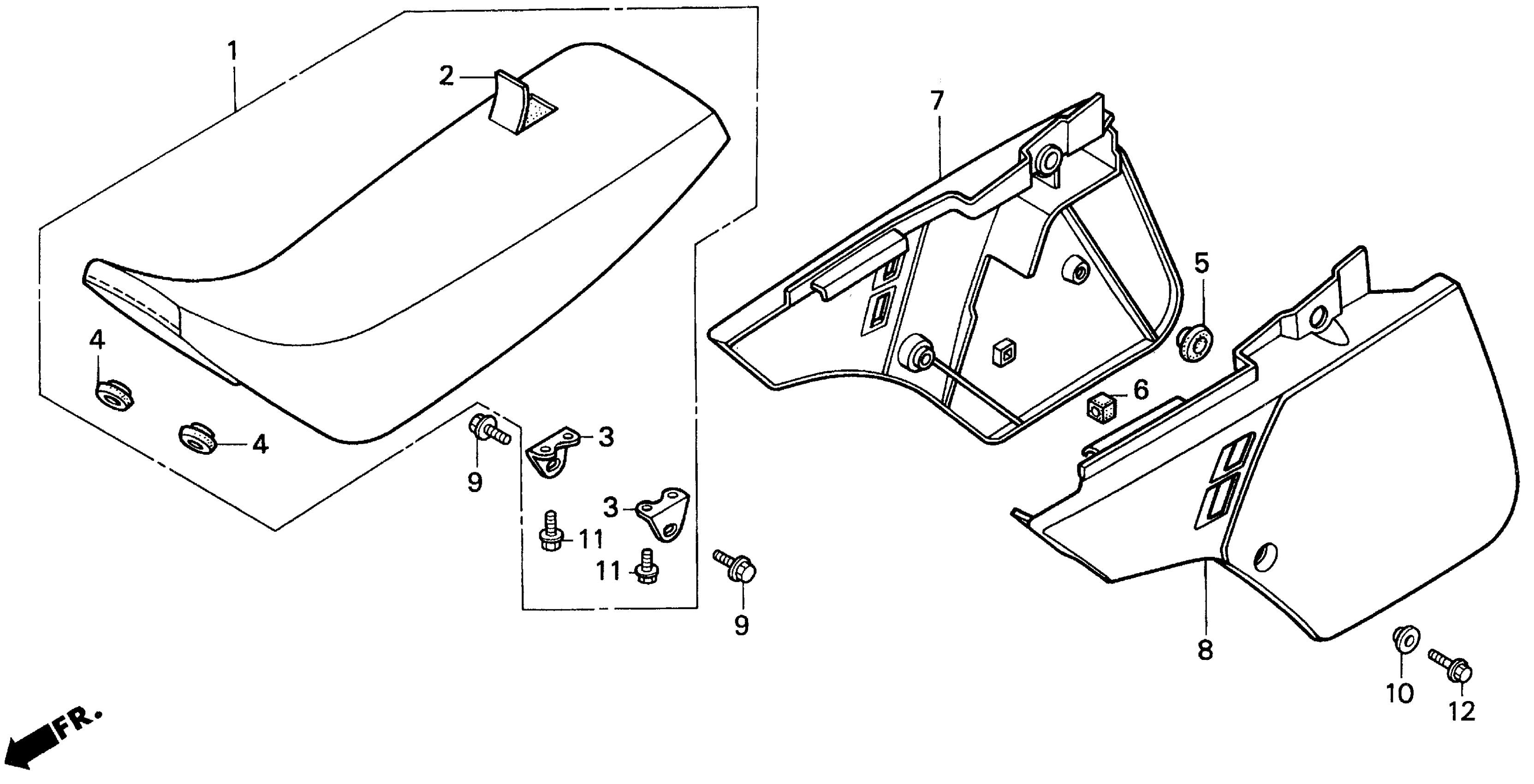

Honda CR125RA (90) MOTORCYCLE, JPN, VIN# JH2JE010-LM100013 TO JH2JE010-LM103521 SEAT 90 Diagram

SEAT (90MM) (NOT AVAILABLE) SEAT (117MM) | (Optional).

77100-KZ4-700

Unavailable

SEAT (117MM)

77100-ML3-910

Unavailable

COVER, SEAT ( 90MM) COVER, SEAT ( 117MM) | (Optional).

77101-KZ4-700

Unavailable

COVER, SEAT ( 117MM)

77101-ML3-910

Unavailable

STAY, RR. SEAT

77105-KA3-830

Unavailable

RUBBER, SEAT MOUNTING

77110-KA3-730

$5.05

RUBBER, SIDE COVER

83512-KA4-700

$4.57

RUBBER, SIDE COVER STOPPER

83515-KS7-830

$4.53

COVER SUB-ASSY., R. SIDE *R119* (FLASH RED) (NOT AVAILABLE)

83520-KS7-831ZB

Unavailable

COVER SUB-ASSY., L. SIDE *R119* (TYPE1) (FLASH RED) (NOT AVAILABLE)

83620-KS6-701ZB

Unavailable

BOLT, FLANGE (8X20) This part replaces 90133-KA3-730.

96300-08020-00

$1.57

BOLT, FLANGE (8X20) BOLT, FLANGE (8X12)

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

WASHER (6.5X5.5)

90505-MA6-000

$2.92

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
